Drive Belt Inspection

  1. Inspect the belt for cracks and damaged. If the belt is cracked or damaged, replace it.
  2. Check that the auto-tensioner indicator (A) is within the standard range (B) as shown. If it is out of the standard range, replace the drive belt (see DRIVE BELT INSPECTION  ).

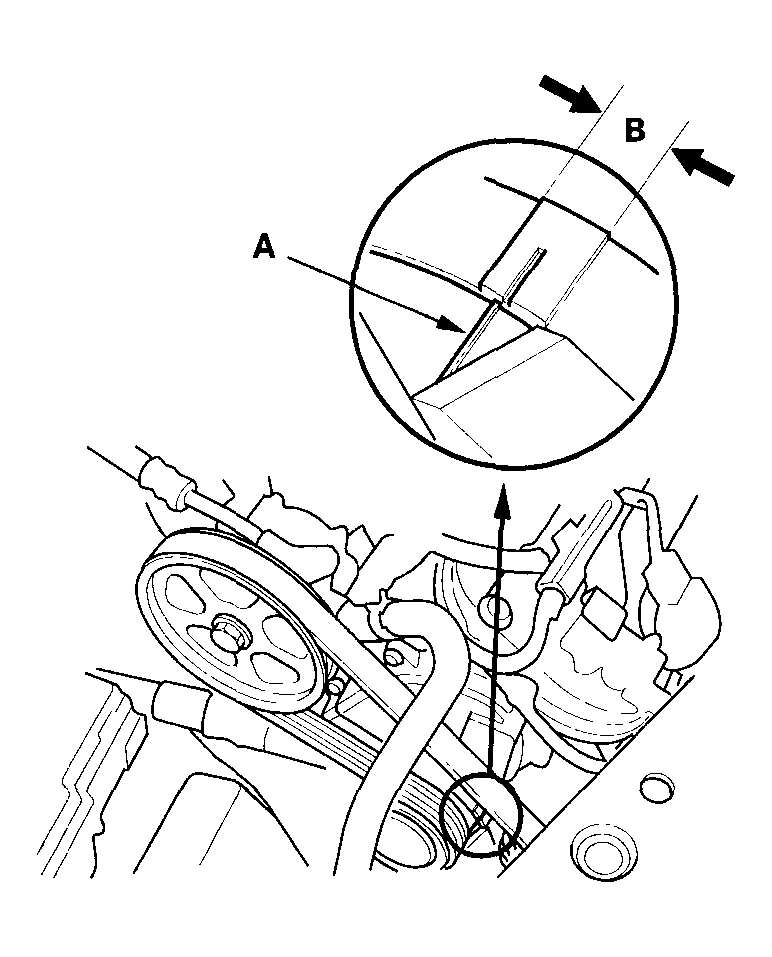

    Fig 1: Identifying Auto-Tensioner Indicator Standard Range
    G04545462Courtesy of AMERICAN HONDA MOTOR CO., INC.
