CMP Sensor Replacement

Remove the timing belt (see TIMING BELT REMOVAL ).
Remove the front camshaft pulley (CMP sensor pulse plate) (A).

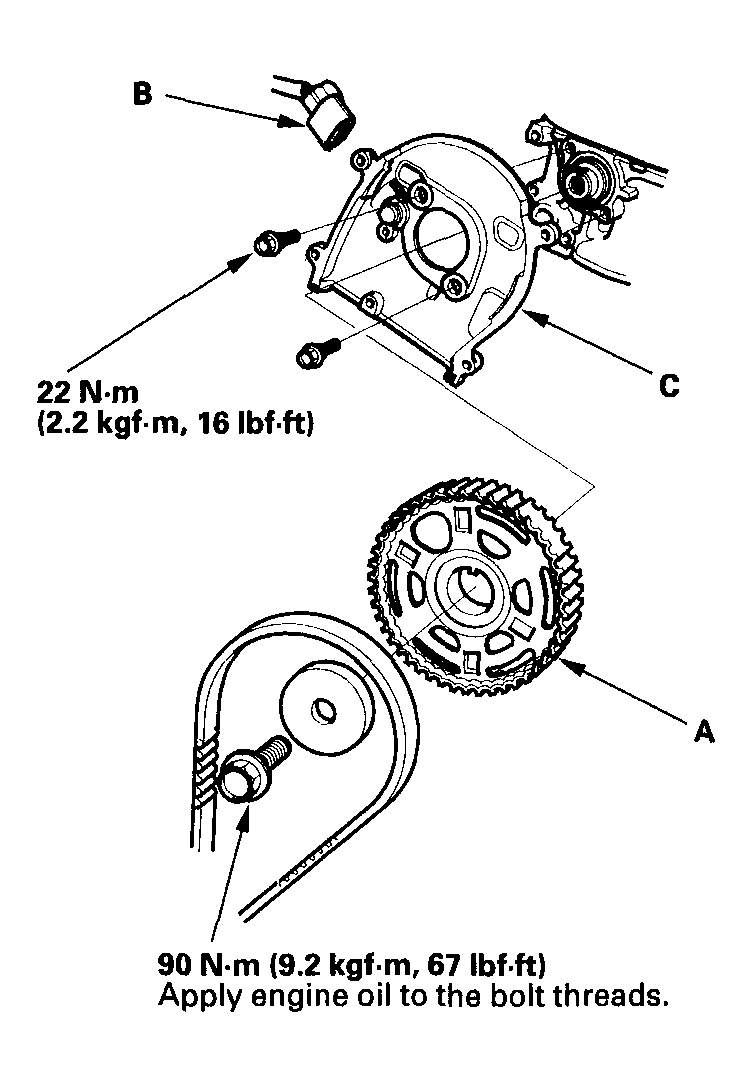

Fig 1: Removing Front Camshaft Pulley (CMP Sensor Pulse Plate)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the CMP sensor Connector (B), then remove the back cover (C).
Remove the CMP sensor (A) from the back cover.

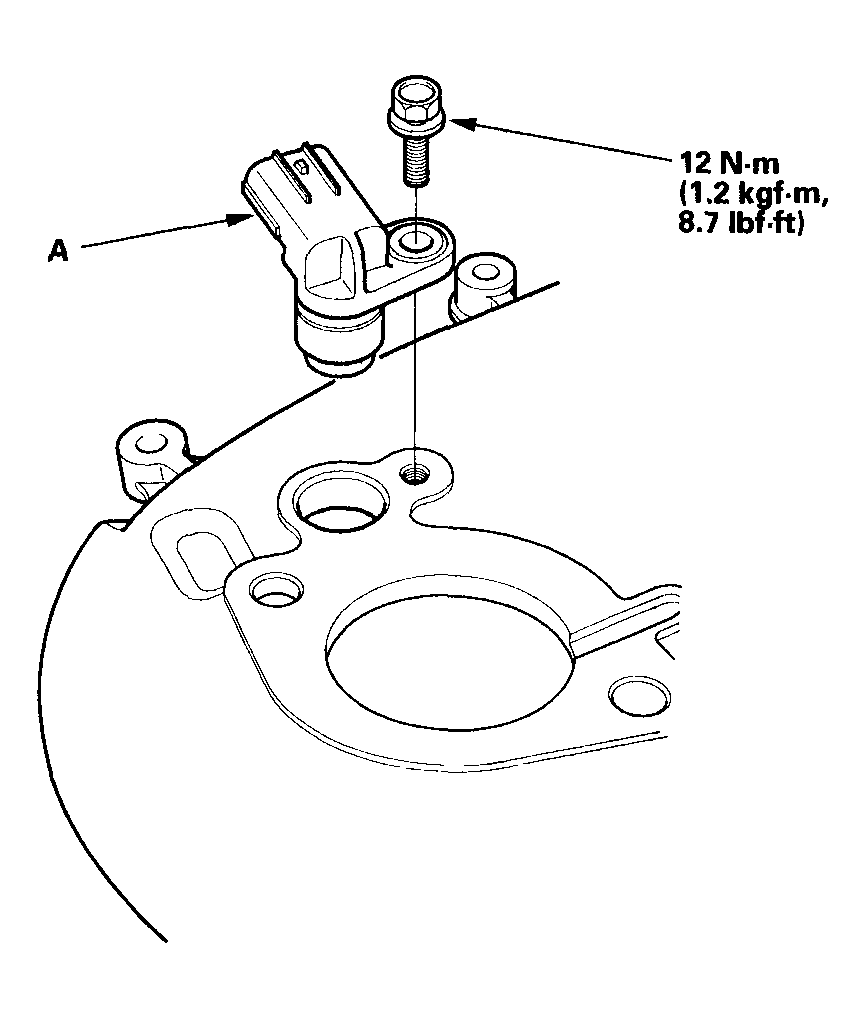

Fig 2: Removing CMP Sensor From Back Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the sensor in the reverse order of removal. Install the timing belt (see TIMING BELT INSTALLATION ).
