Set/Decel, Resume/Accel, Cancel Switch

Cruise Control Set/decel, Resume/accel, Cancel Switch Test/Replacement

1. Remove the driver's airbag.

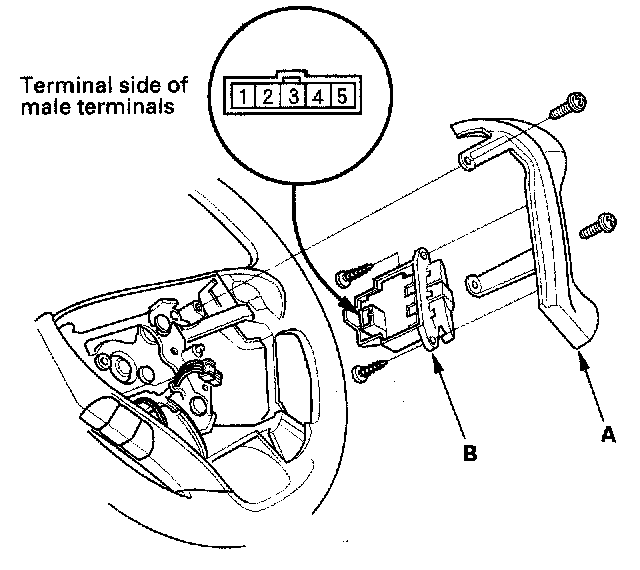

2. Remove the cover (A), then remove the SET/decel, RESUME/accel, CANCEL switch (B).

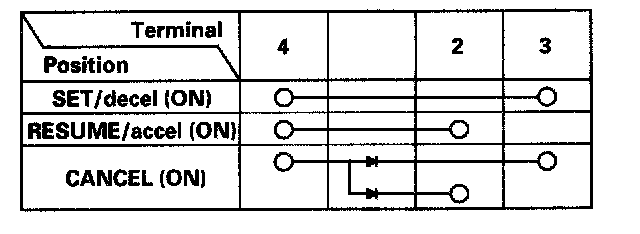

3. Check for continuity between the terminals in each switch position according to the table.
- If there is continuity, and it matches the table, but switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
- If there is no continuity in one or both positions, replace the switch.
