Master Switch

Cruise Control Master Switch Test/Replacement

With VSA System

1. Remove the switch panel.

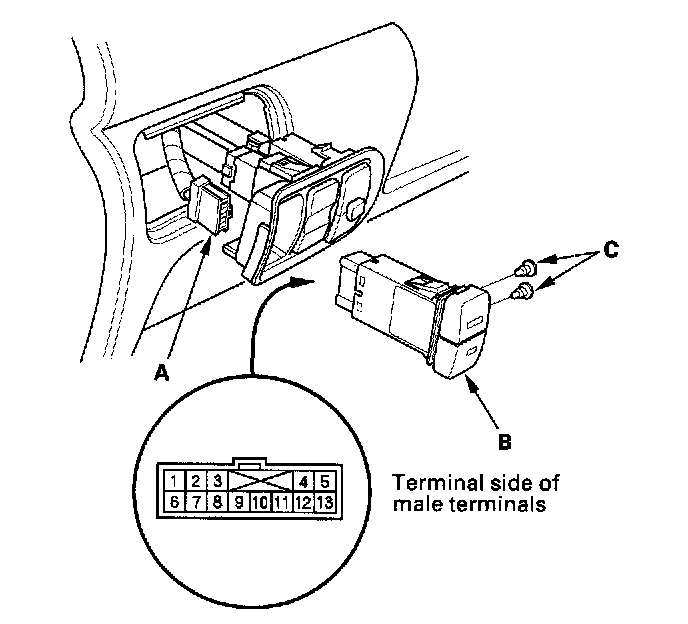

2. Disconnect the 13P connector (A), then release the clips of the cruise control master switch and push the cruise control master switch (B) out of the panel.

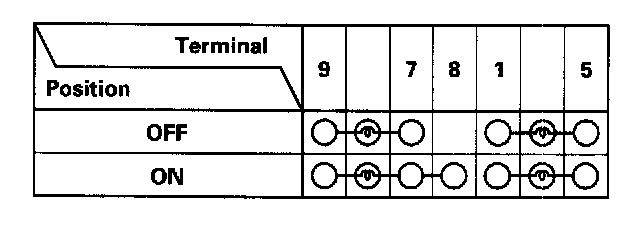

3. Check for continuity between the terminals in each switch position according to the table. If there is no continuity, replace illumination bulbs (C) or the switch.

With ABS System

1. Remove the switch panel.

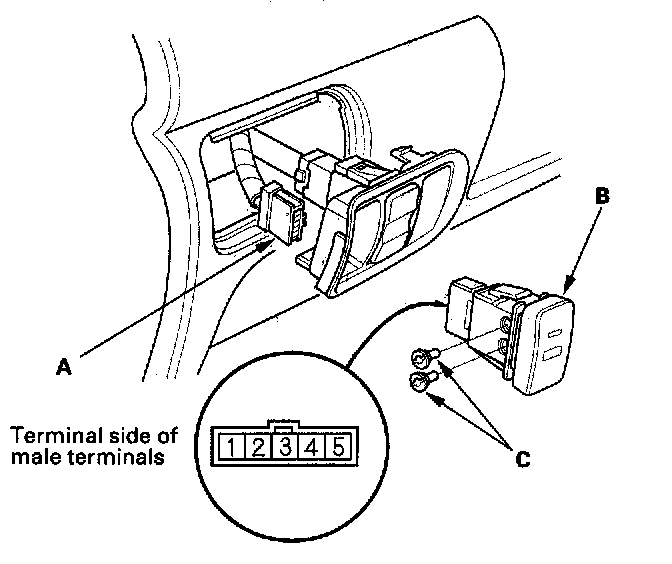

2. Disconnect the 5P connector (A), then release the clips of the cruise control master switch and push the cruise control master switch (B) out of the panel.

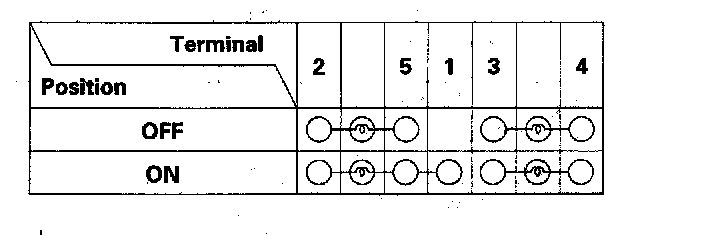

3. Check for continuity between the terminals in each switch position according to the table. If there is no continuity, replace illumination bulbs (C) or the switch.
