Component Tests and General Diagnostics

Cruise Control Input Test

1. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC).
2. Go to B-CAN System Diagnosis Test Mode A and check for DTCs.

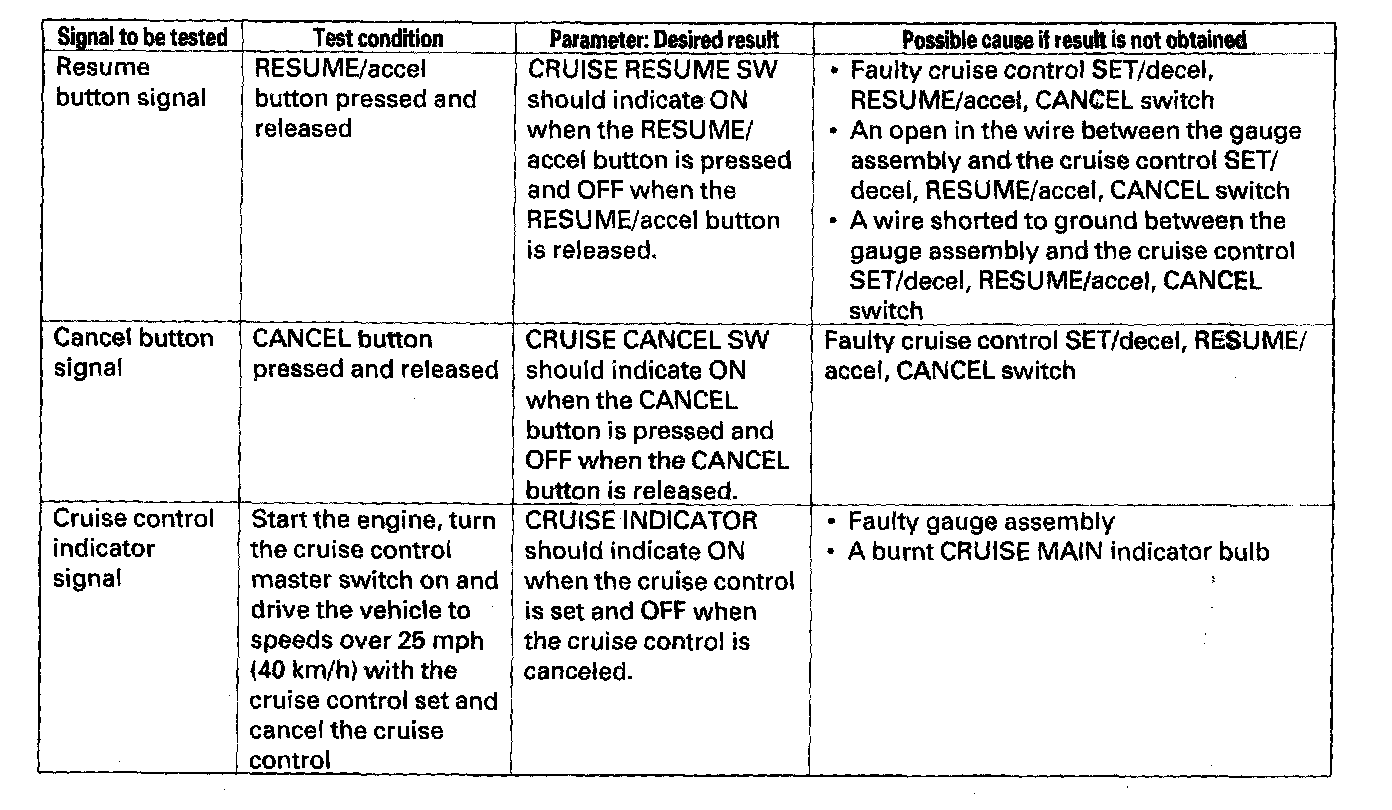

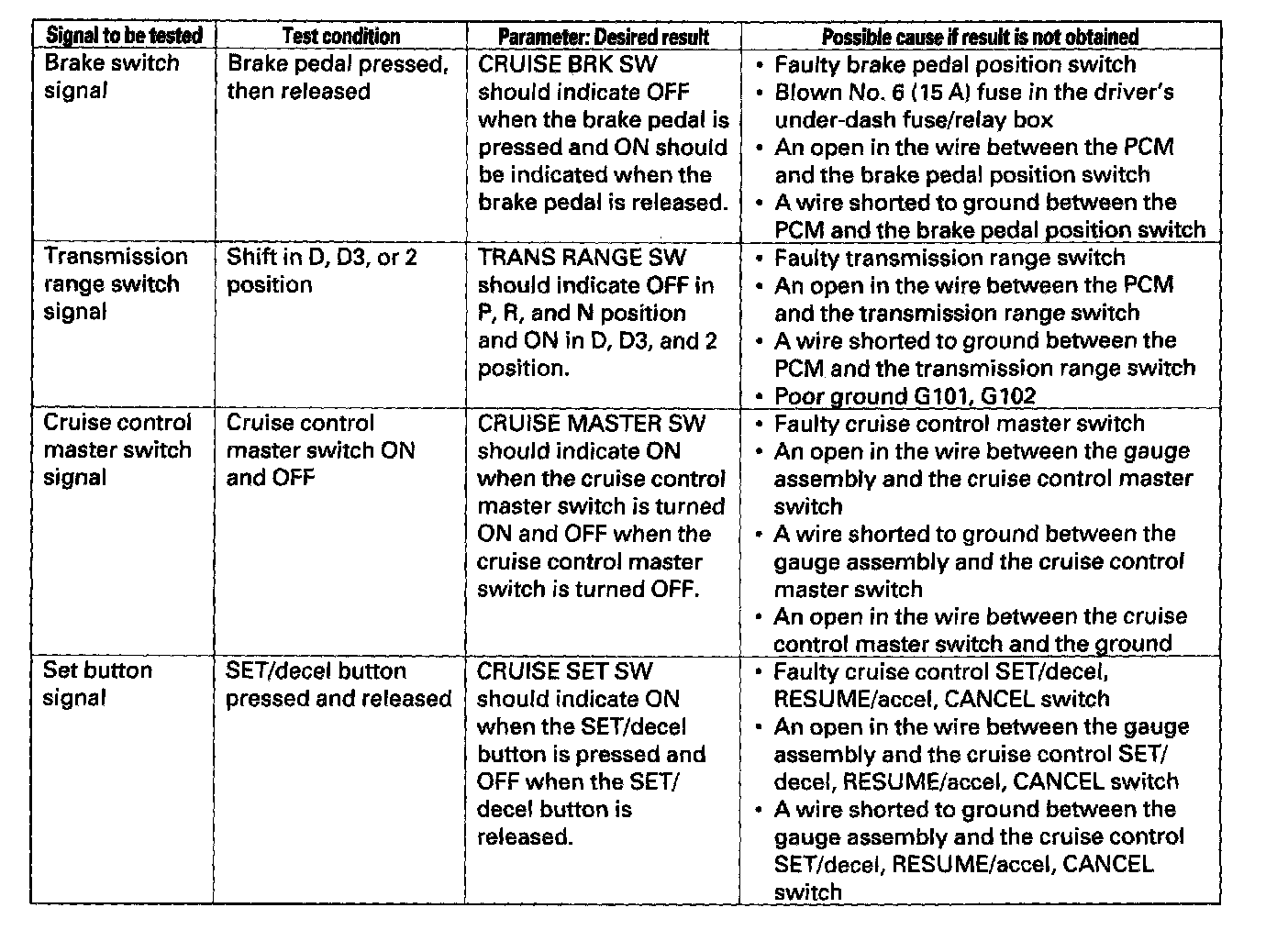

3. Go to PGM-FI and check for DTCs.
4. Turn the ignition switch ON (II).







5. Perform the above tests while monitoring parameters in the PGM-FI DATA LIST with the HDS.
