Power Transistor HVAC

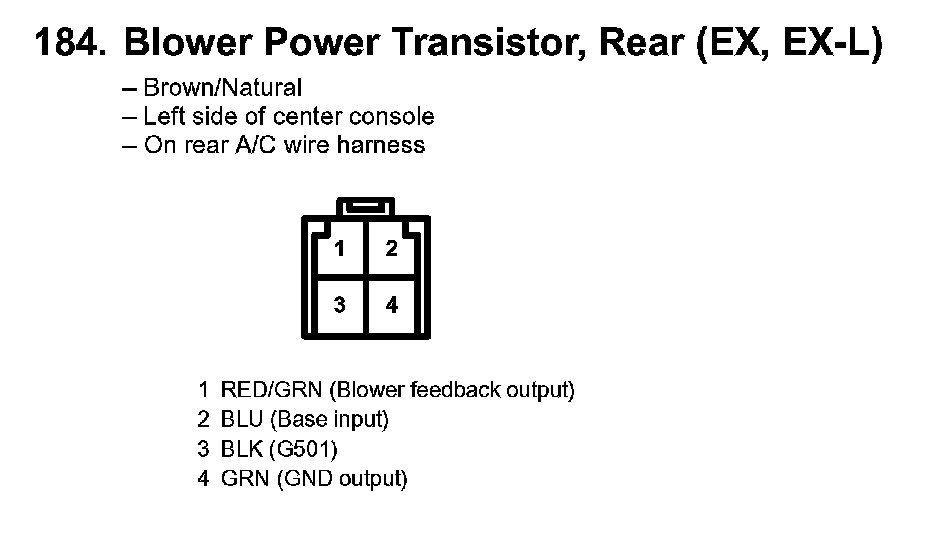

184. Blower Power Transistor, Rear (EX, EX-L):

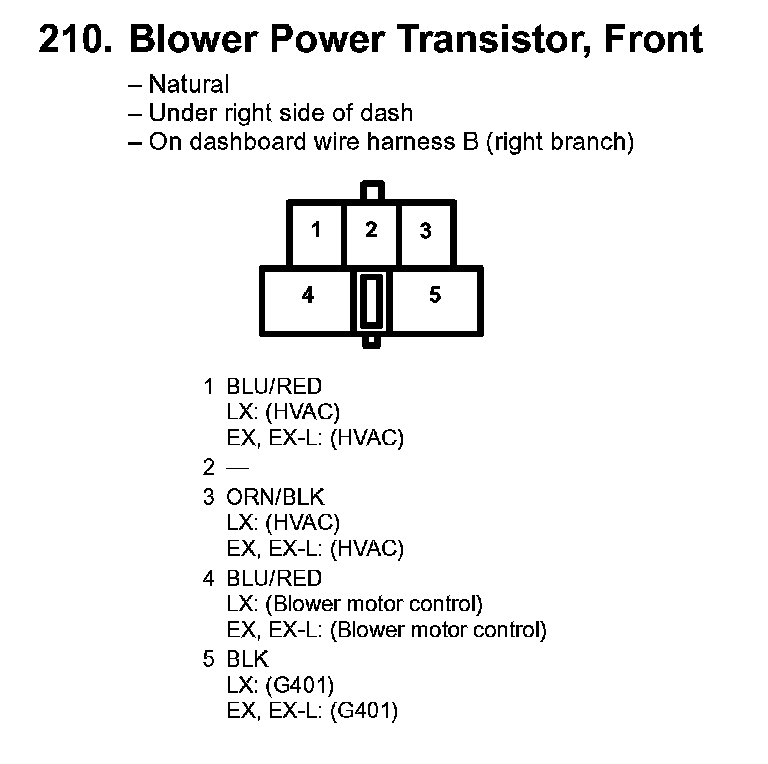

210. Blower Power Transistor, Front:
