System Diagram

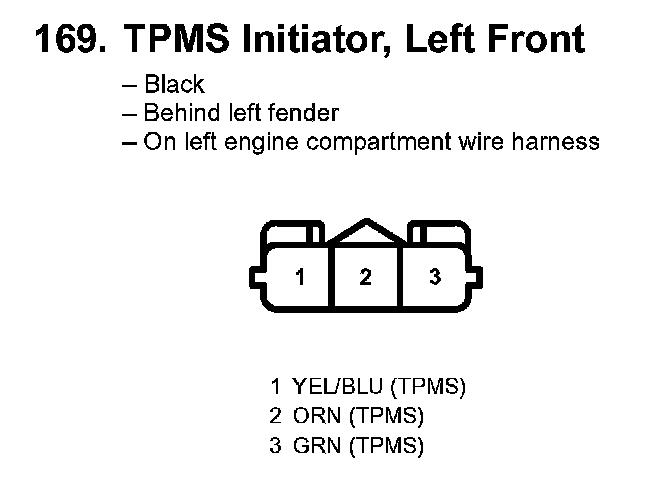

169. TPMS Initiator, Left Front:

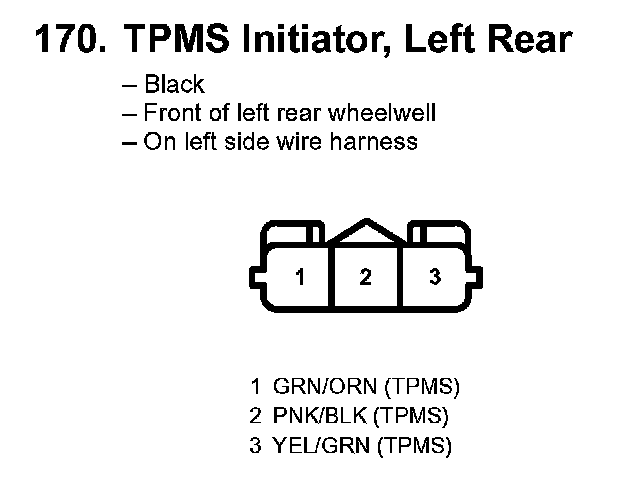

170. TPMS Initiator, Left Rear:

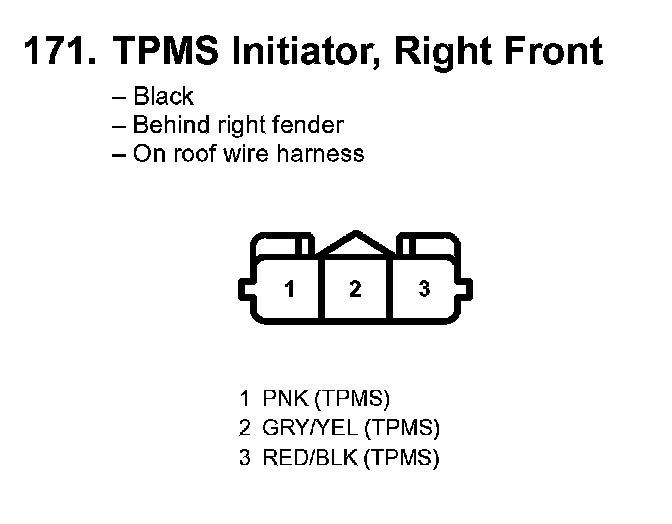

171. TPMS Initiator, Right Front:

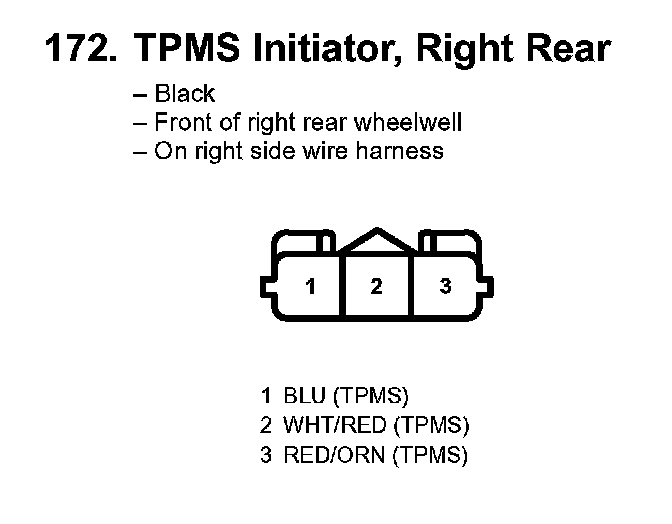

172. TPMS Initiator, Right Rear:
