Heating and Air Conditioning: Locations

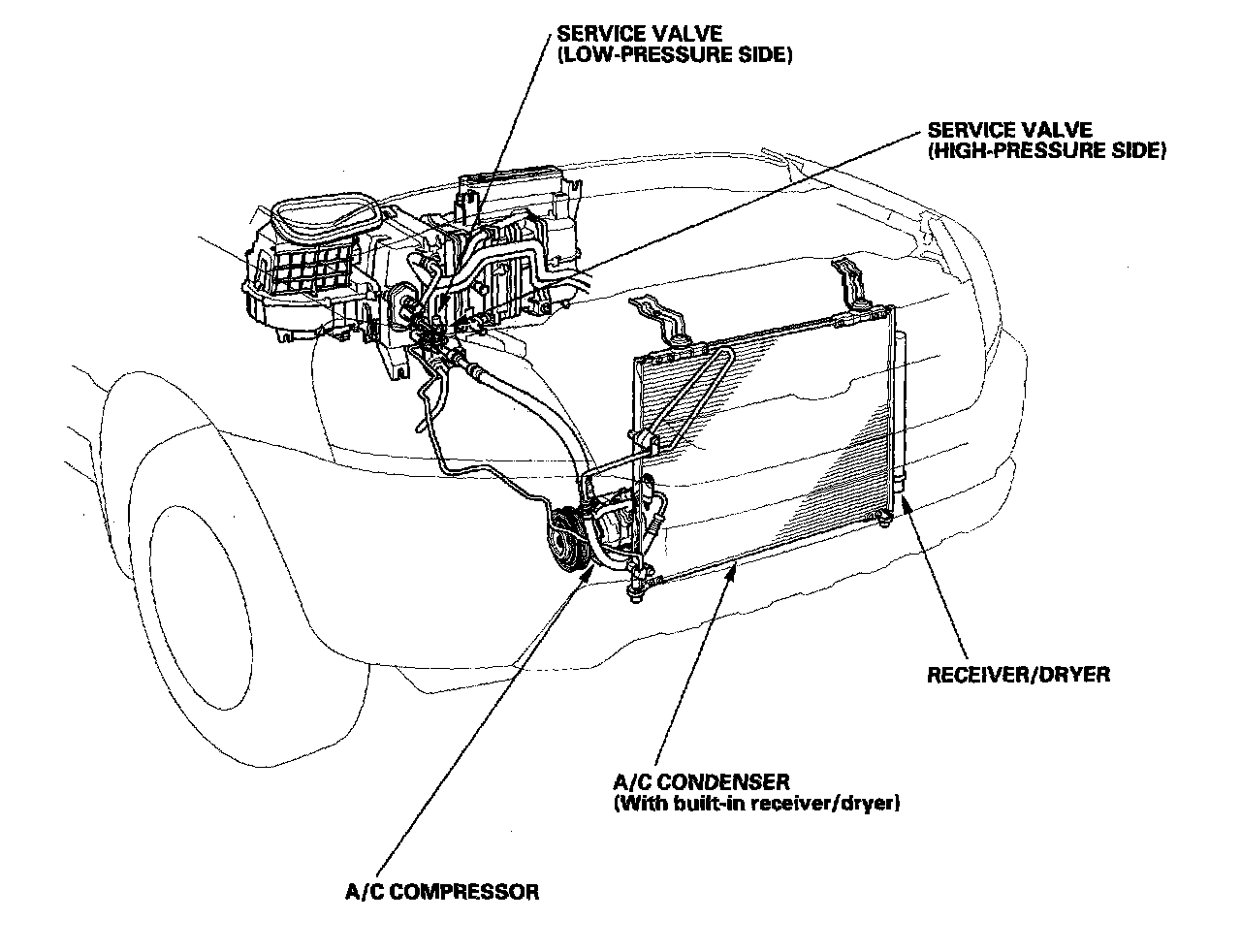

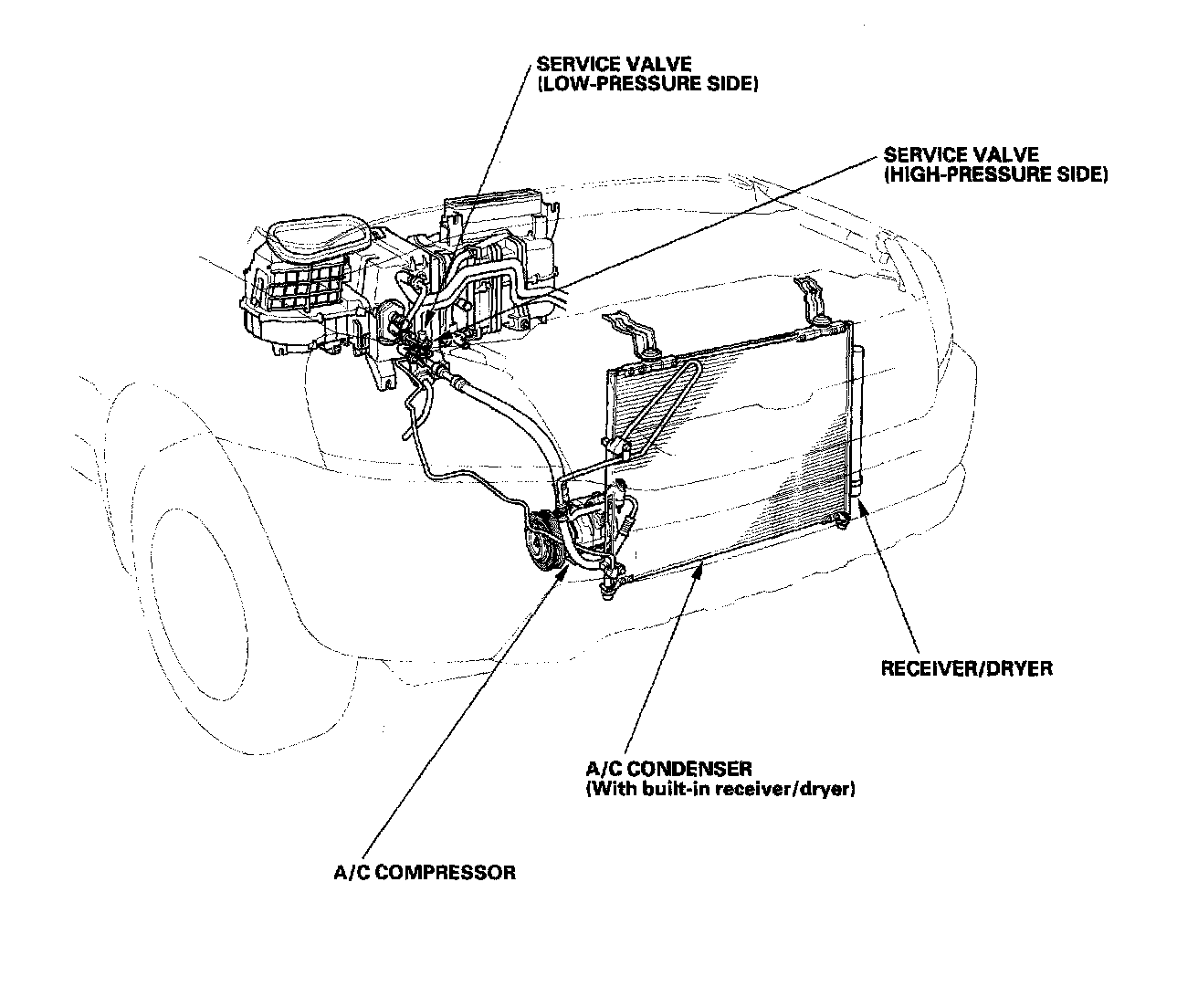

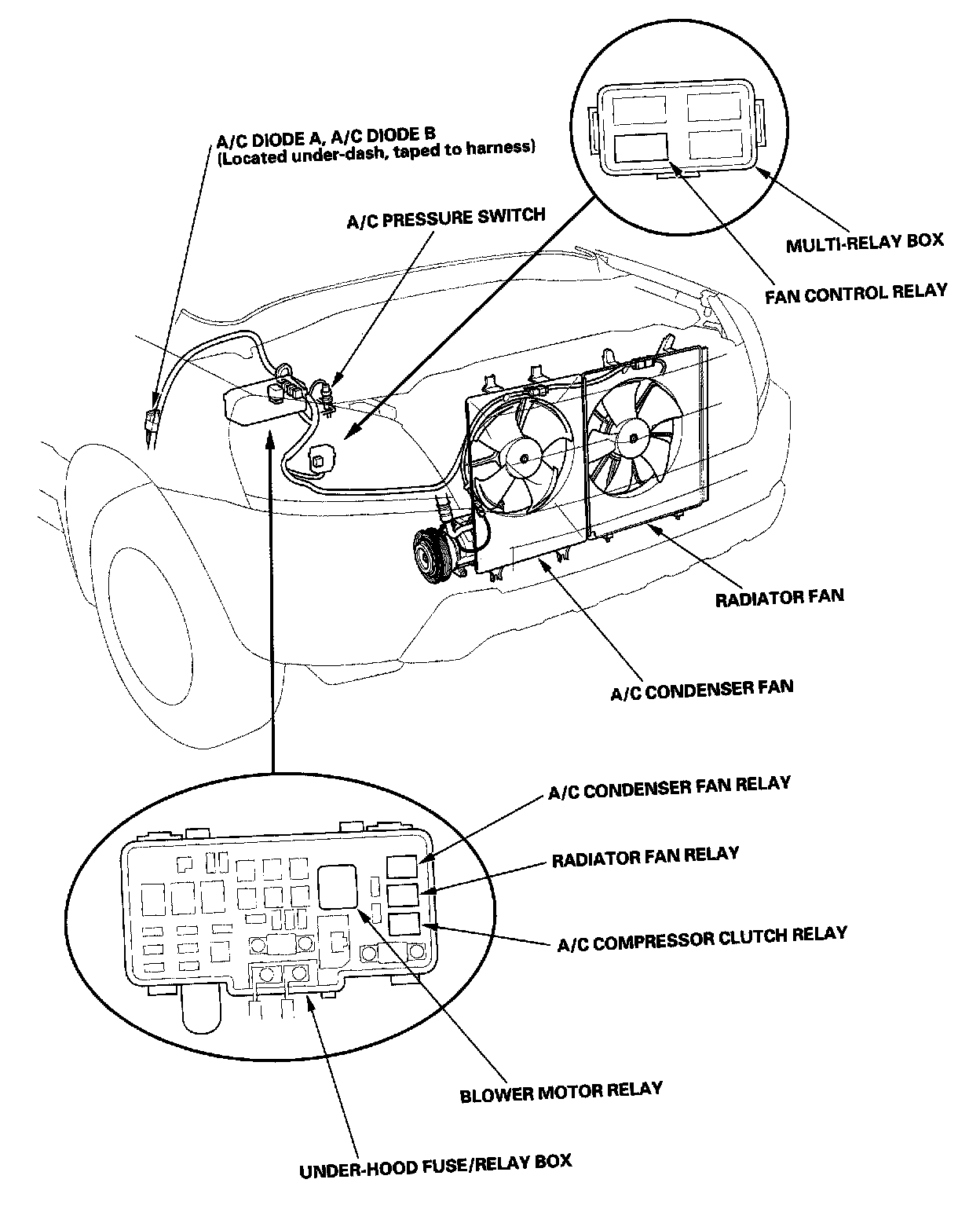

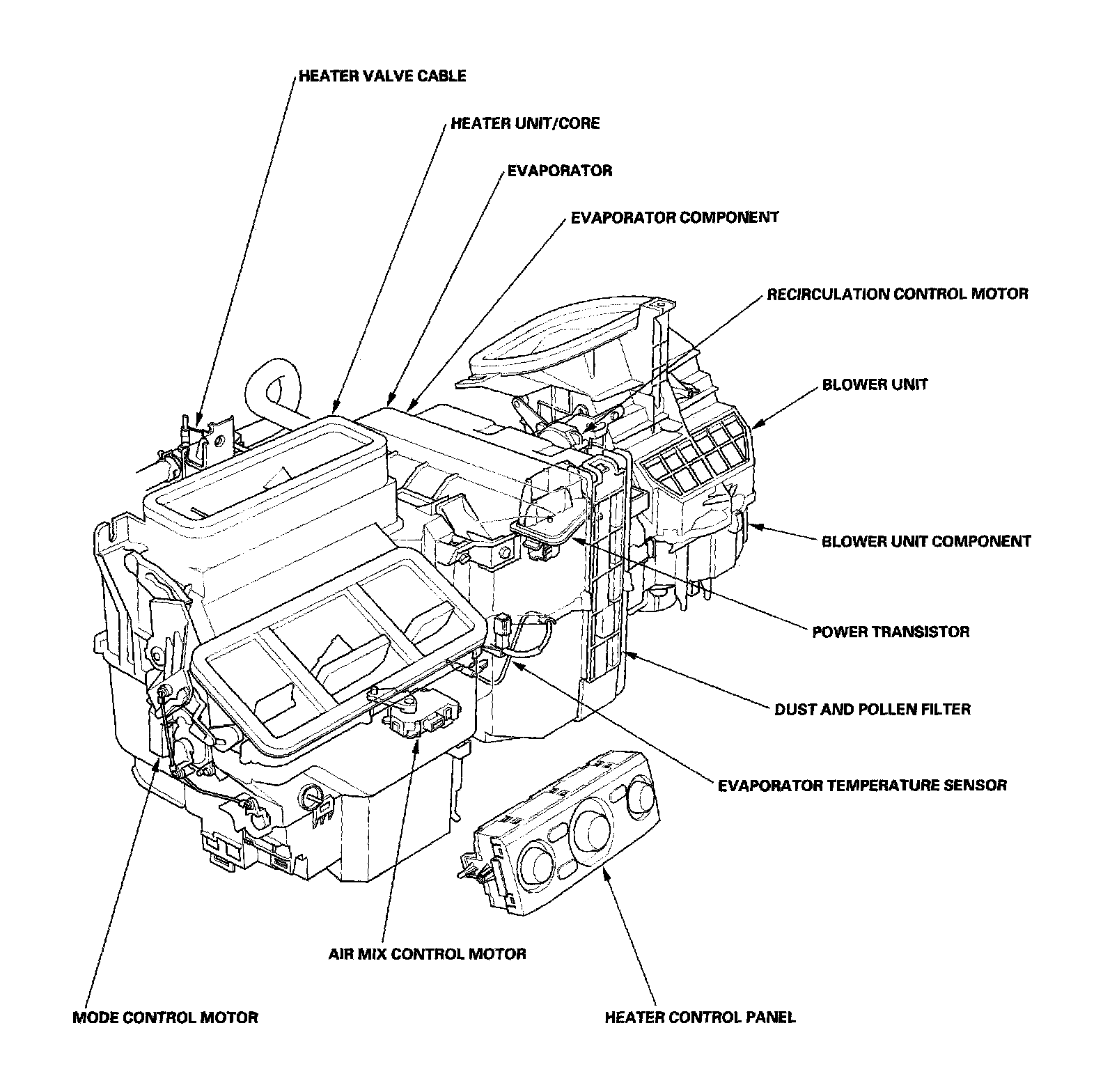

Heating/Air Conditioning - Component Location Index:

Heating/Air Conditioning - Component Location Index:

Heating/Air Conditioning - Component Location Index:

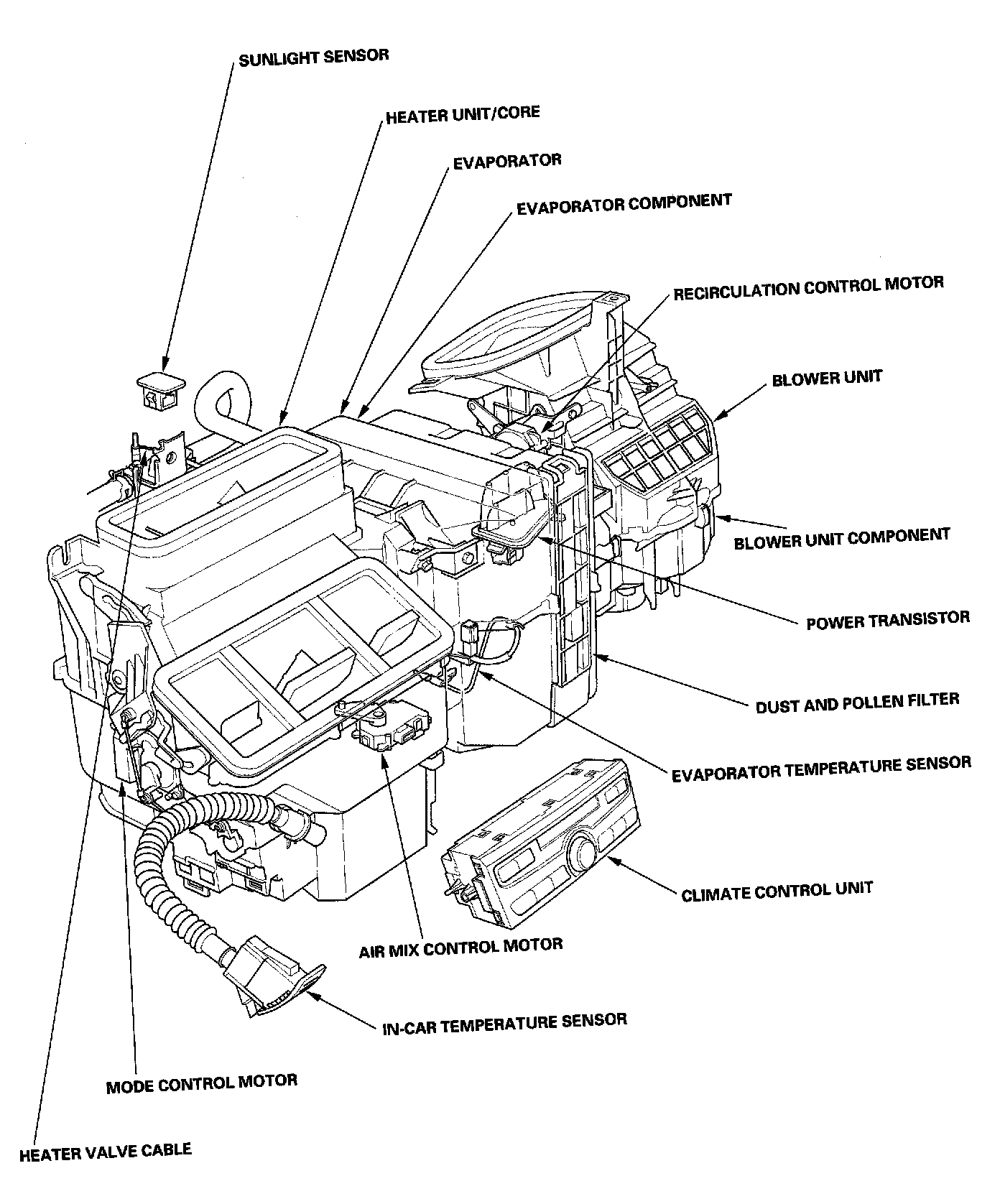

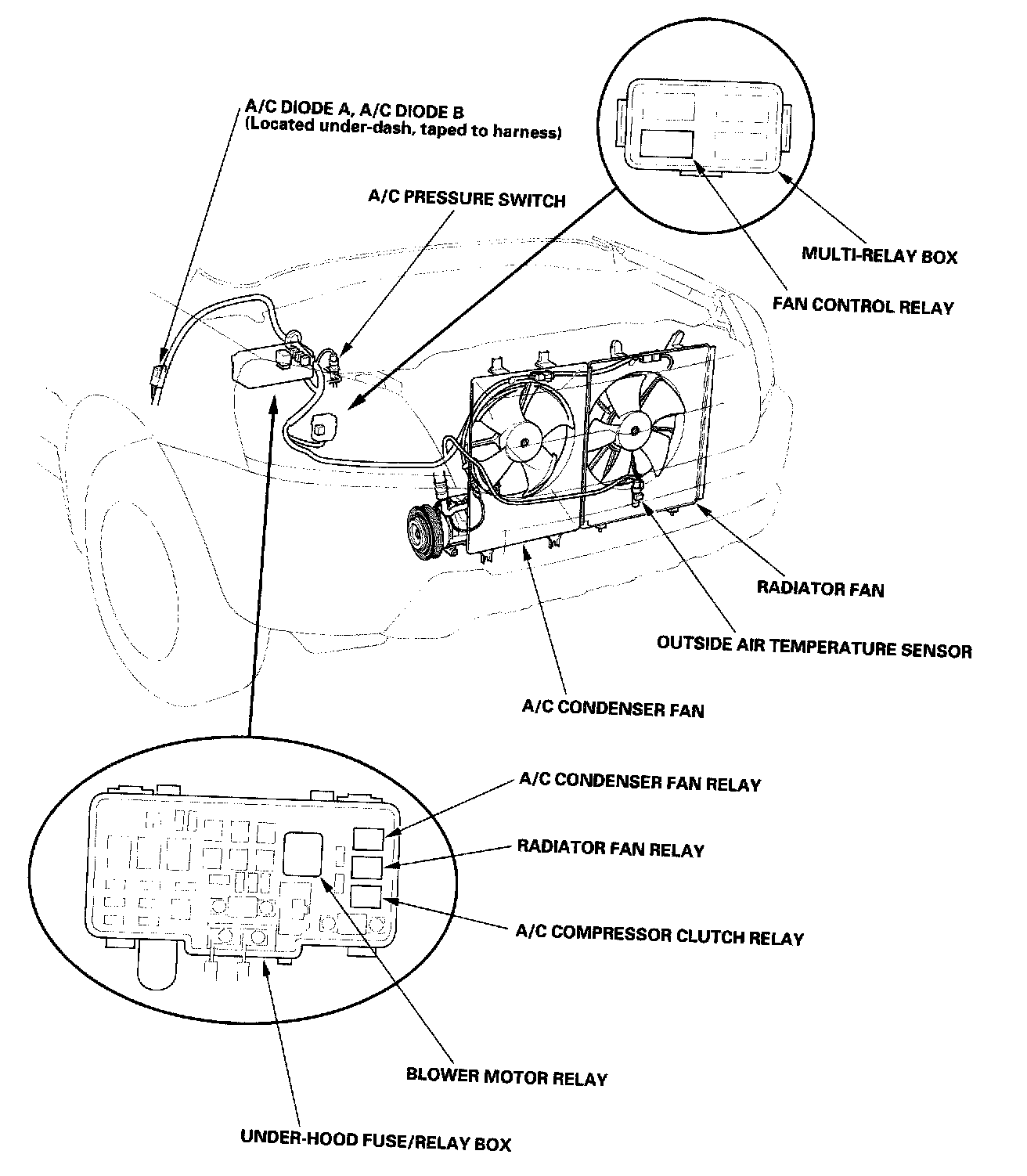

Climate Control - Component Location Index:

Climate Control - Component Location Index:

Climate Control - Component Location Index:

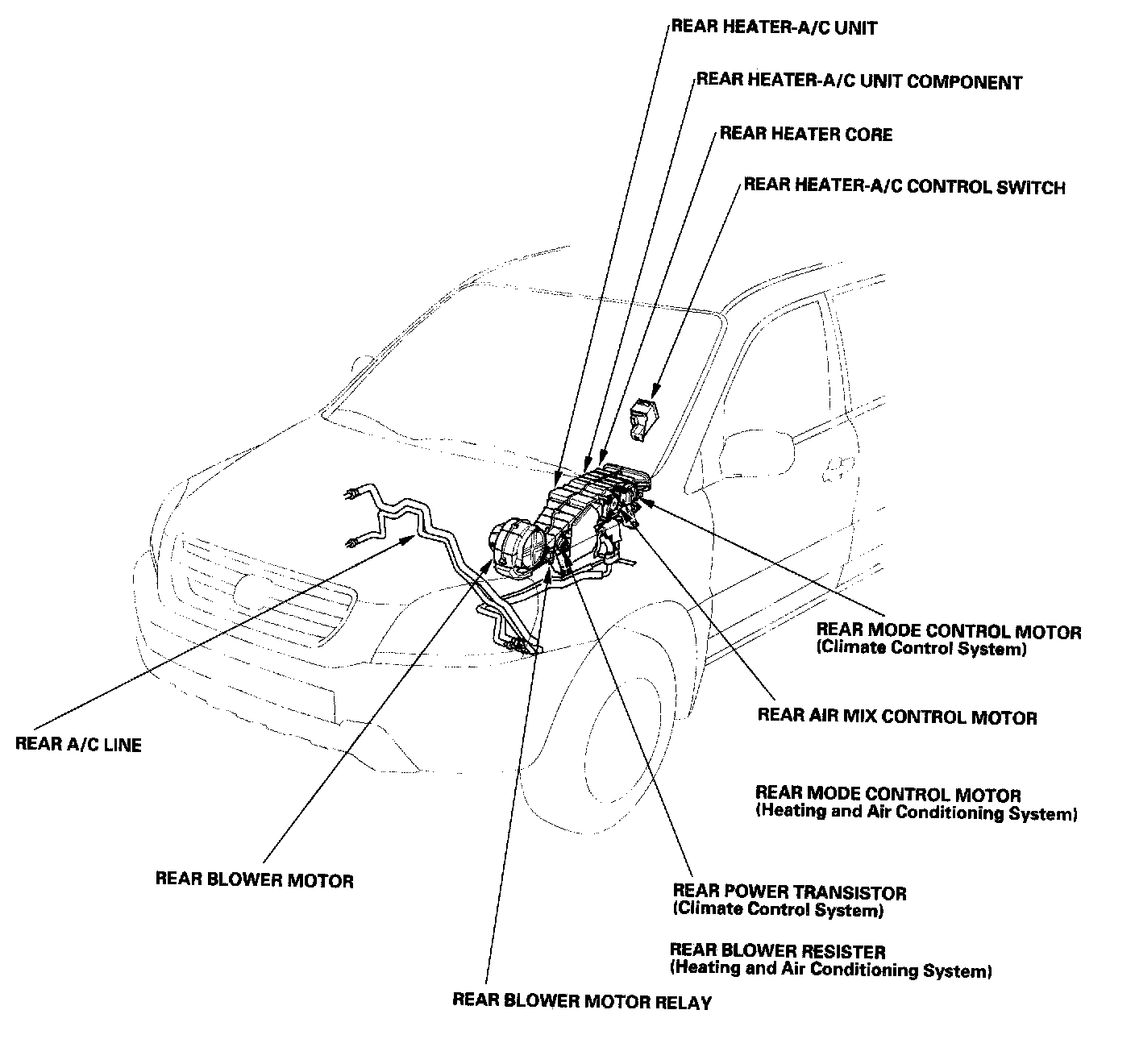

Rear Heater-A/C - Component Location Index:
