ECT Sensor 2 Replacement

ECT Sensor 2 Replacement

1. Drain the engine coolant.
2. Remove intake manifold cover.

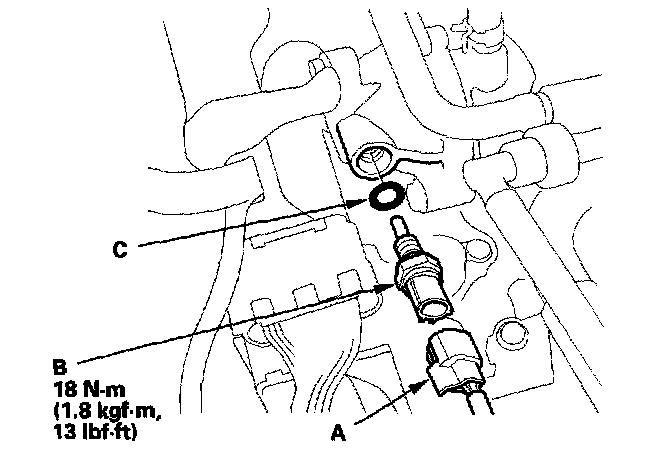

3. Disconnect ECT sensor 2 2P connector (A).
4. Remove ECT sensor 2 (B).
5. Install the sensor in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant, and bleed air from the cooling system with the heater valve open.
