Powertrain Control Module Terminal Arrangement

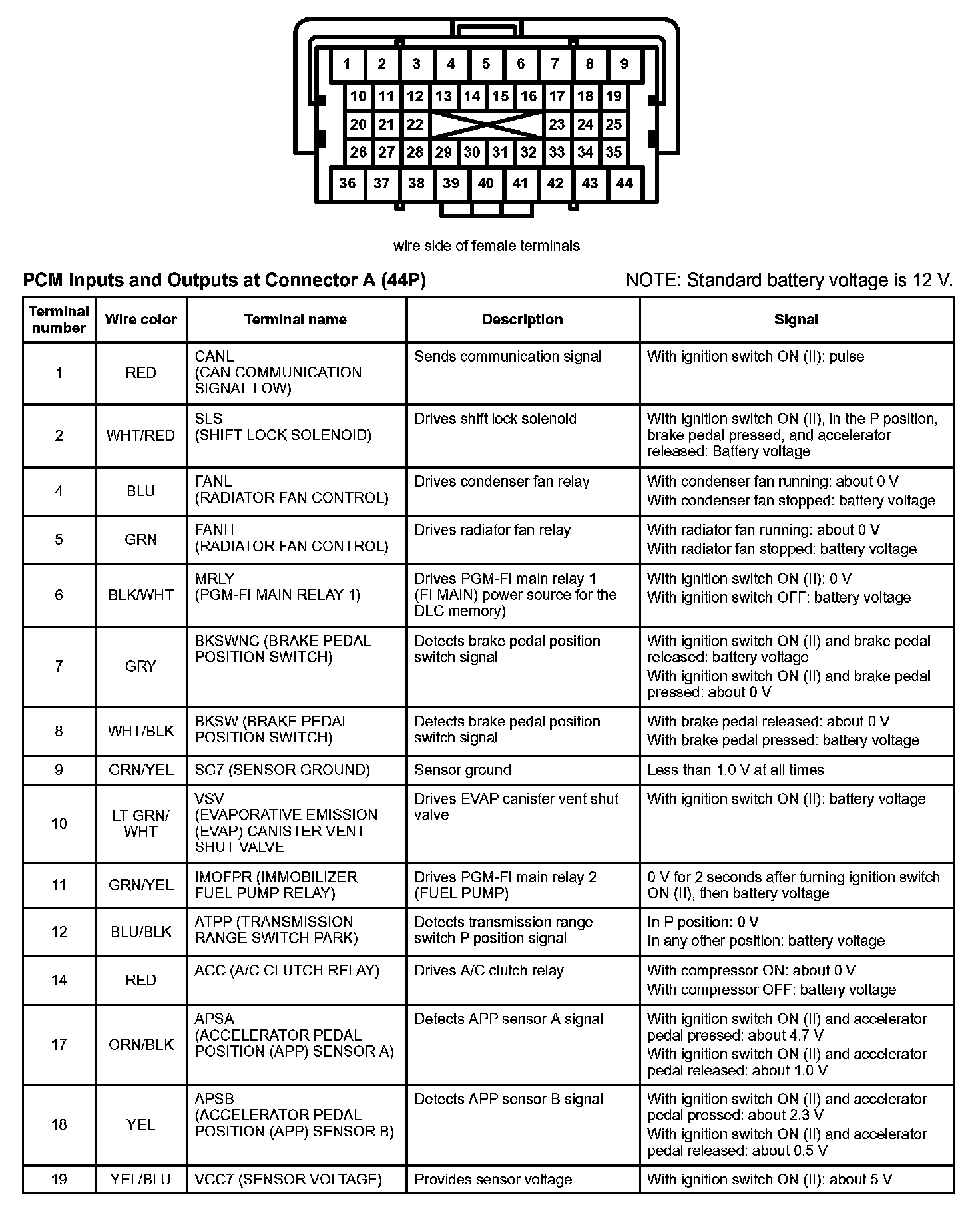

PCM Inputs And Outputs At Connector A (44P) Part 1:

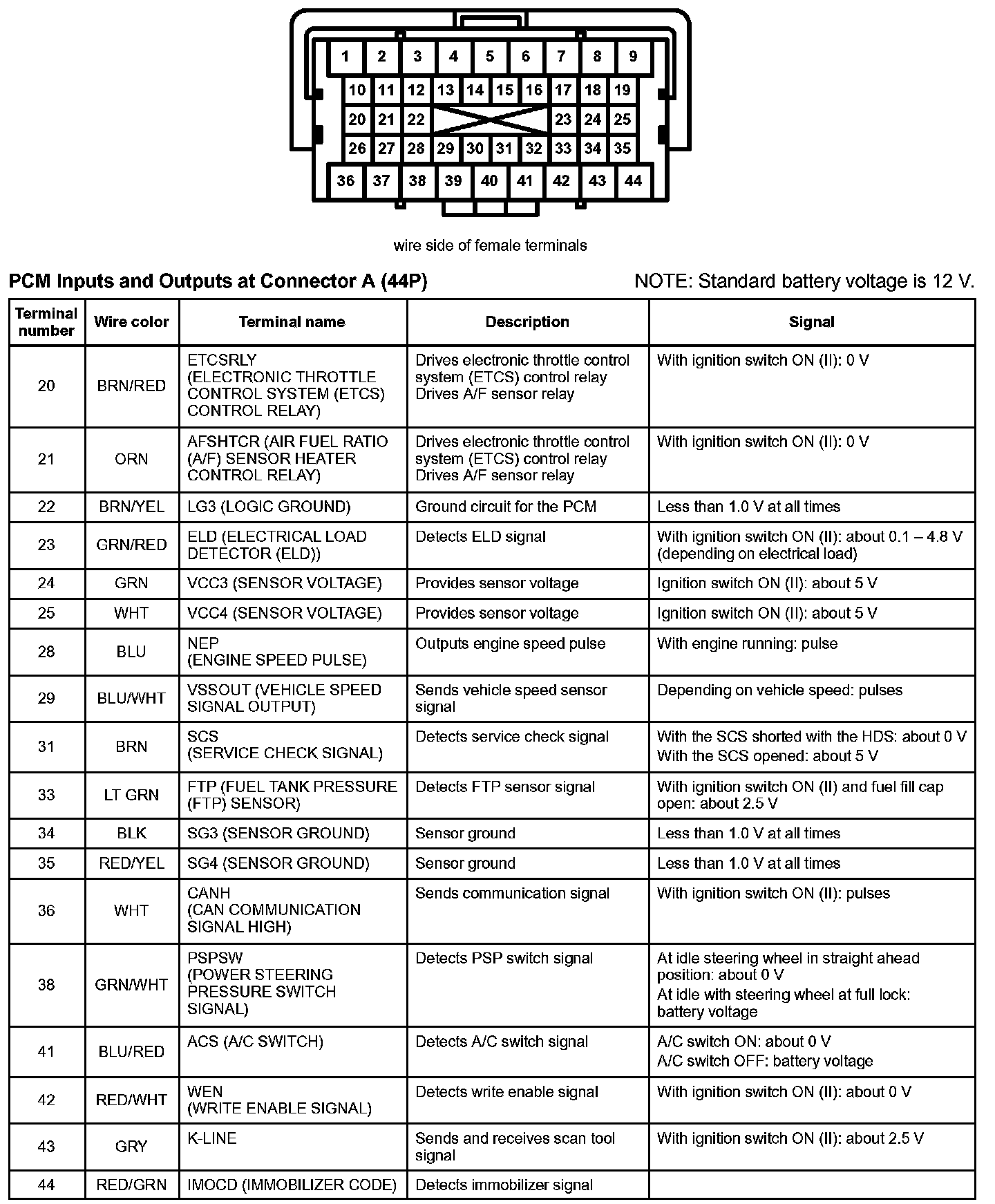

PCM Inputs And Outputs At Connector A (44P) Part 2:

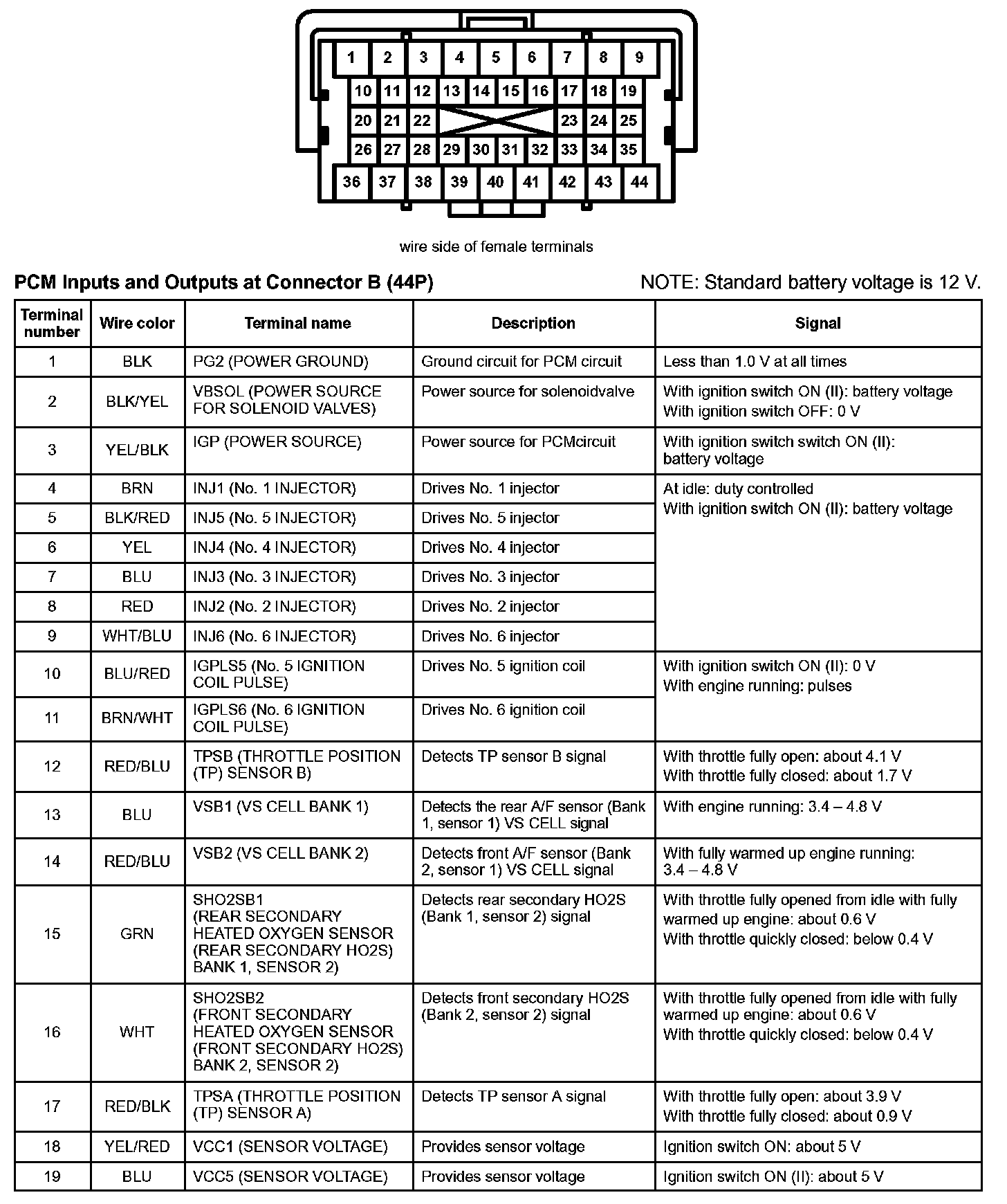

PCM Inputs And Outputs At Connector B (44P) Part 1:

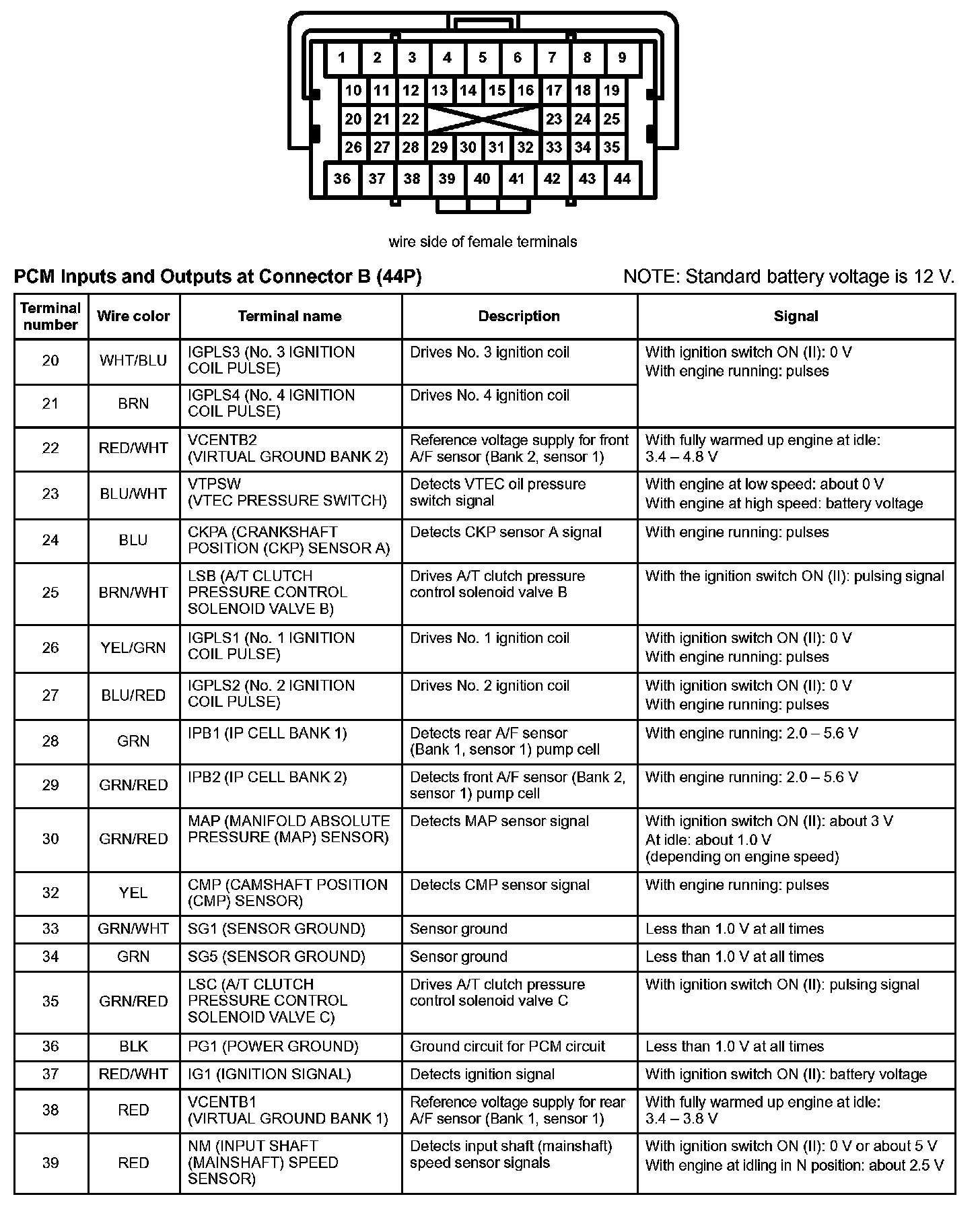

PCM Inputs And Outputs At Connector B (44P) Part 2:

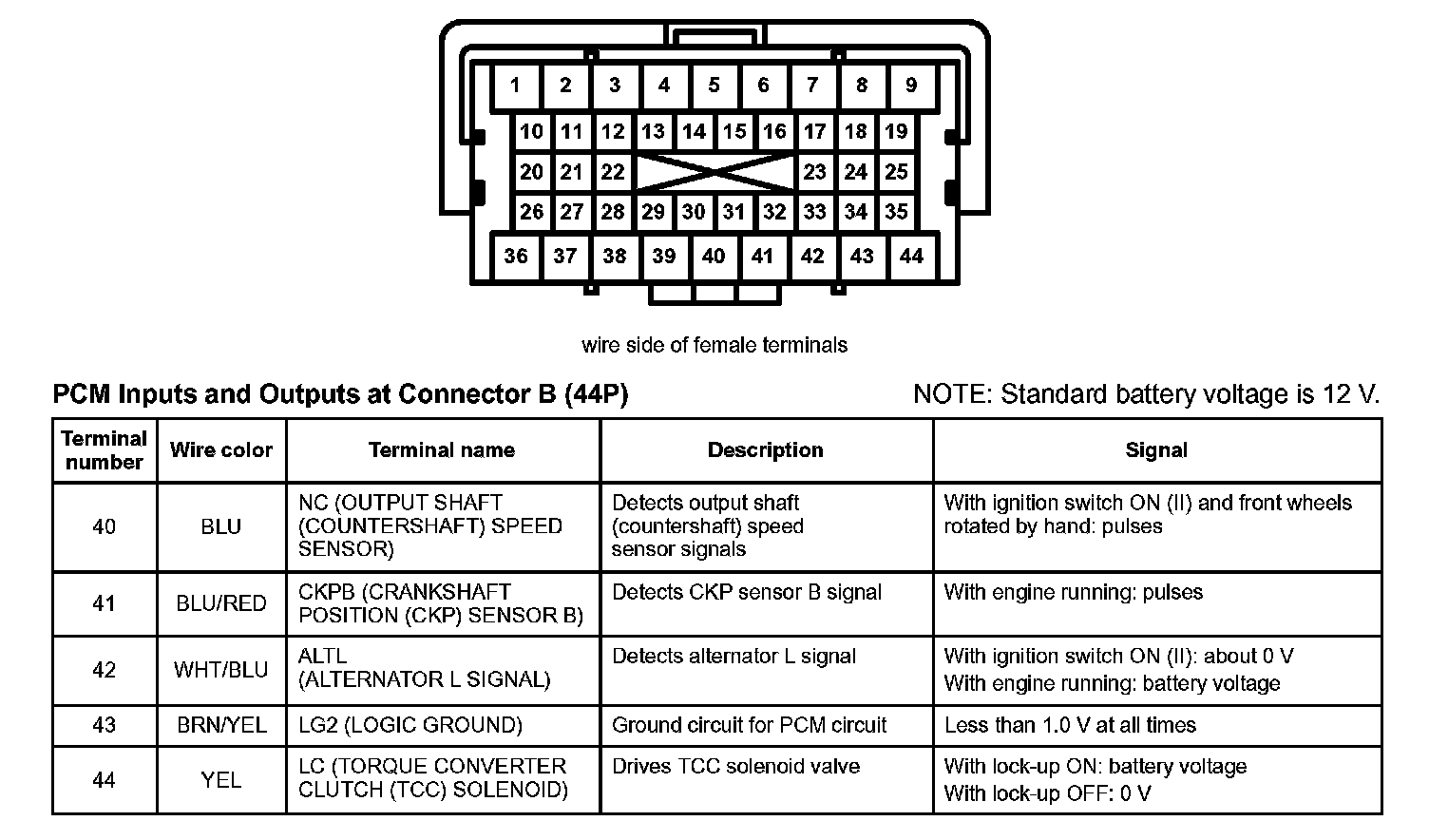

PCM Inputs And Outputs At Connector B (44P) Part 3:

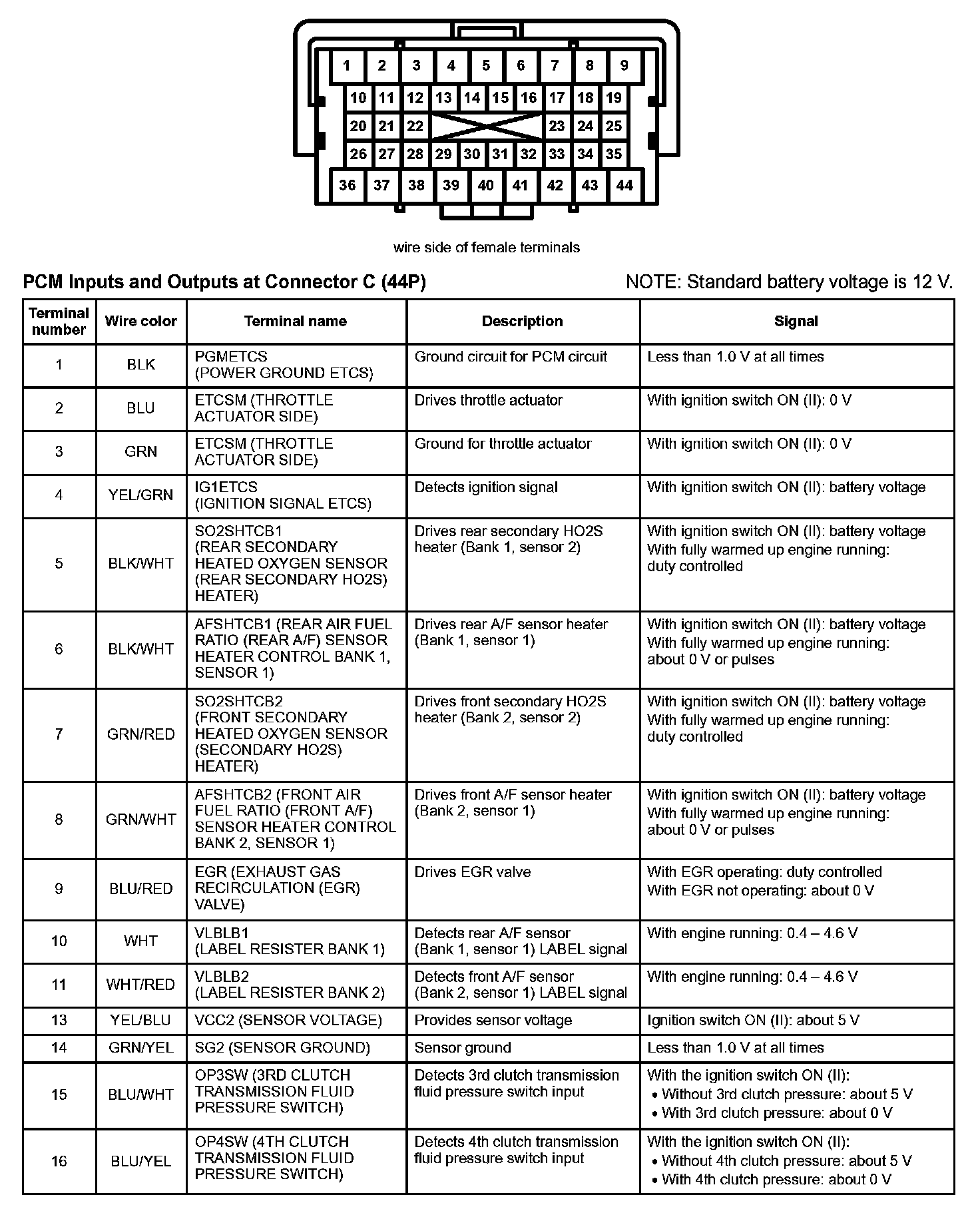

PCM Inputs And Outputs At Connector C (44P) Part 1:

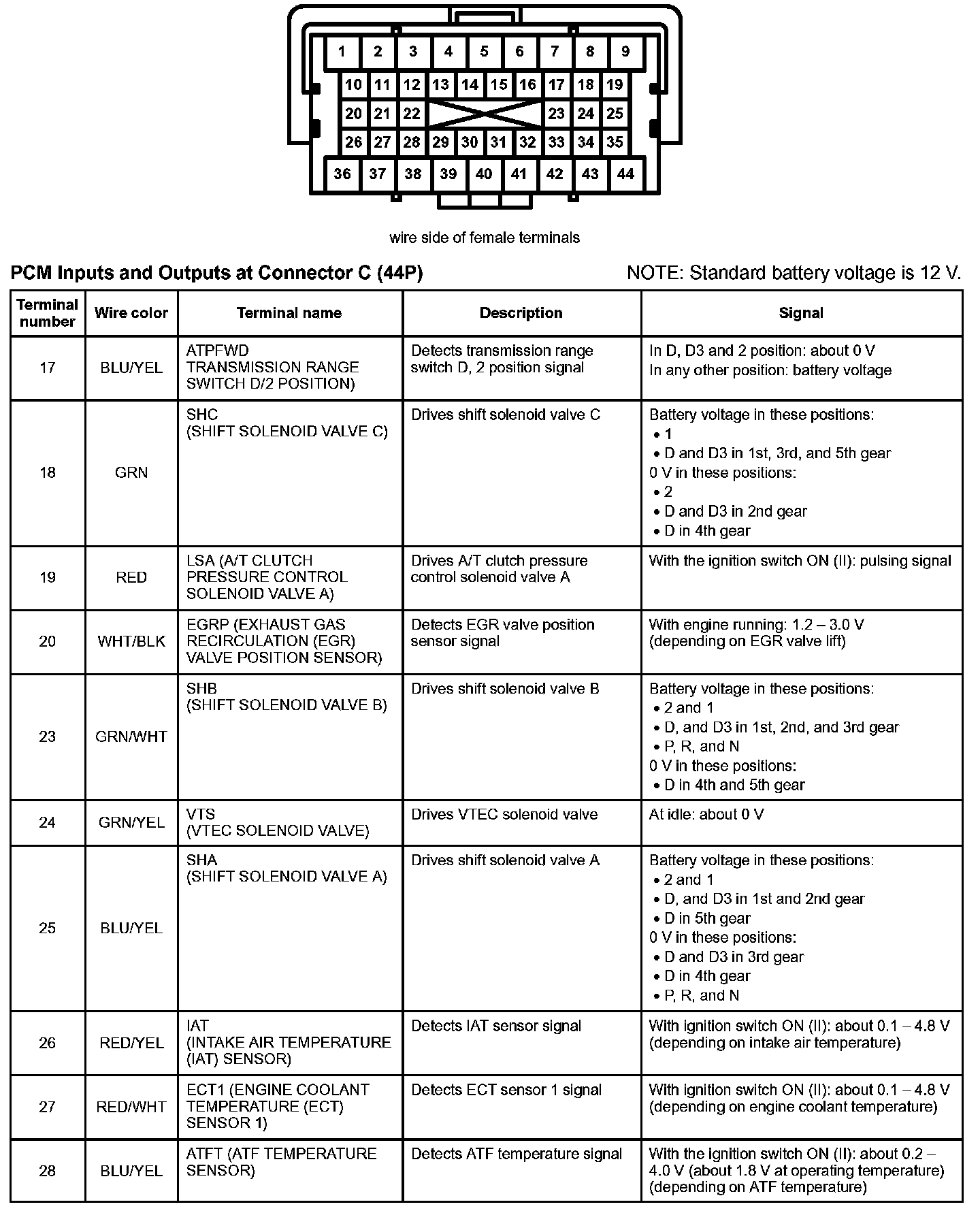

PCM Inputs And Outputs At Connector C (44P) Part 2:

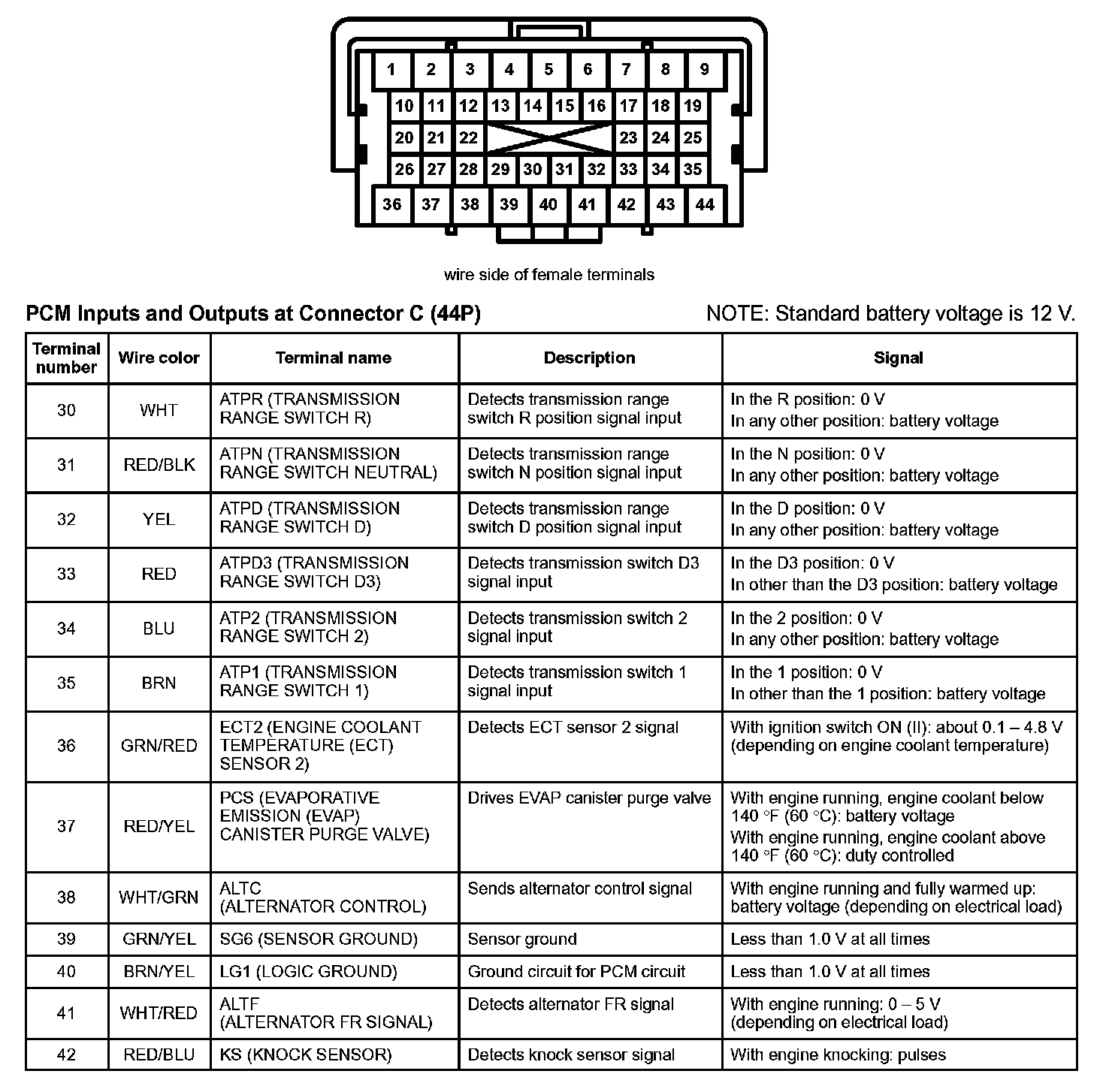

PCM Inputs And Outputs At Connector C (44P) Part 3:
