Flex Plate

Flex Plate

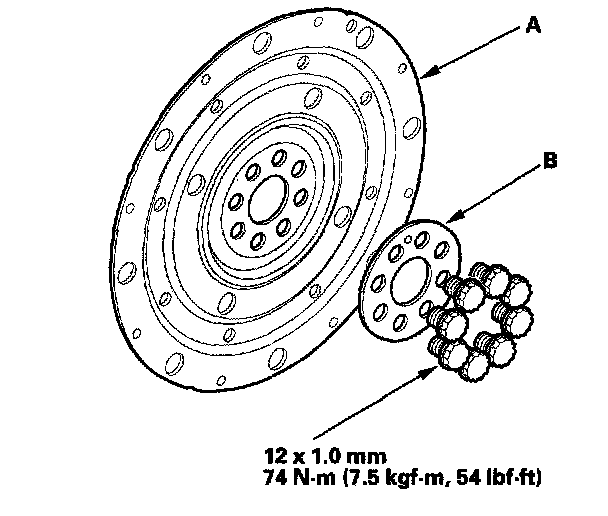

Install the drive plate and washer on the engine crankshaft, and tighten the eight bolts in a crisscross pattern.
