Component Locations

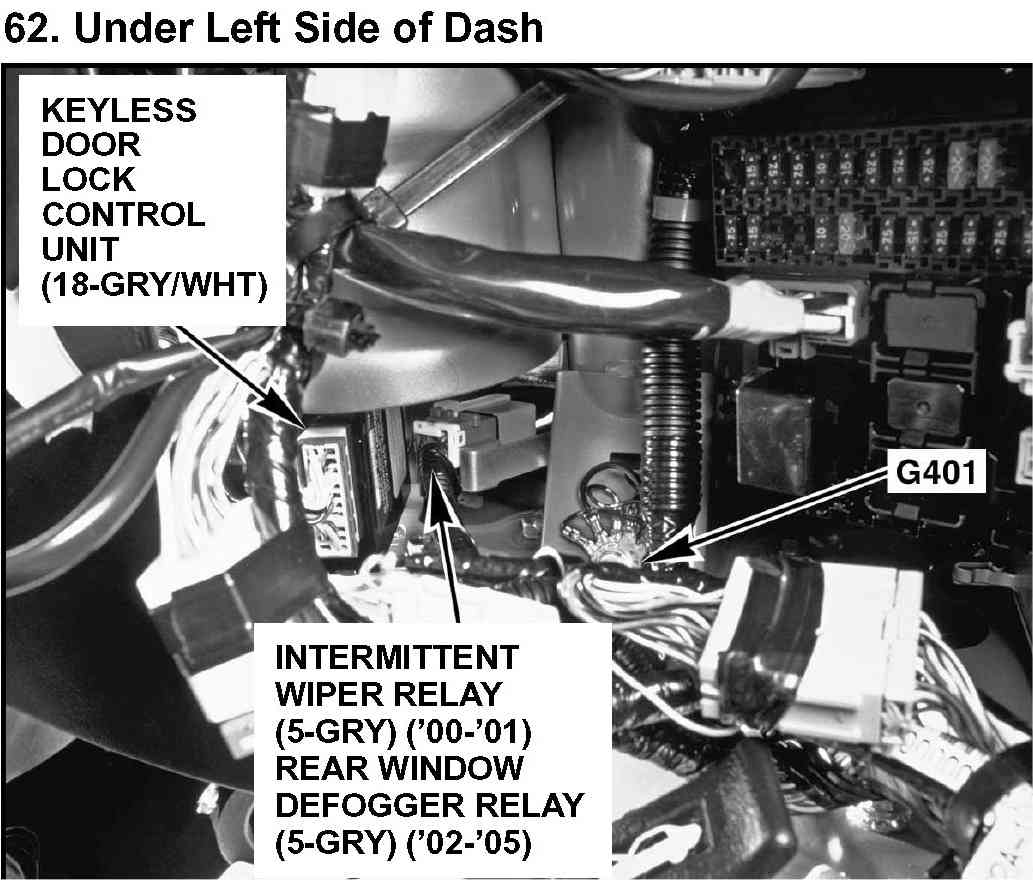

62. Under Left Side of Dash:

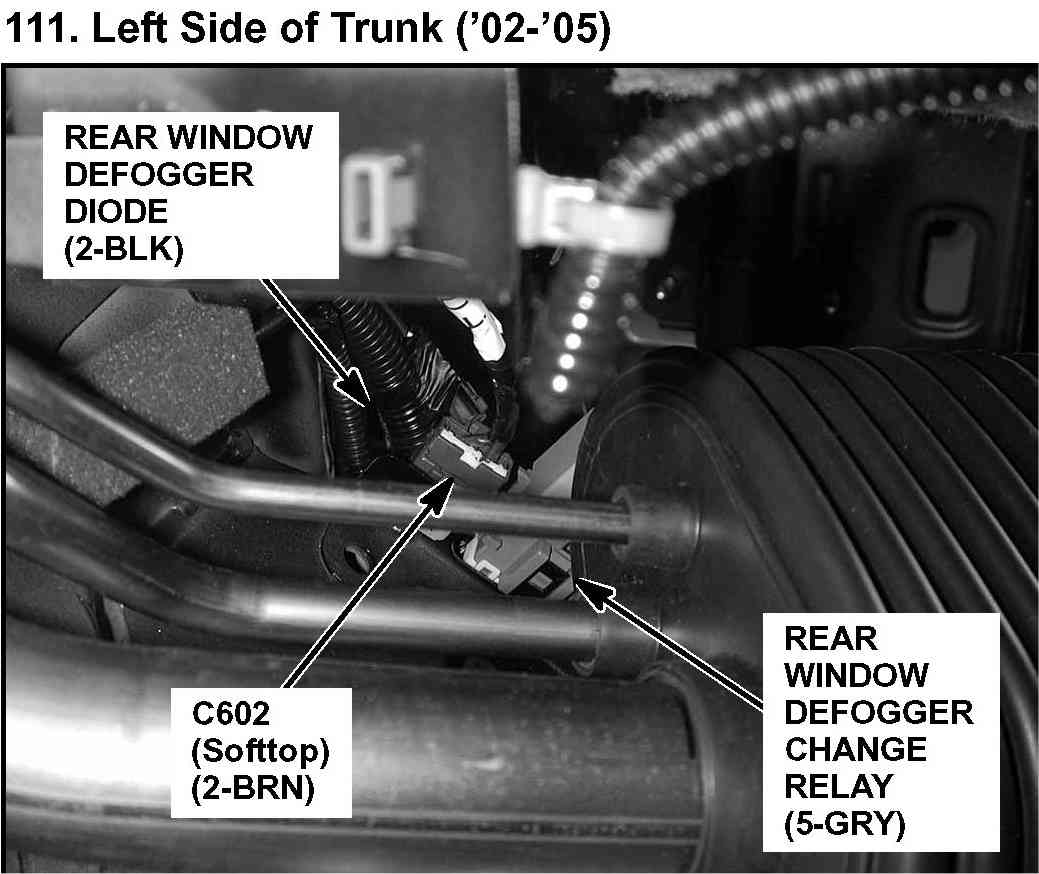

111. Left Side of Trunk ('02-'05):



Relay And Control Unit Locations - Dash Board:



Relay And Control Unit Locations - Dashboard And Door:

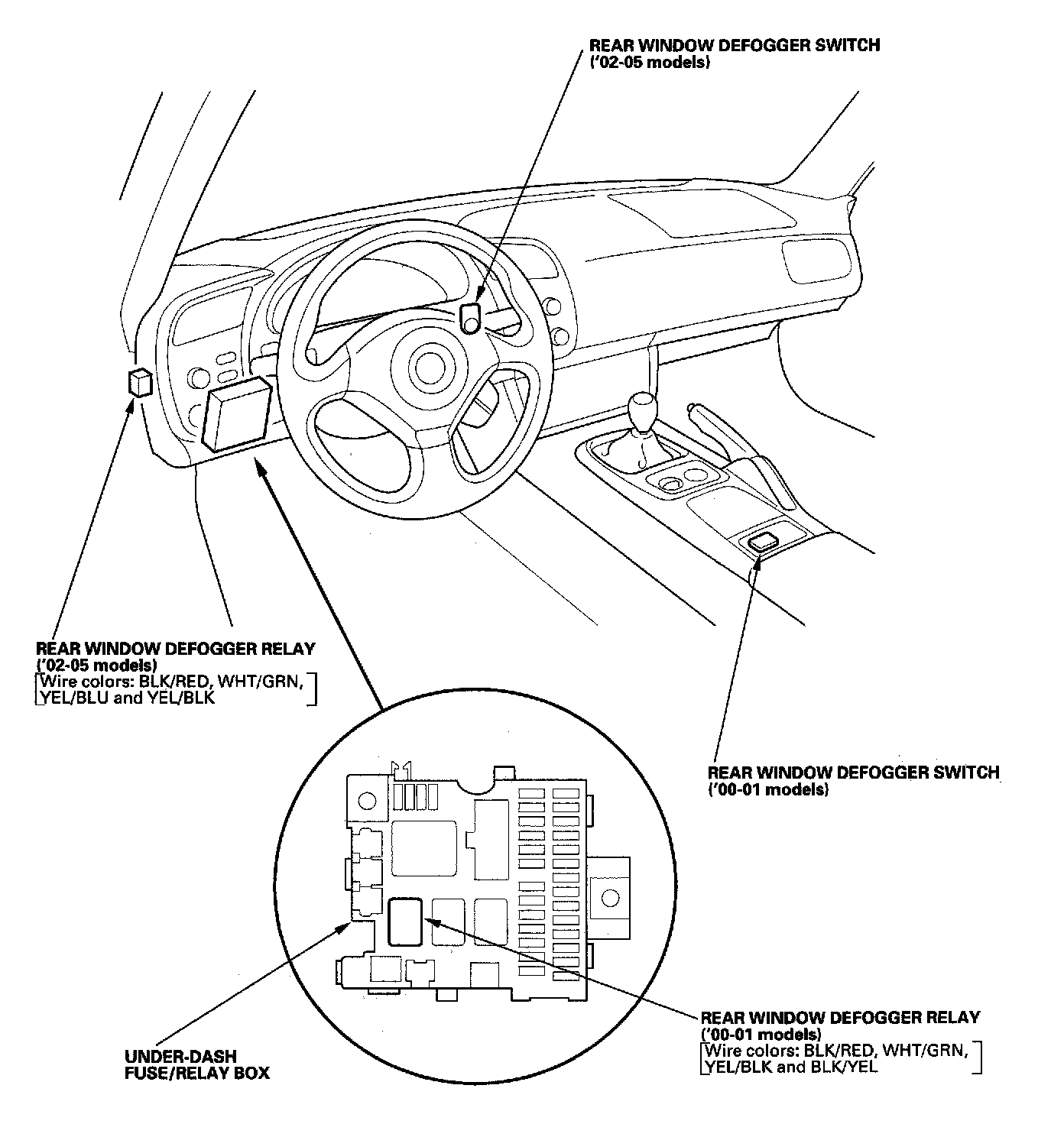

Rear Window Defogger - Component Location Index:

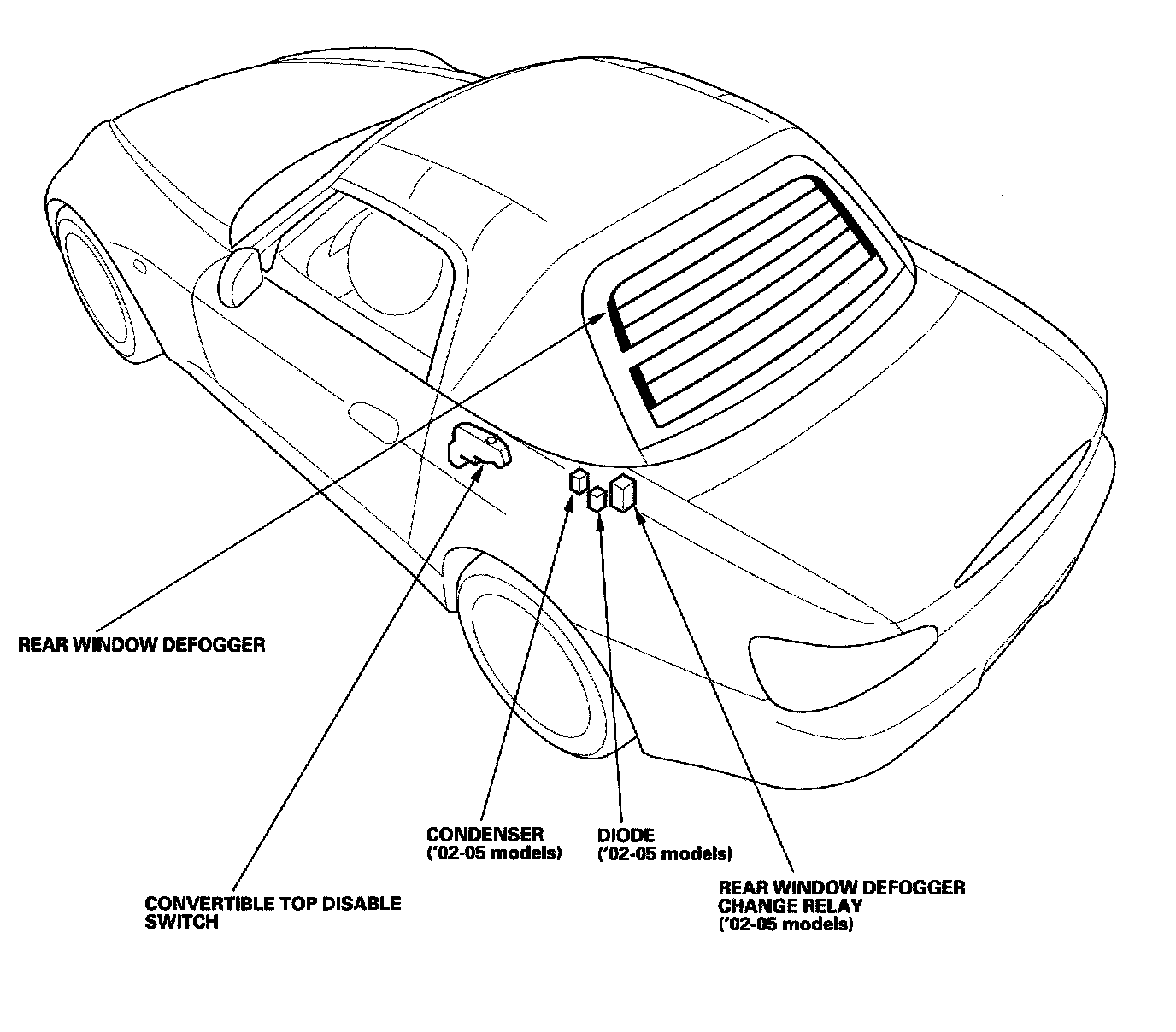

Rear Window Defogger - Component Location Index:
