Cruise Control Master Switch Test

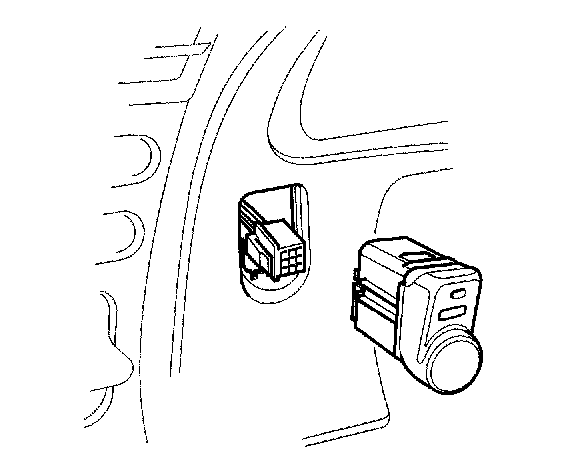

1. Carefully pry the cruise control master switch out of the instrument panel, then disconnect the connector from the switch.

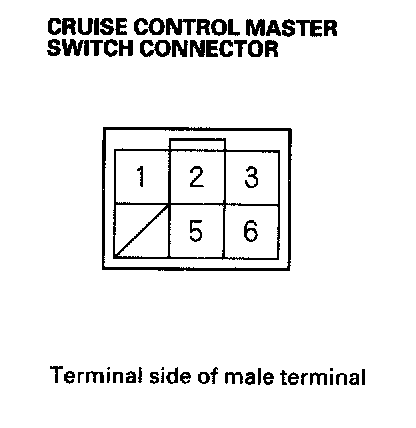

2. Check for continuity between terminals No. 6 and No. 1, and between terminals No. 6 and No. 5 on the switch. There should be continuity when the switch is pressed, and no continuity when the switch is pressed again.
3. Check for continuity between the No. 2 and No. 3 terminals. There should be continuity.
4. If a failure occurs between terminals No. 6 and No. 1, replace the cruise control master switch.
5. If a failure occurs between terminals No. 6 and No. 5, and between the No. 2 and No. 3, check the cruise control master switch indicator and illumination.
