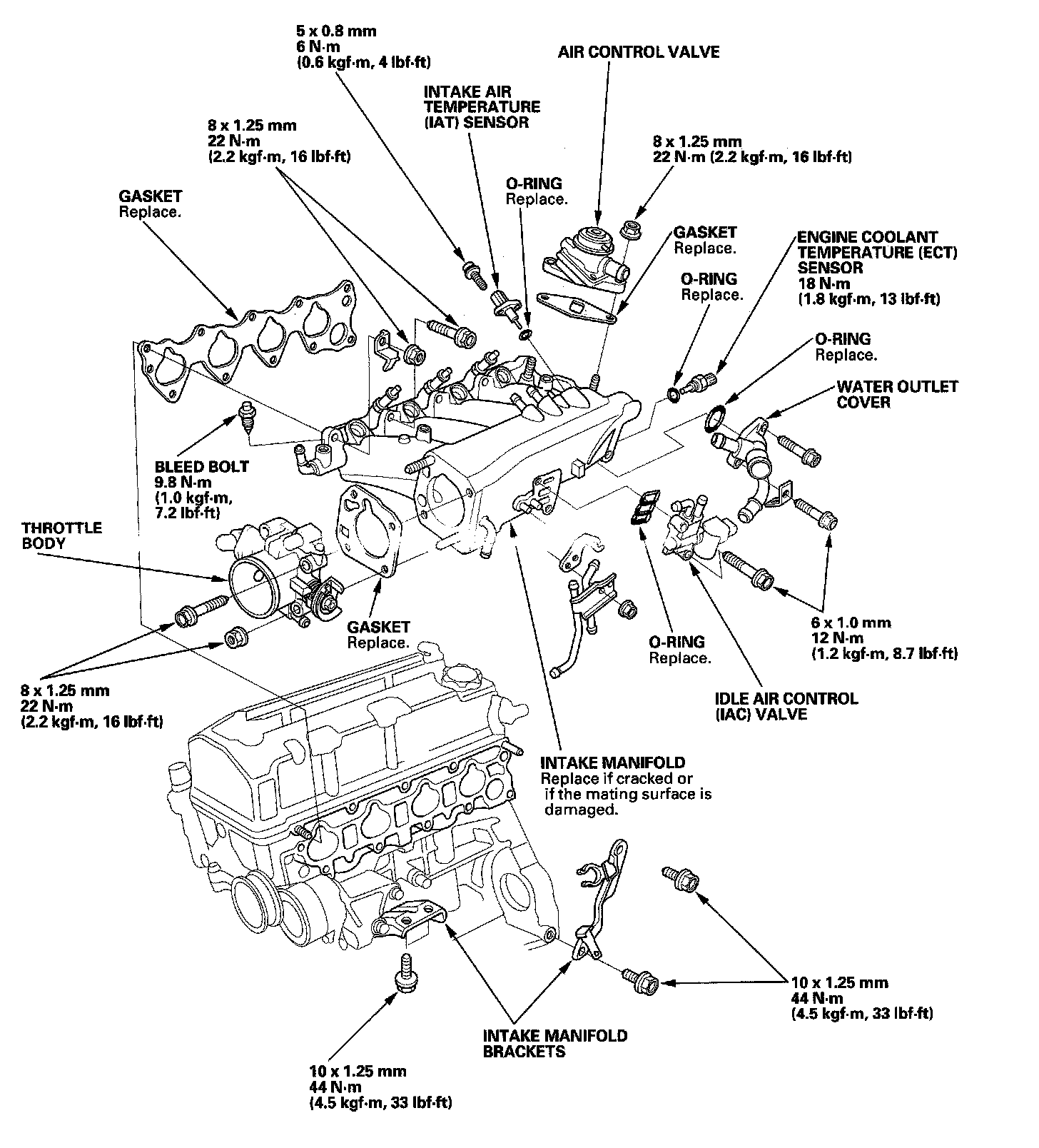

Intake Manifold

Intake Manifold Removal and Installation





NOTE: Use new O-rings and gaskets when reassembling.
