Control Assembly: Service and Repair

Heater Control Panel Removal and Installation

1. Remove the instrument panel together with the heater control panel.

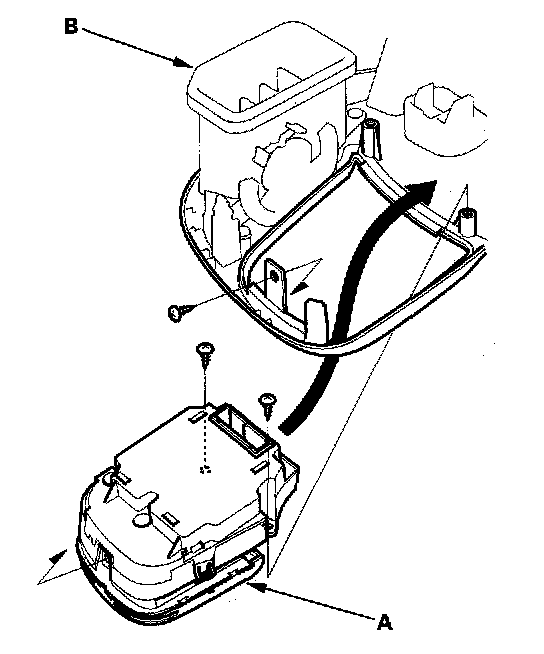

2. Remove the self-tapping screws and the heater control panel (A) from the instrument panel (B).
3. Install the control panel in the reverse order of removal. After installation, operate the control panel controls to see whether it works properly.
4. Run the self-diagnosis function to confirm that there are no problems in the system.
