G303

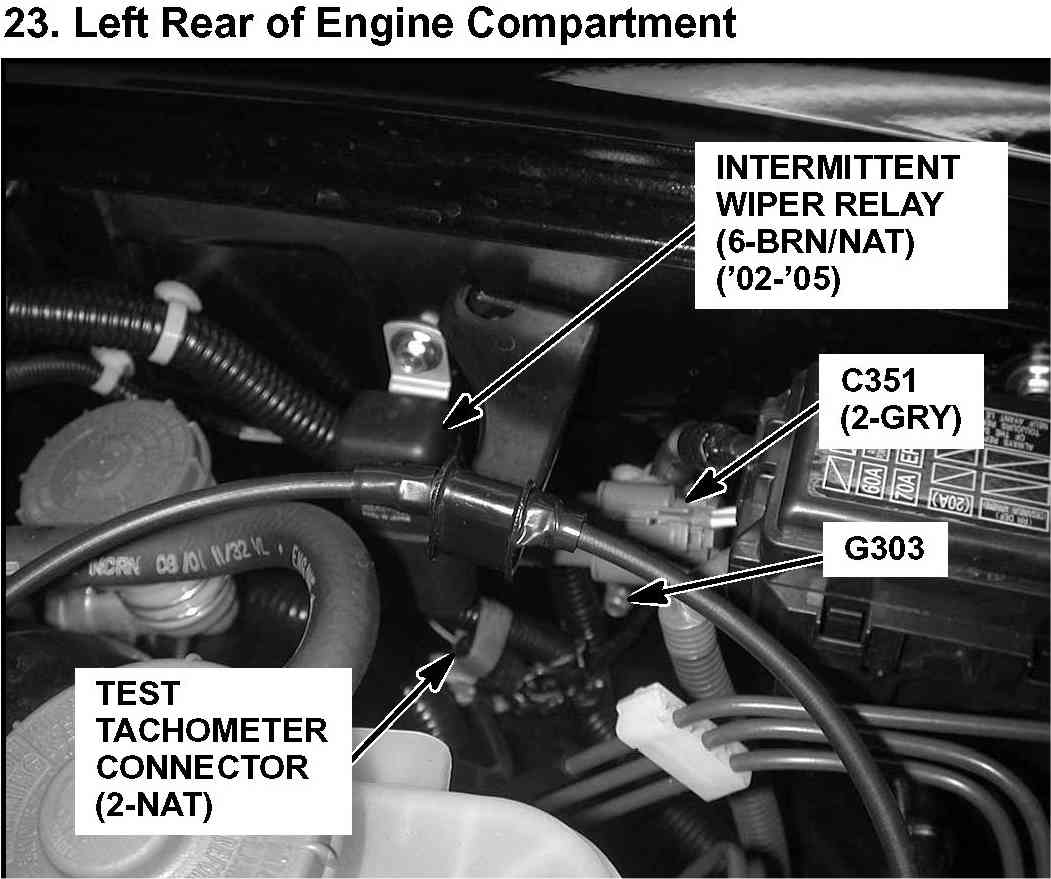

23. Left Rear of Engine Compartment:



Relay And Control Unit Locations - Engine Compartment:

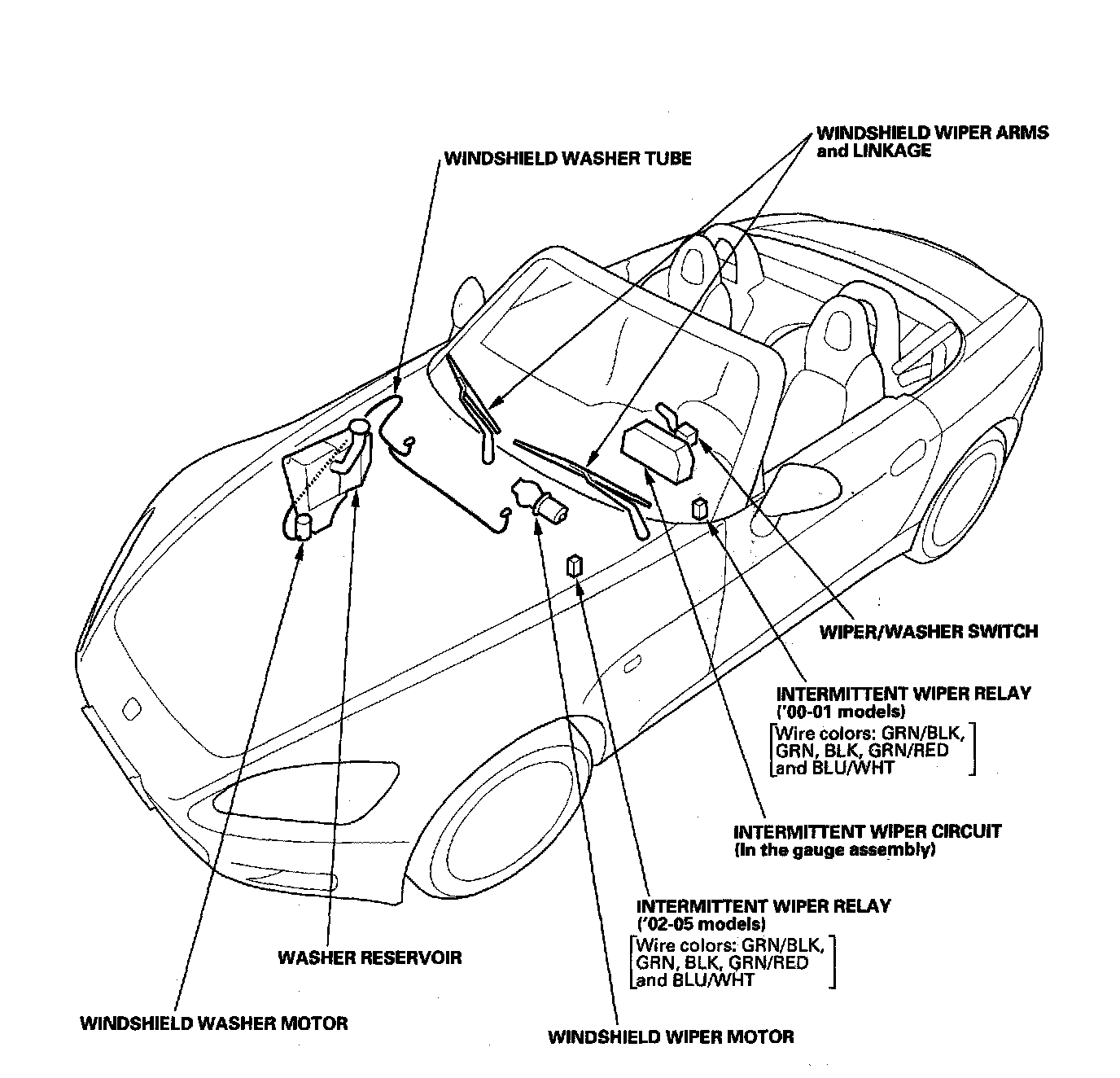

Wipers/Washers - Component Location Index:
