Electric Load Sensor: Locations

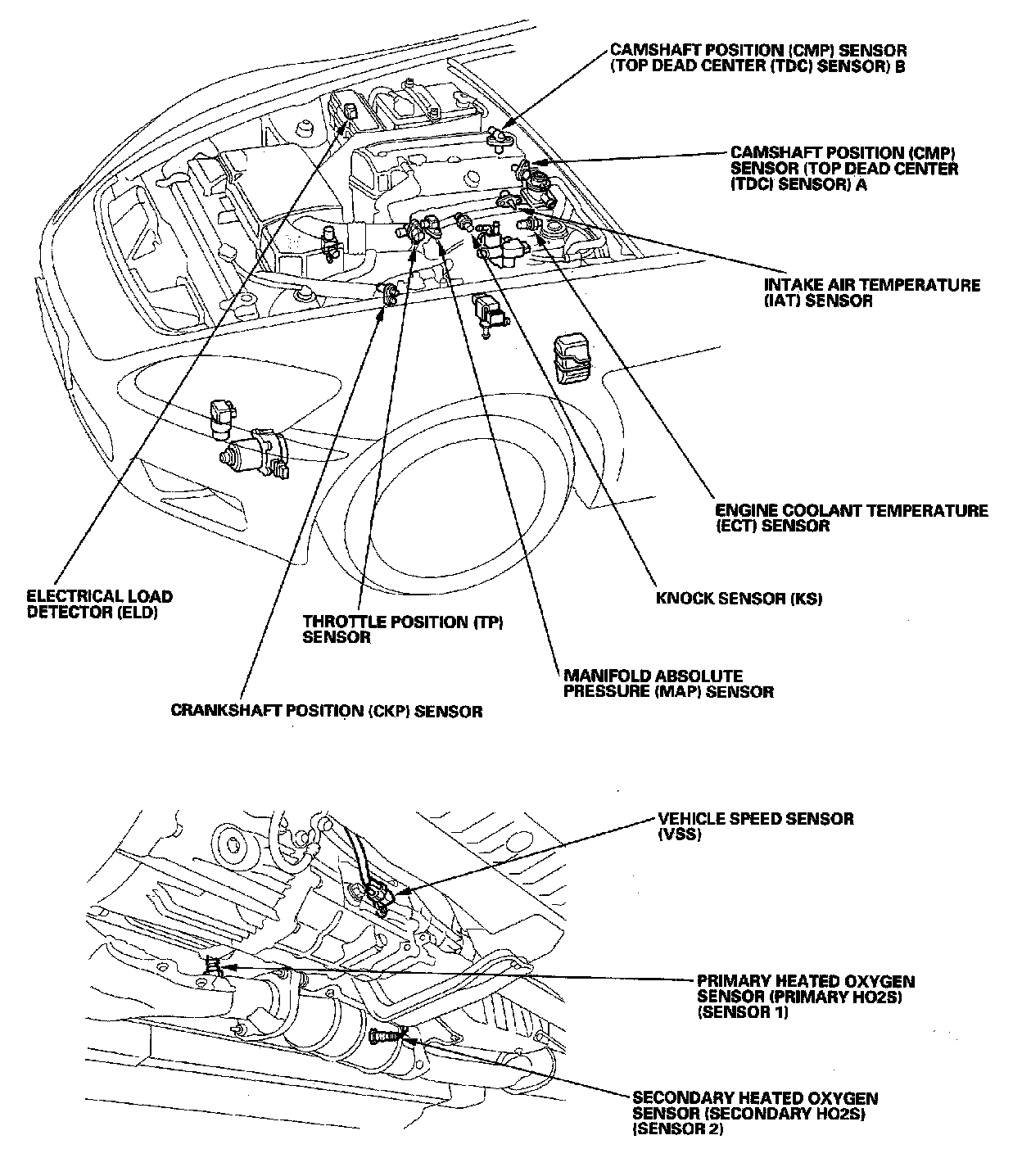

PGM-FI System - Component Location Index:



5. Left Front Side Of Engine:



PGM-FI System - Component Location Index:
