Main Relay (Computer/Fuel System): Locations

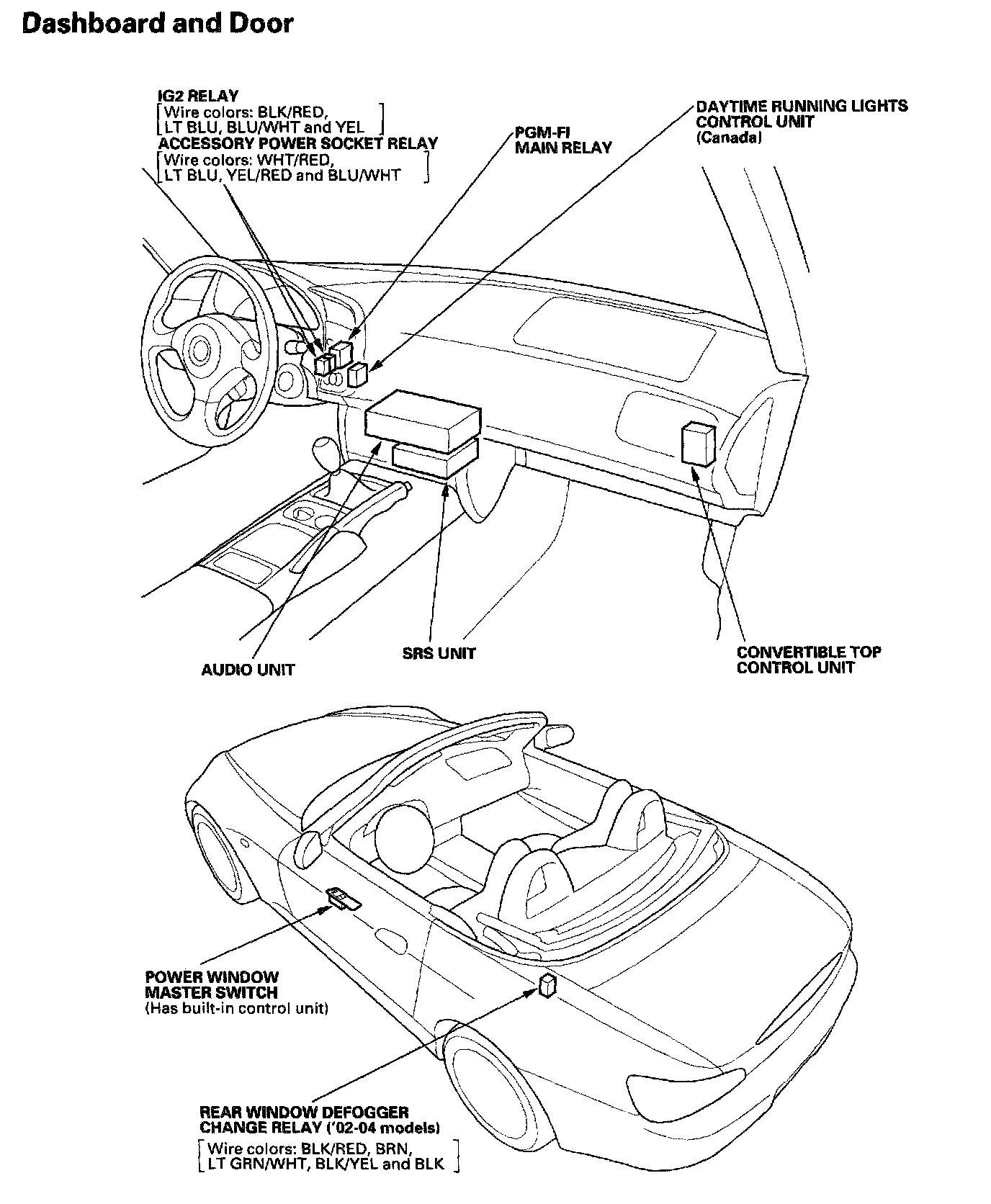

Relay And Engine Control Unit Locations - Dashboard And Door:

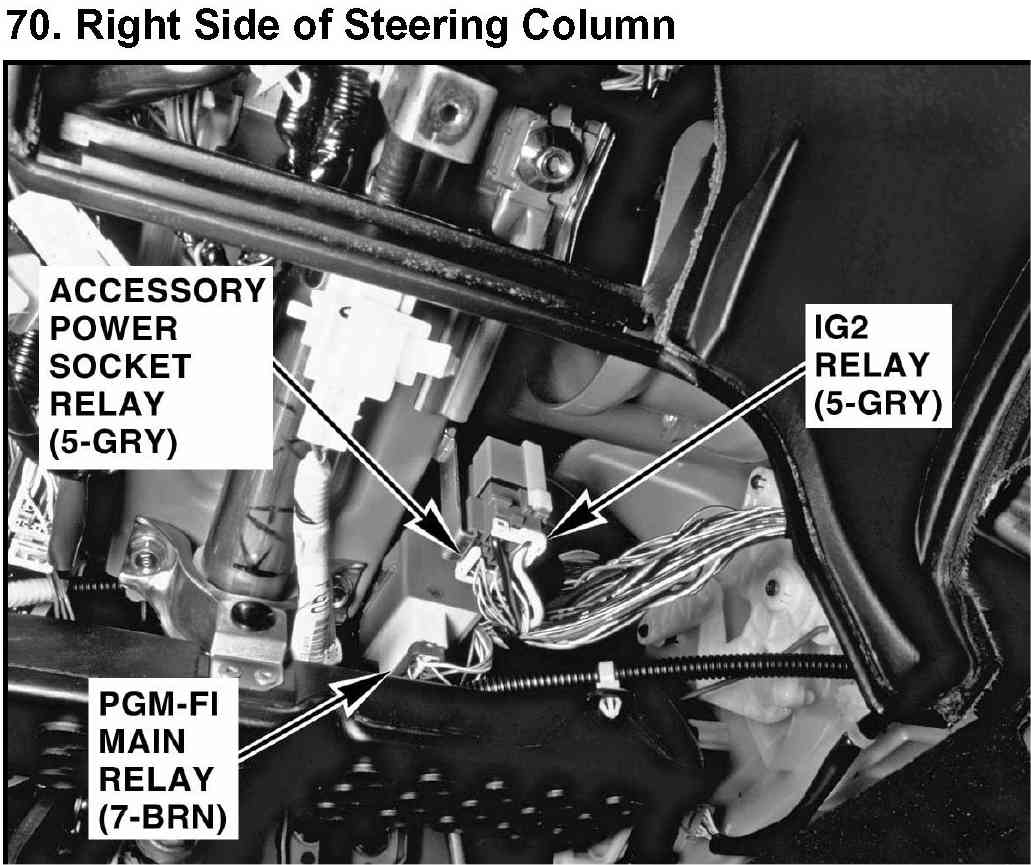

70. Right Side of Steering Column:

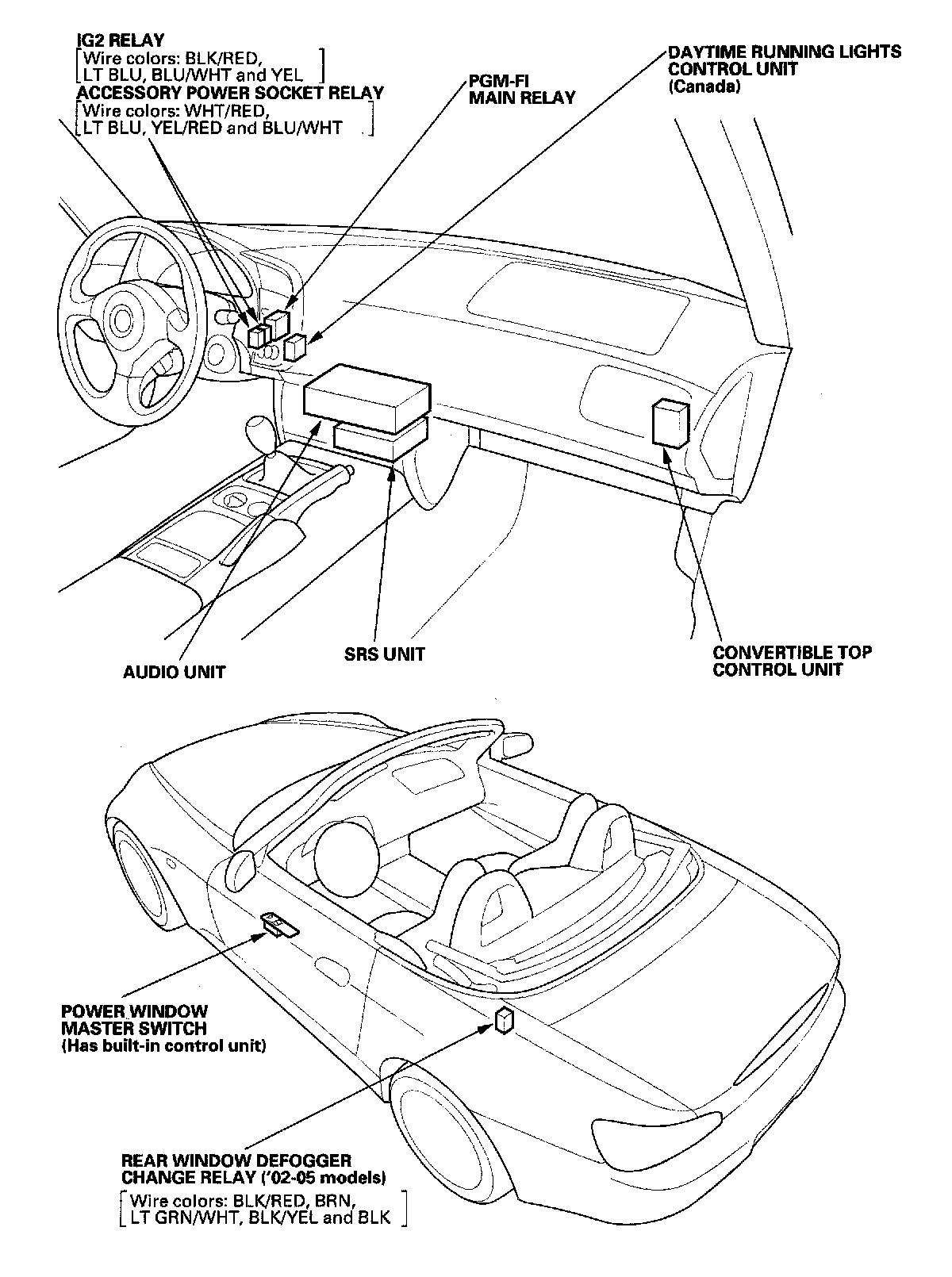

Relay And Control Unit Locations - Dashboard And Door:

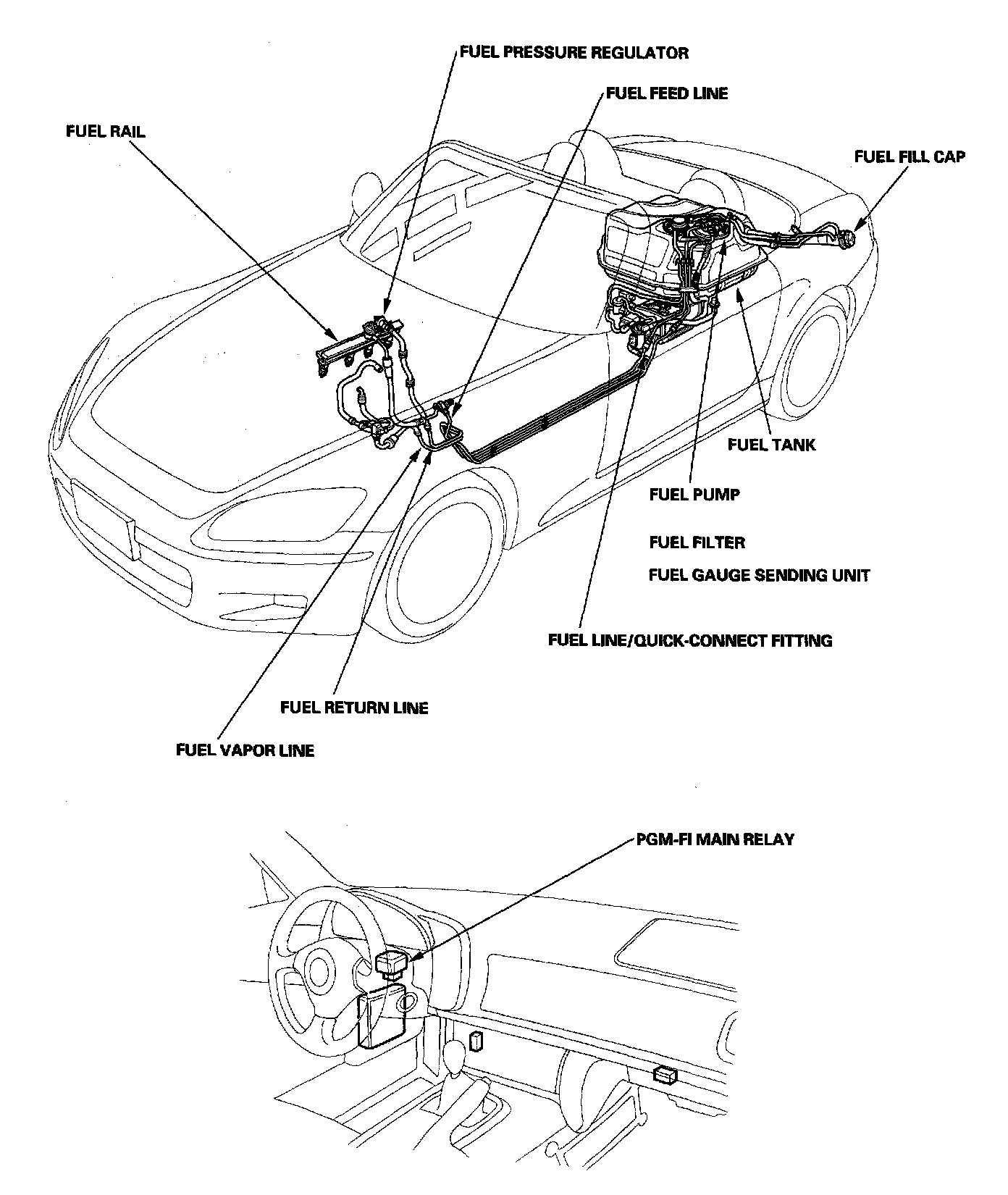

Fuel Supply System - Component Location Index:
