Primary HO2S Replacement

Primary HO2S Replacement

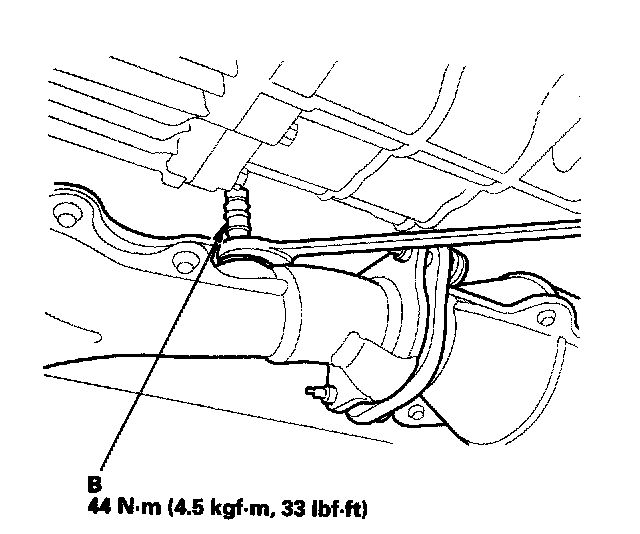

1. Disconnect primary HO2S (Sensor 1) 4P connector (A).




2. Remove the primary HO2S (Sensor 1) (B).
3. Install the primary HO2S (Sensor 1) in the reverse order of removal.
