Mode 6 Data



SAE J1979 Mode $06 Test Information: All 2005 Hondas

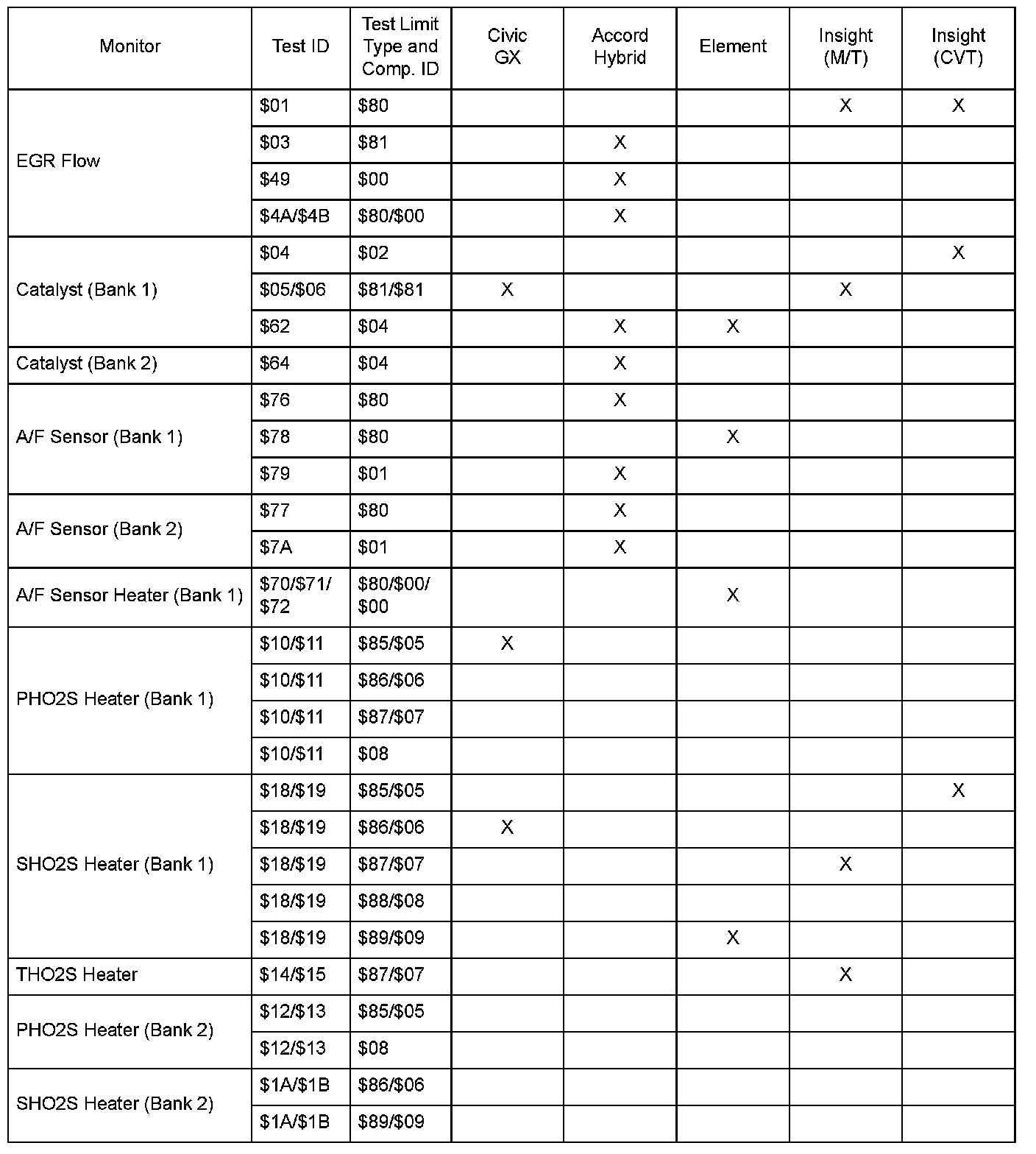

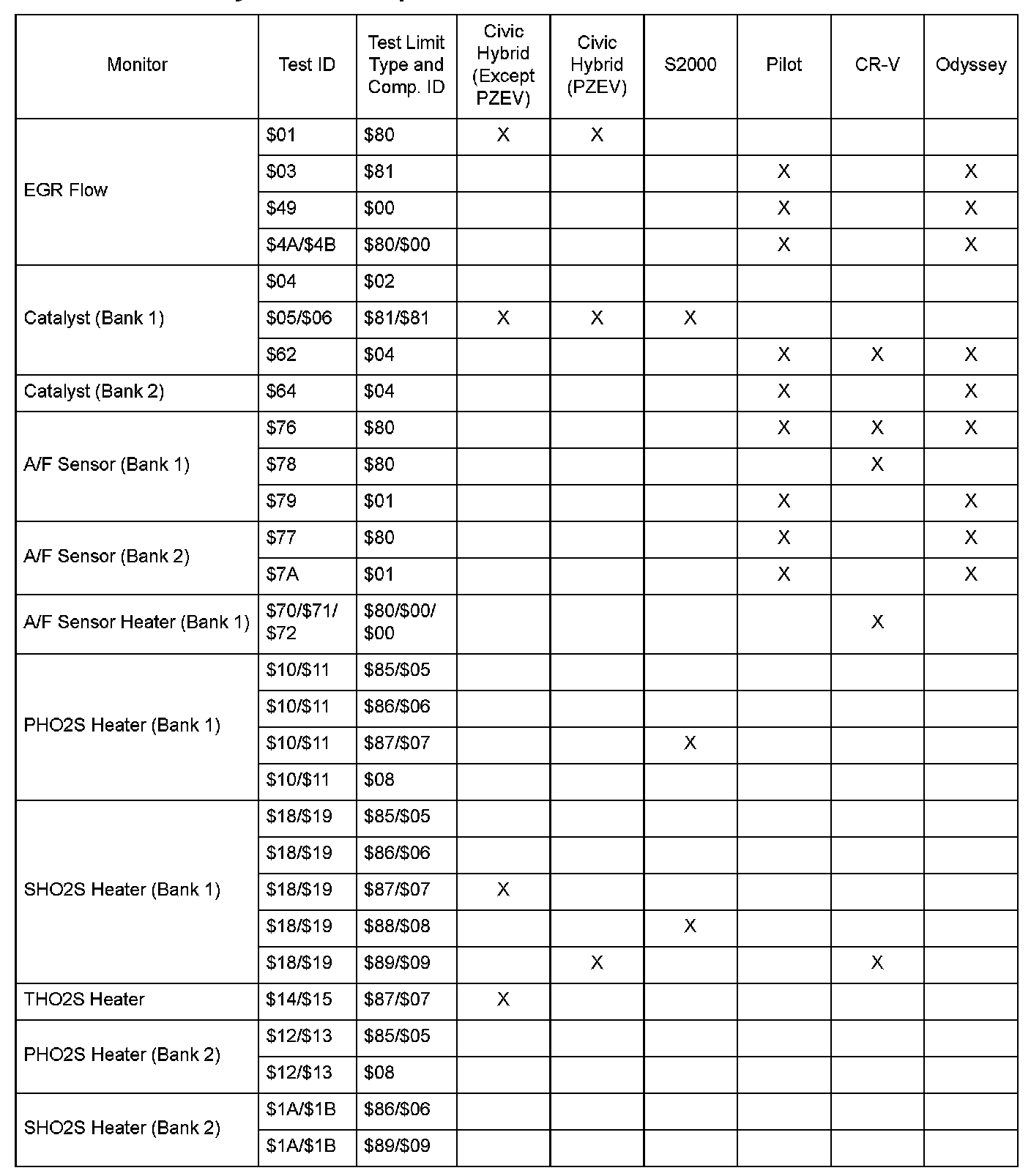

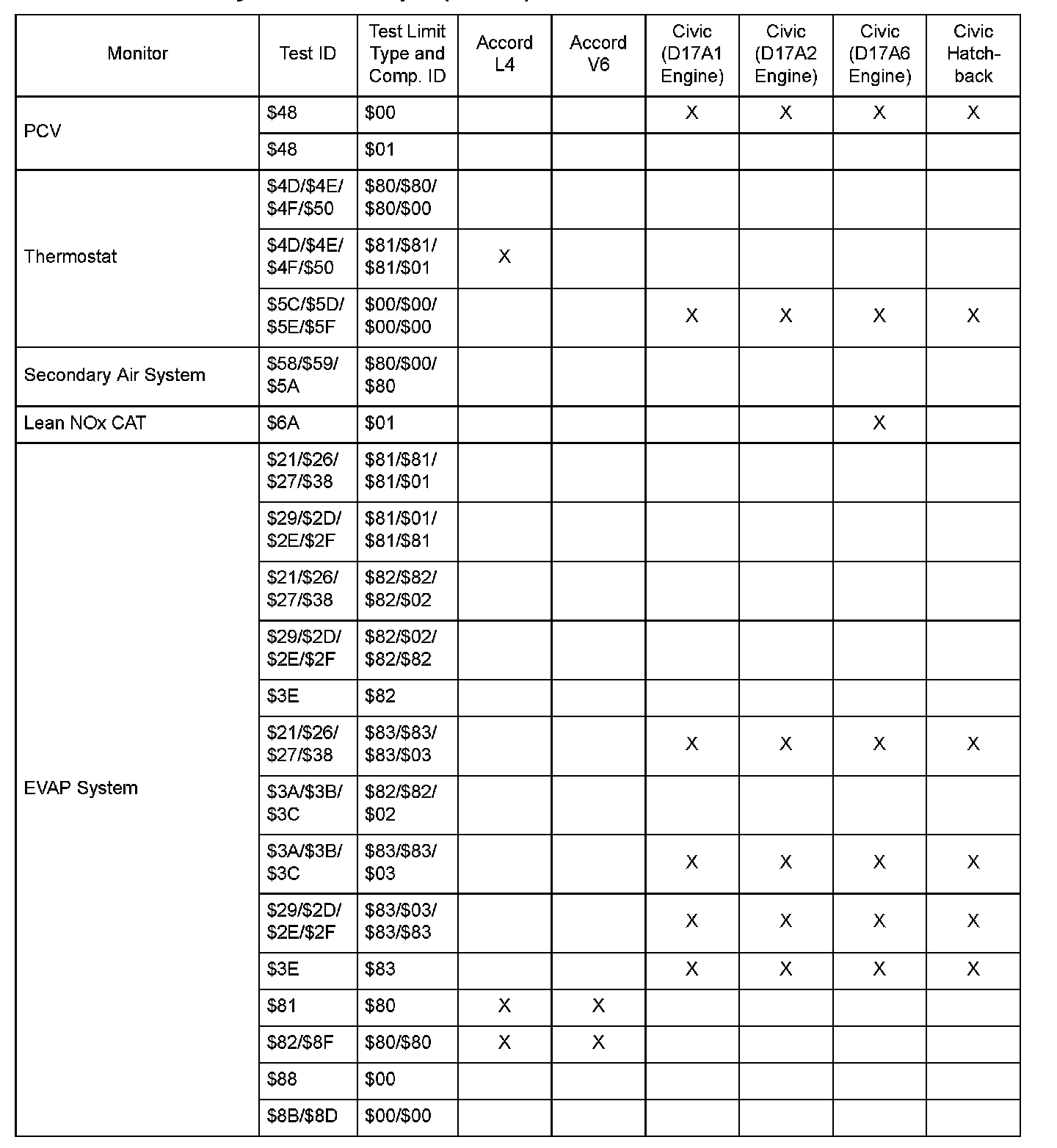

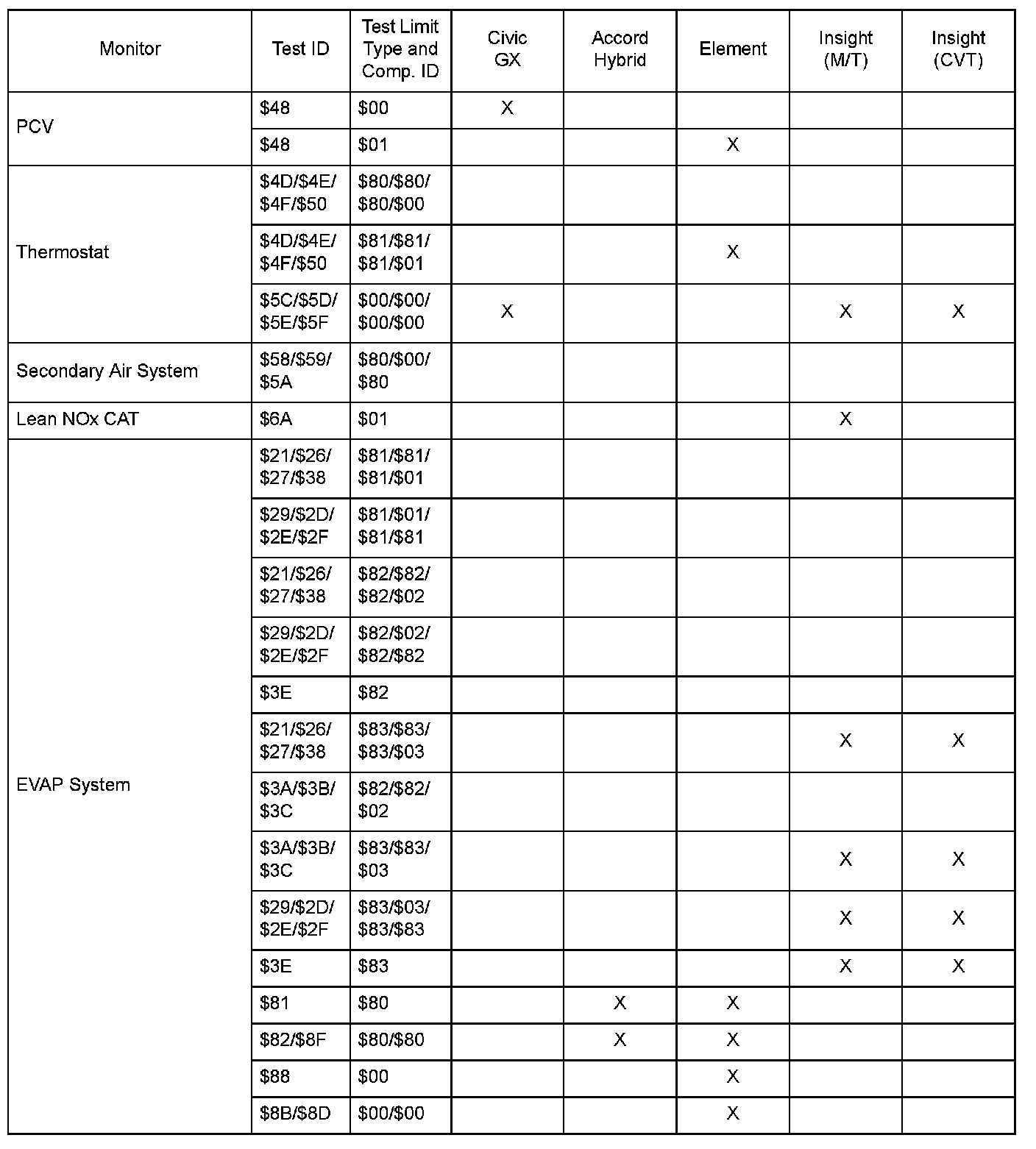

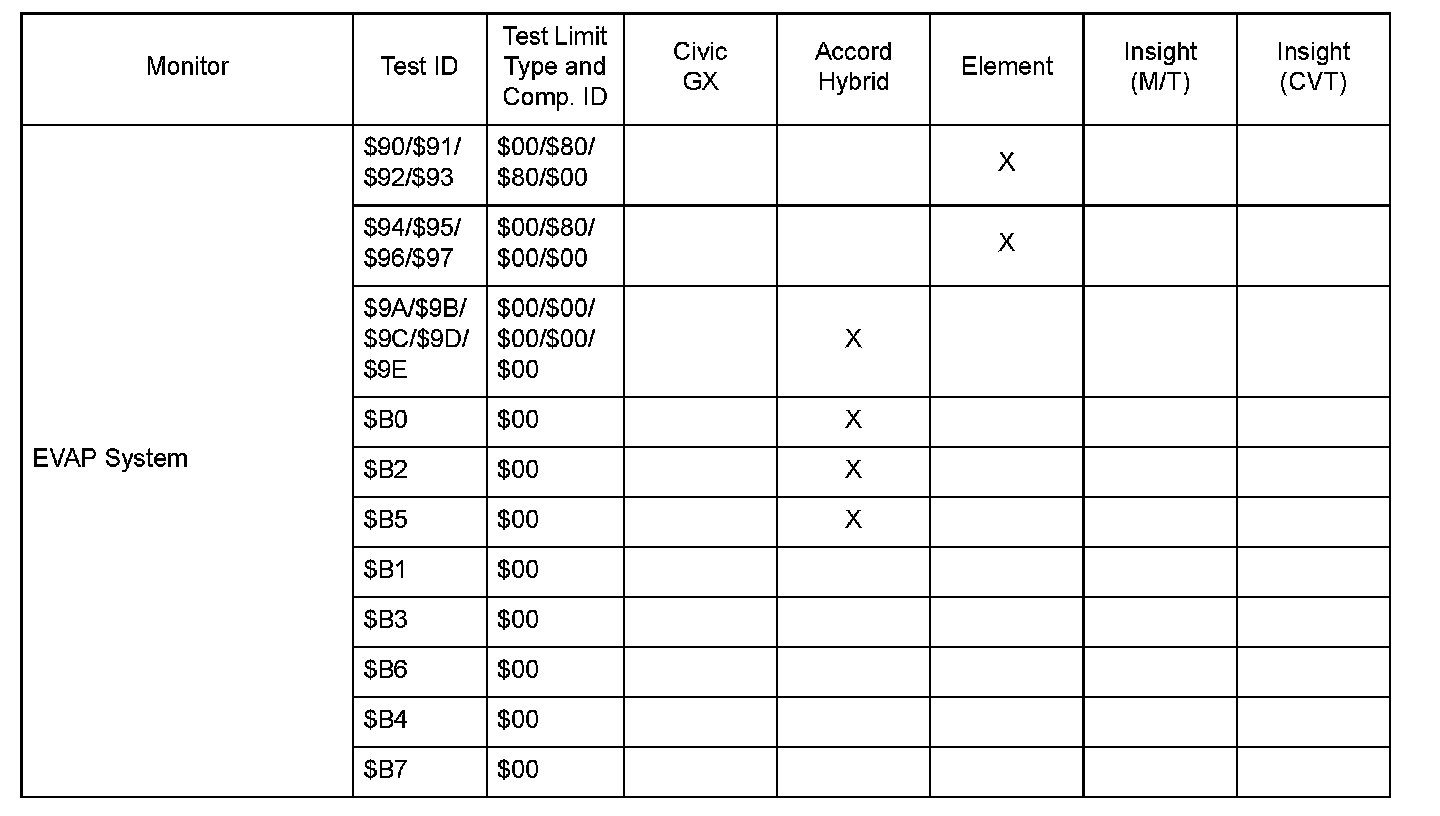

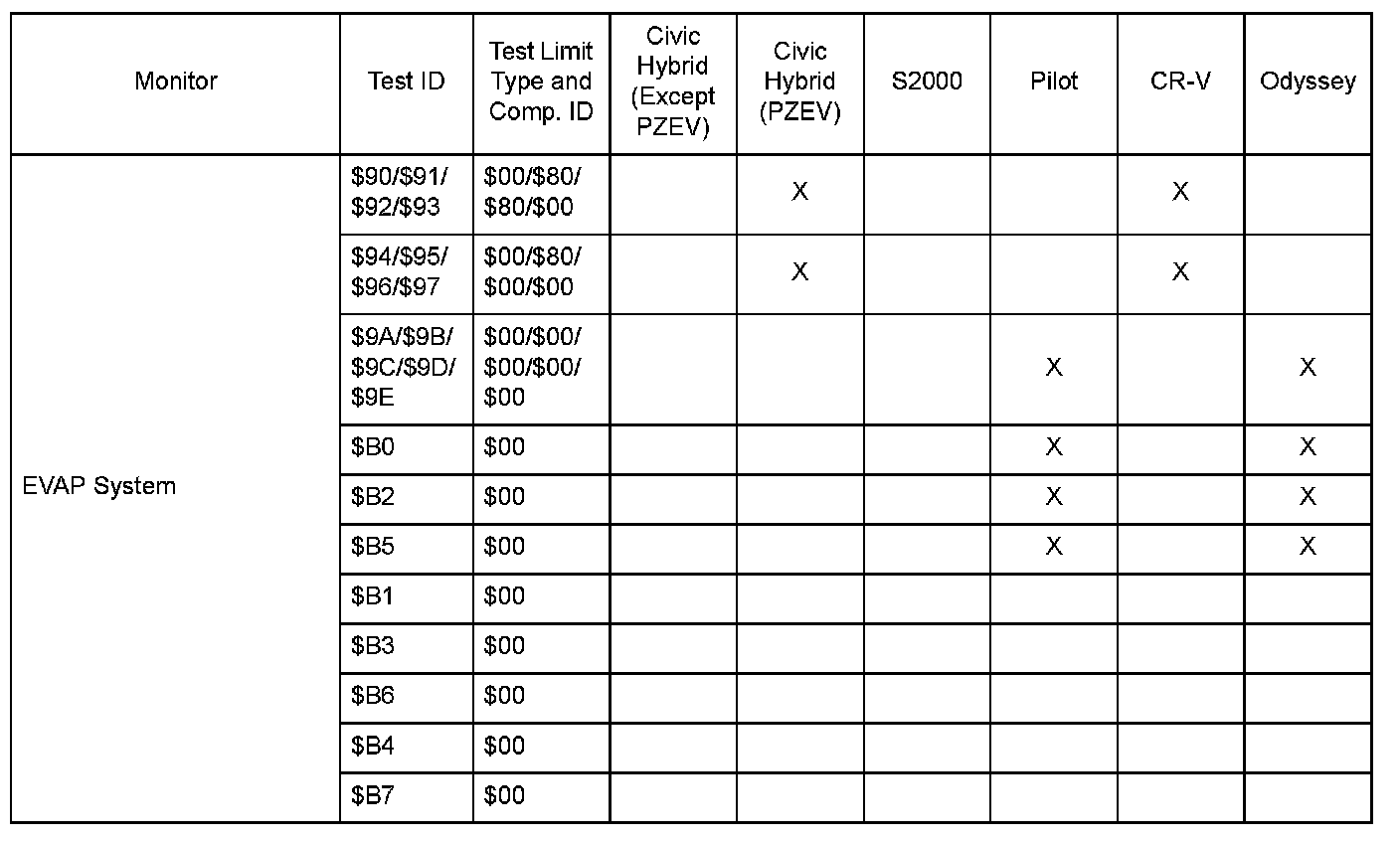

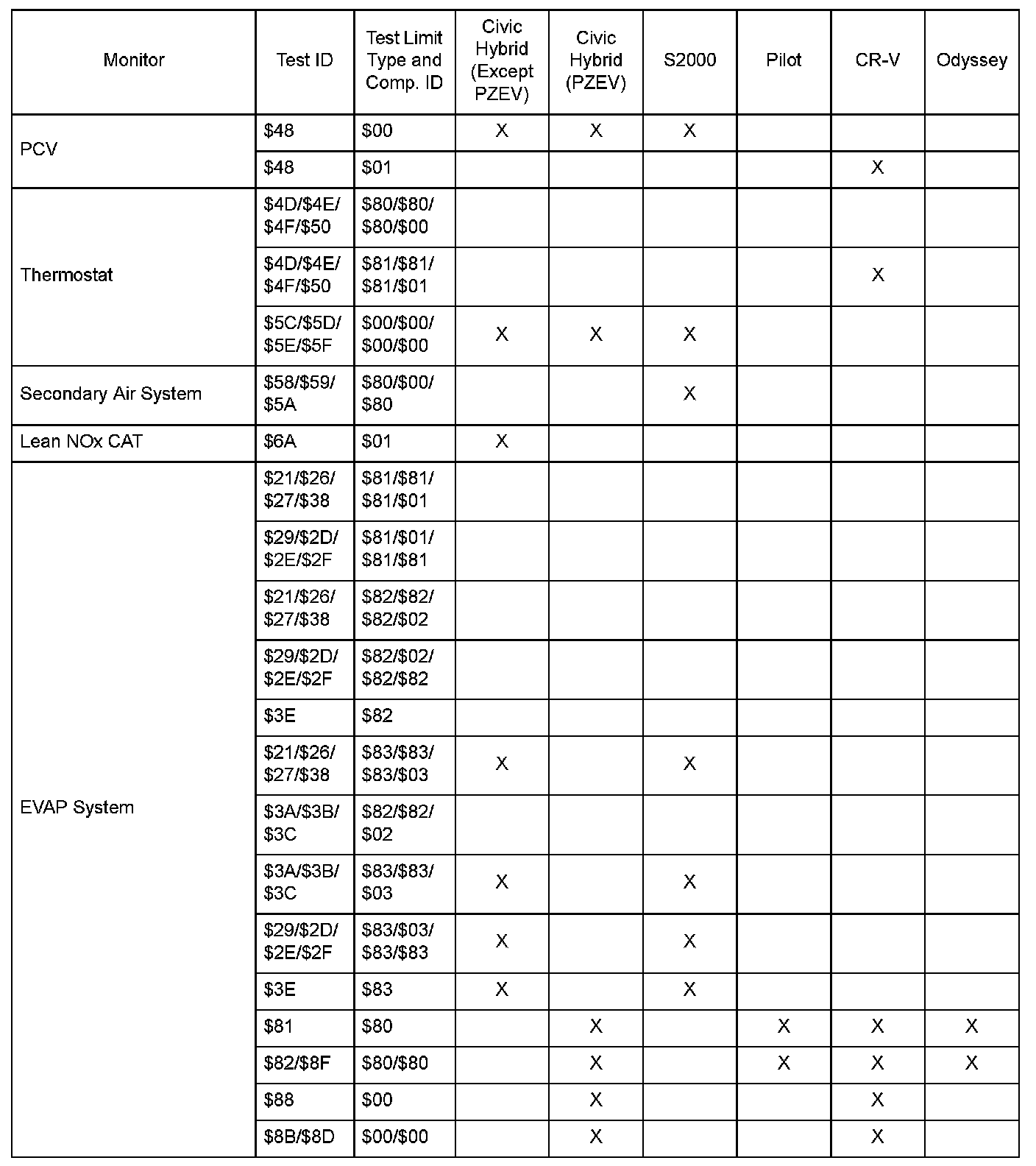

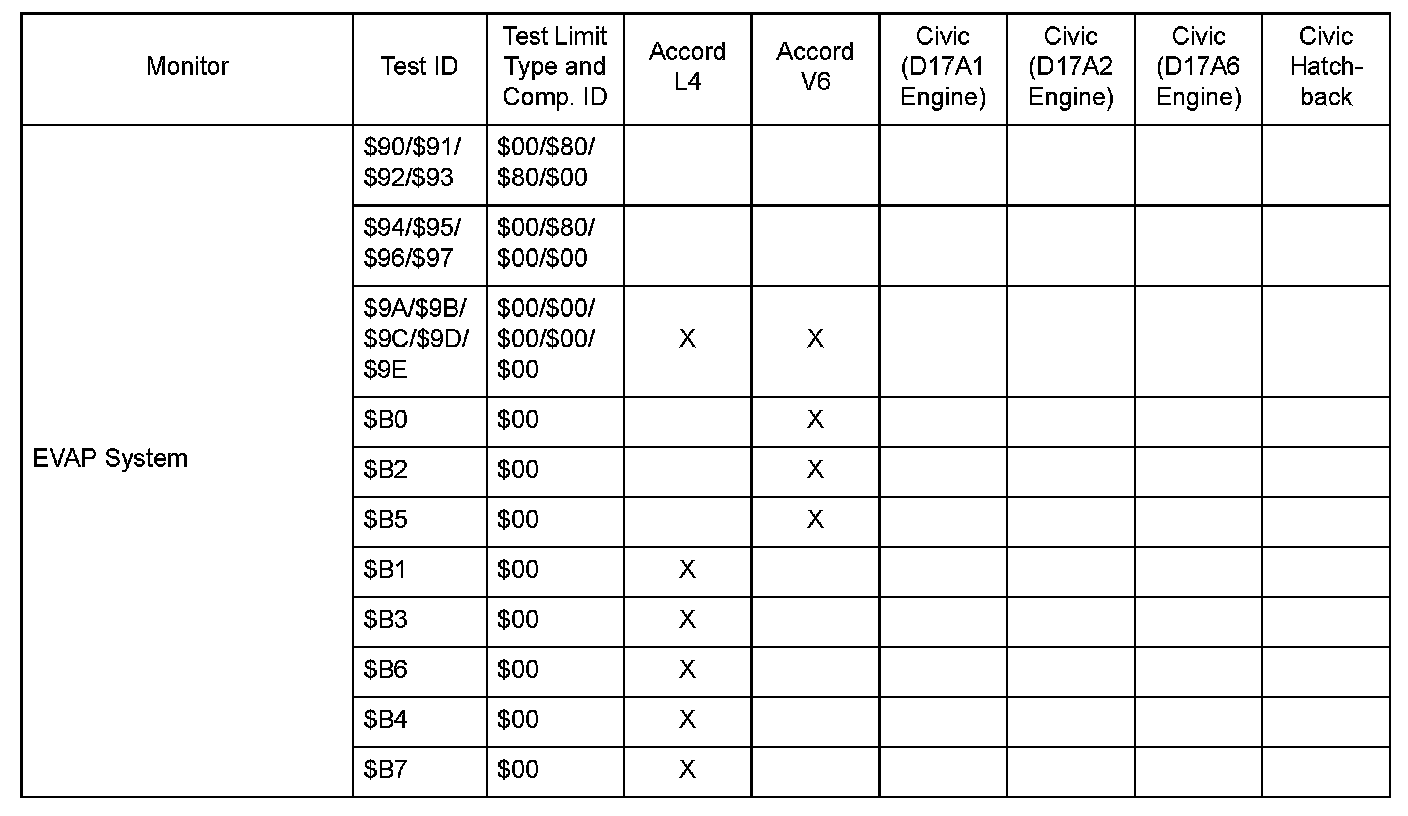

Mode $06 Test ID by Model: Group I












Mode $06 Test ID by Model: Group 2













Mode $06 Test ID by Model: Group 3

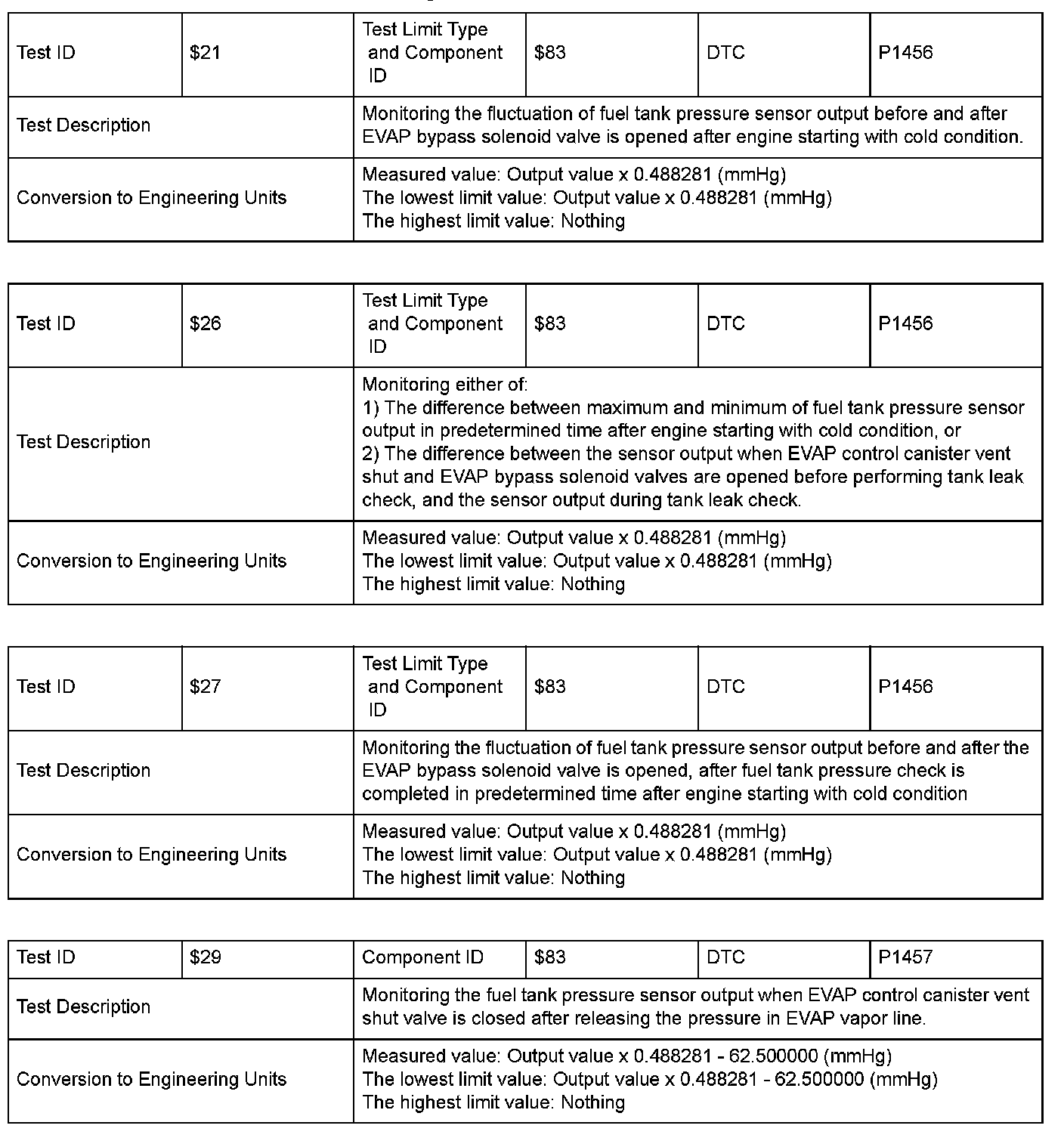

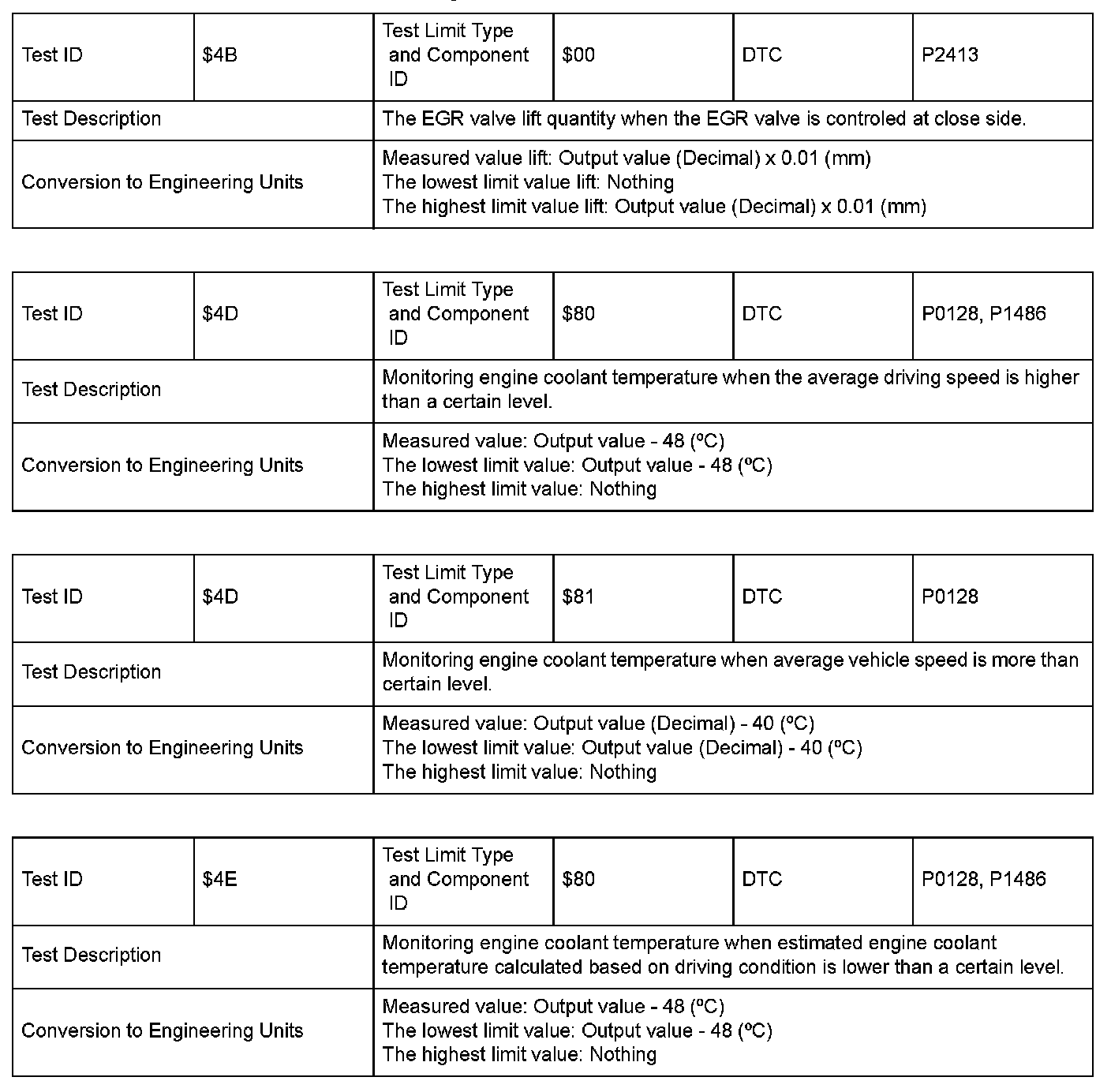

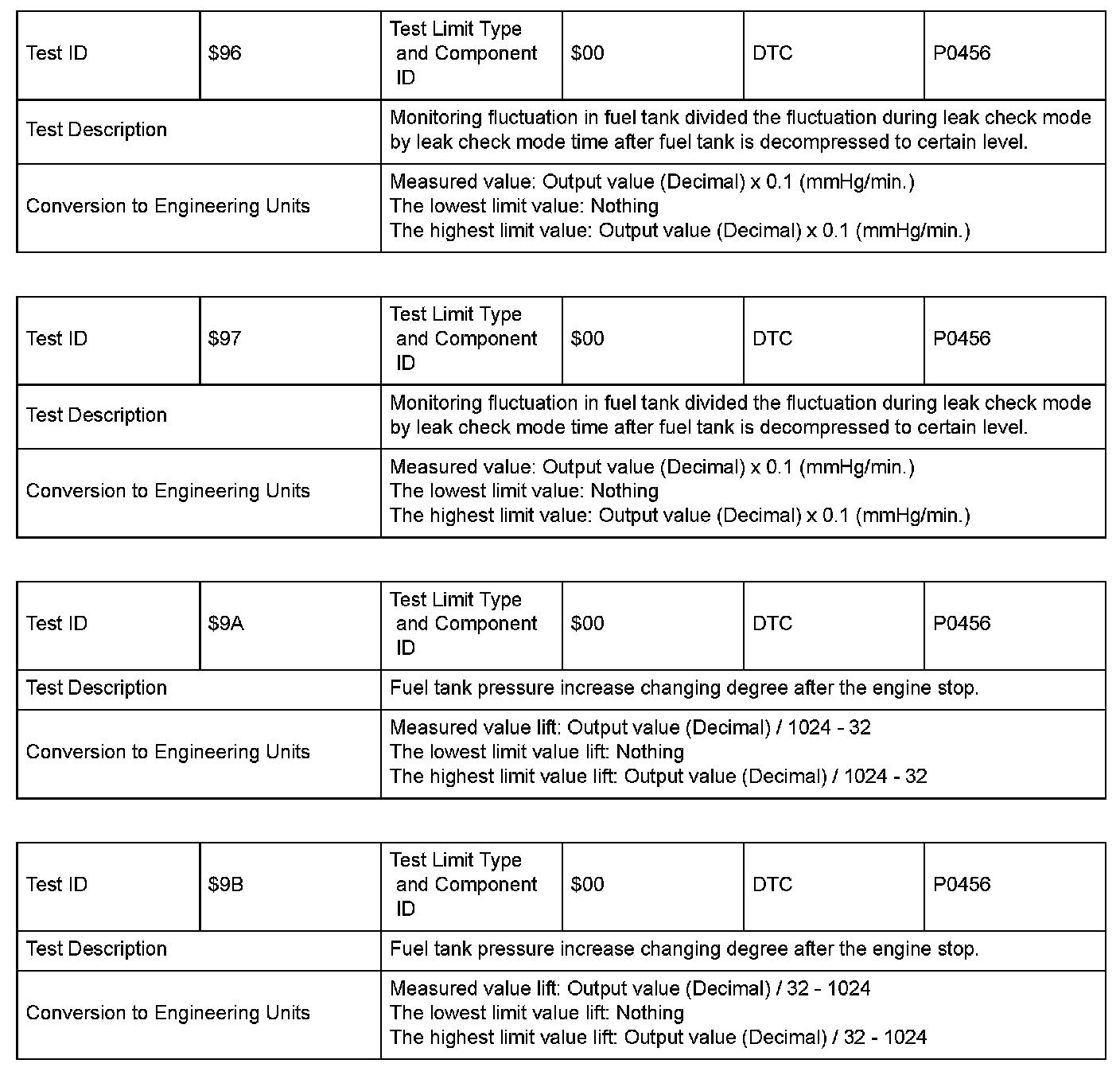

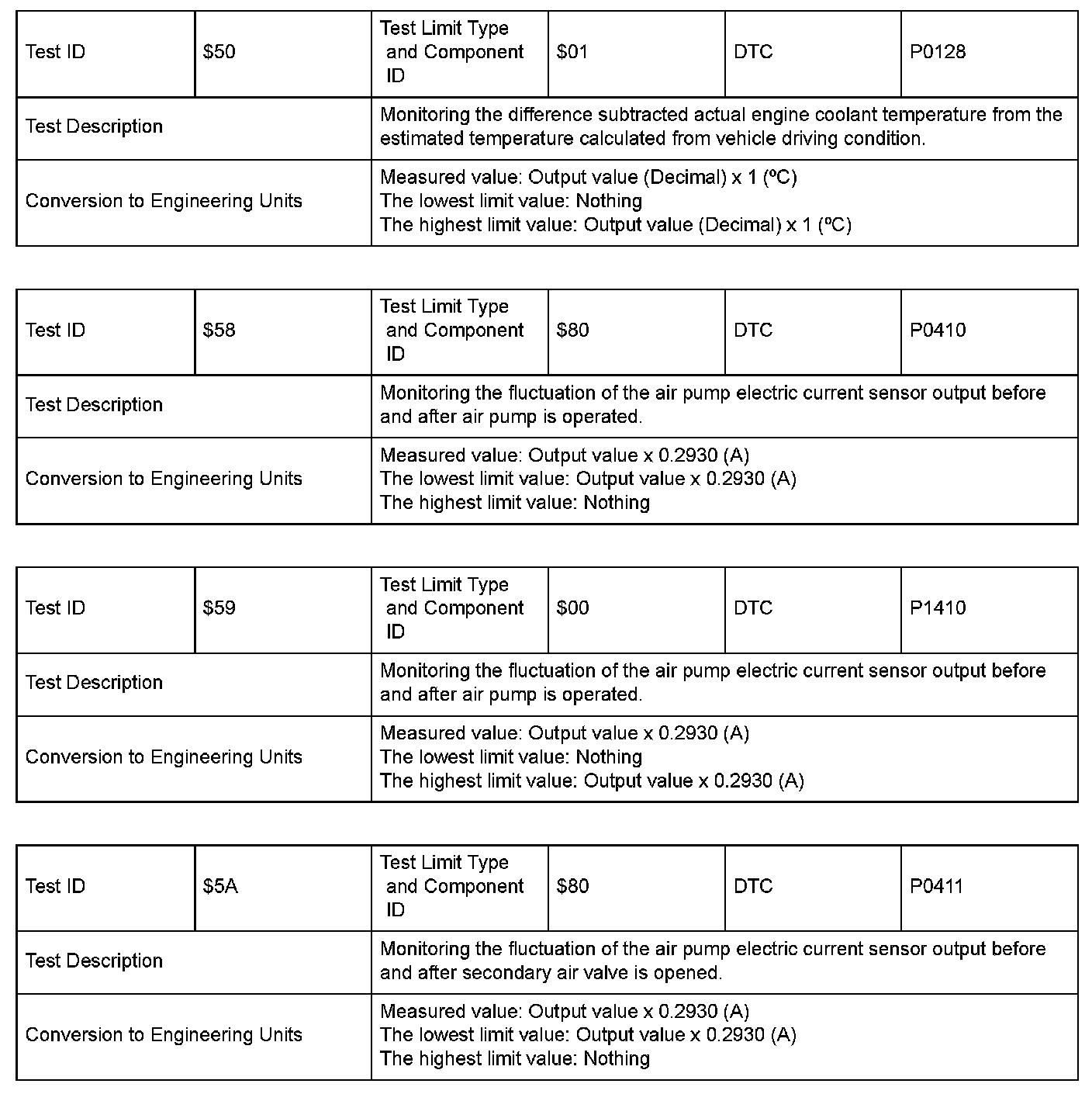

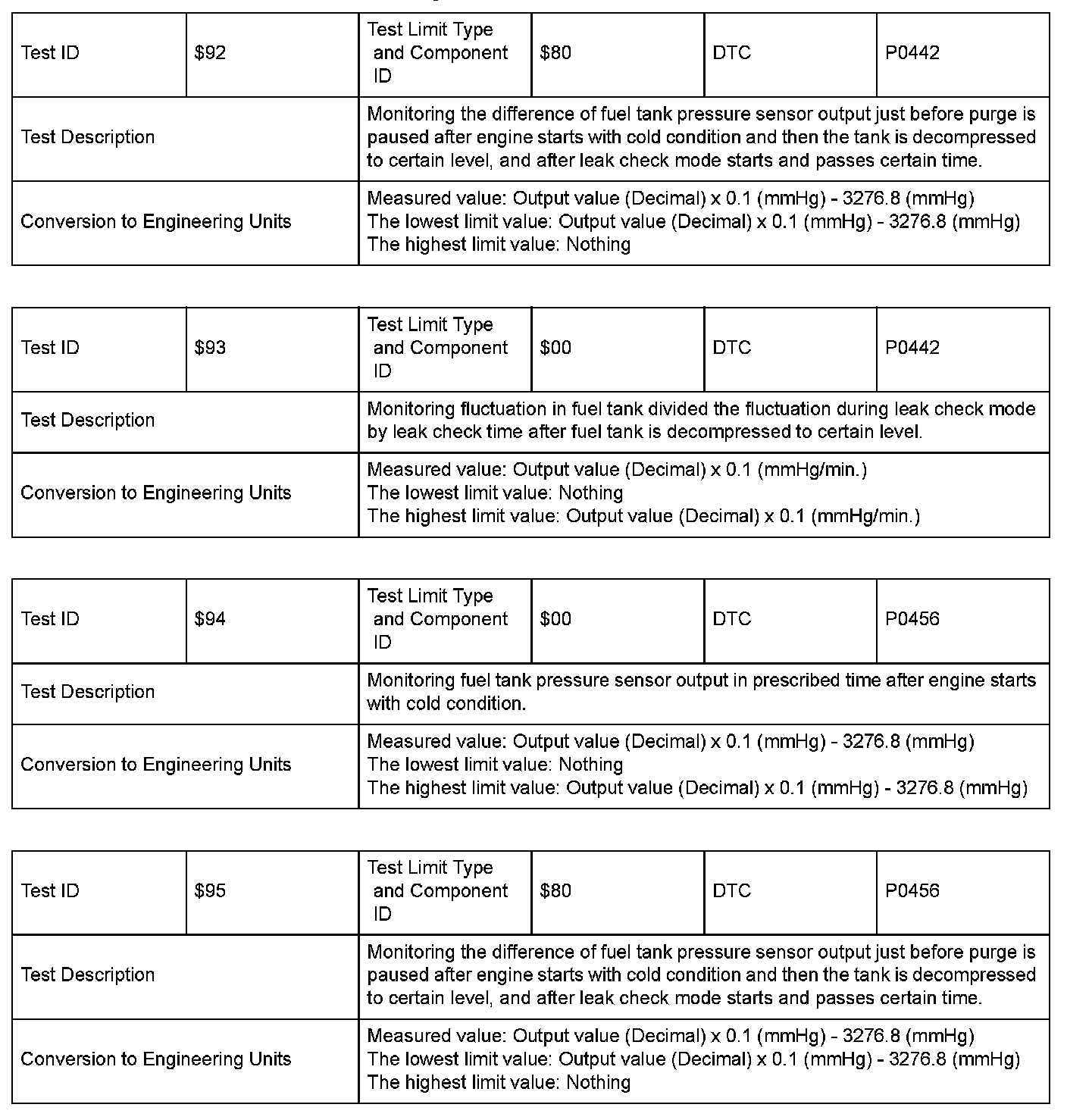

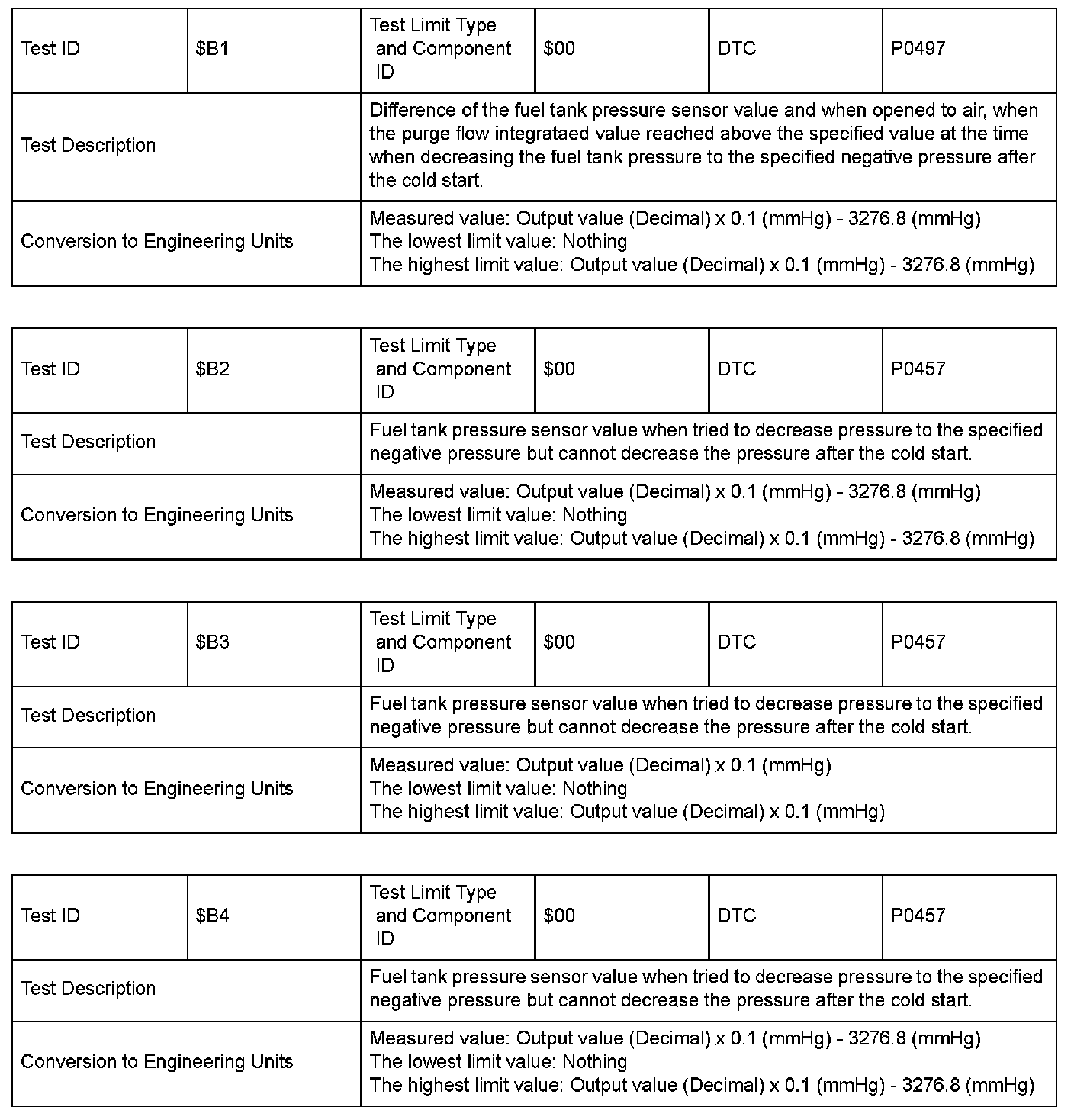

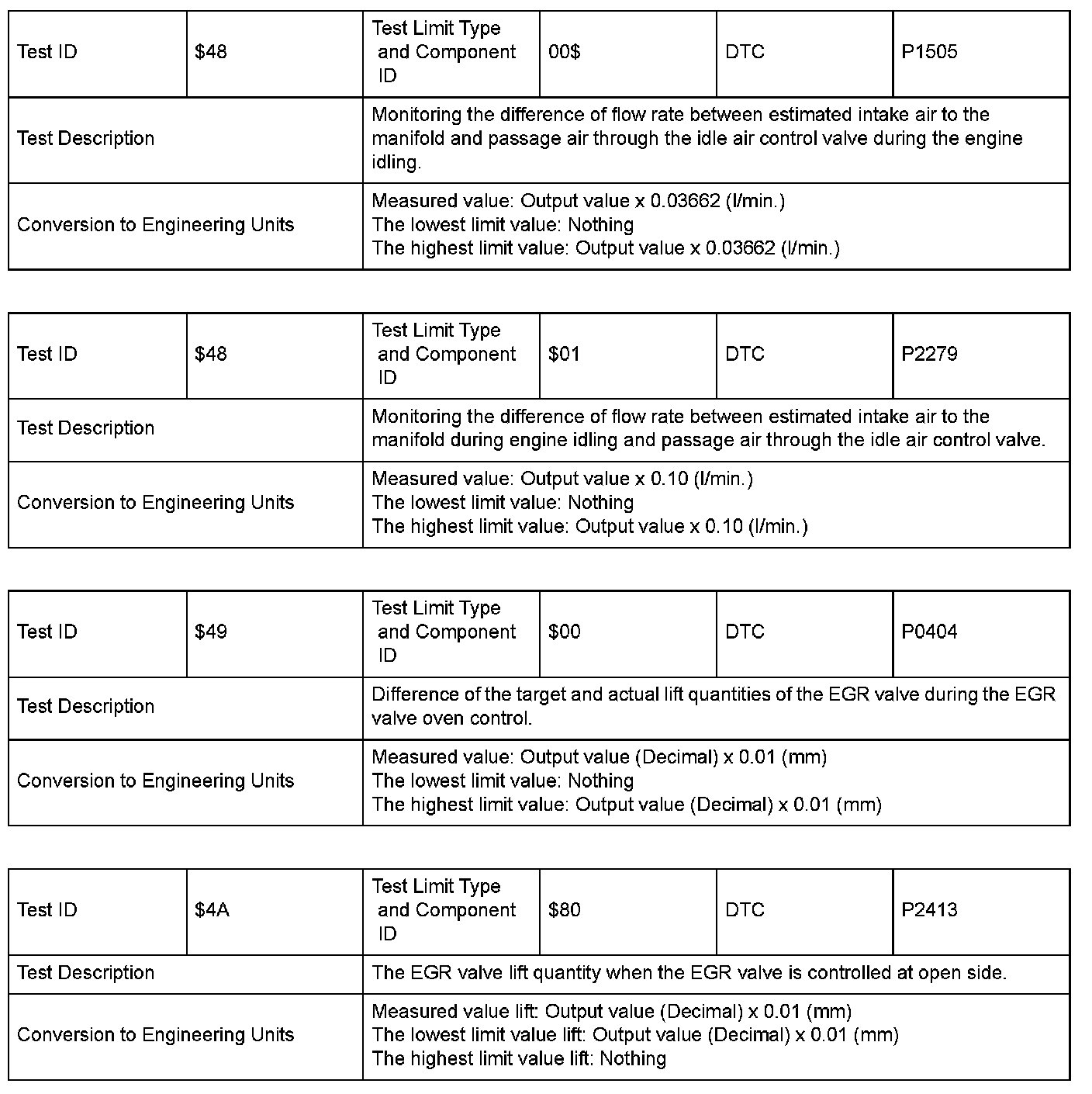

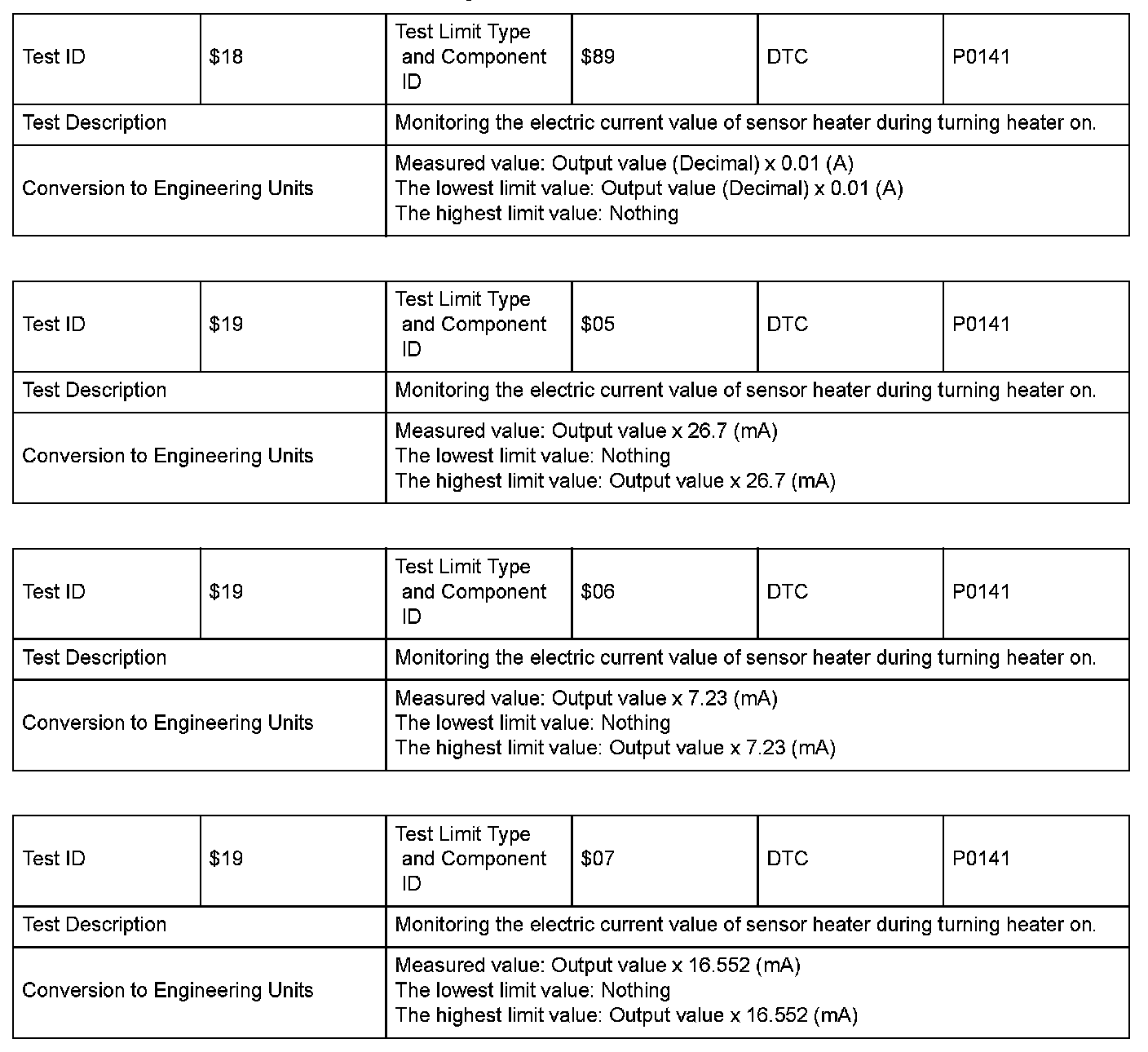

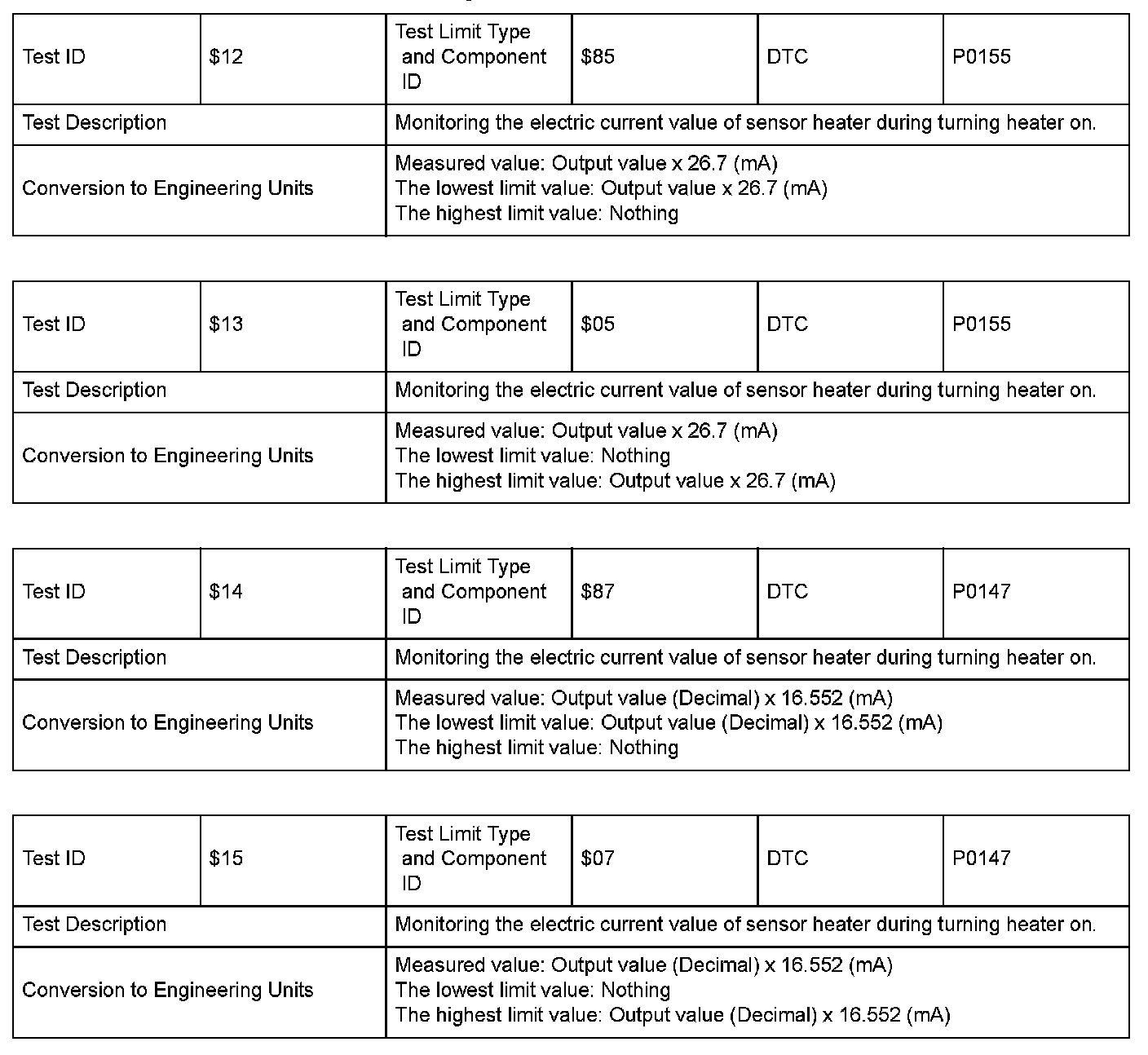

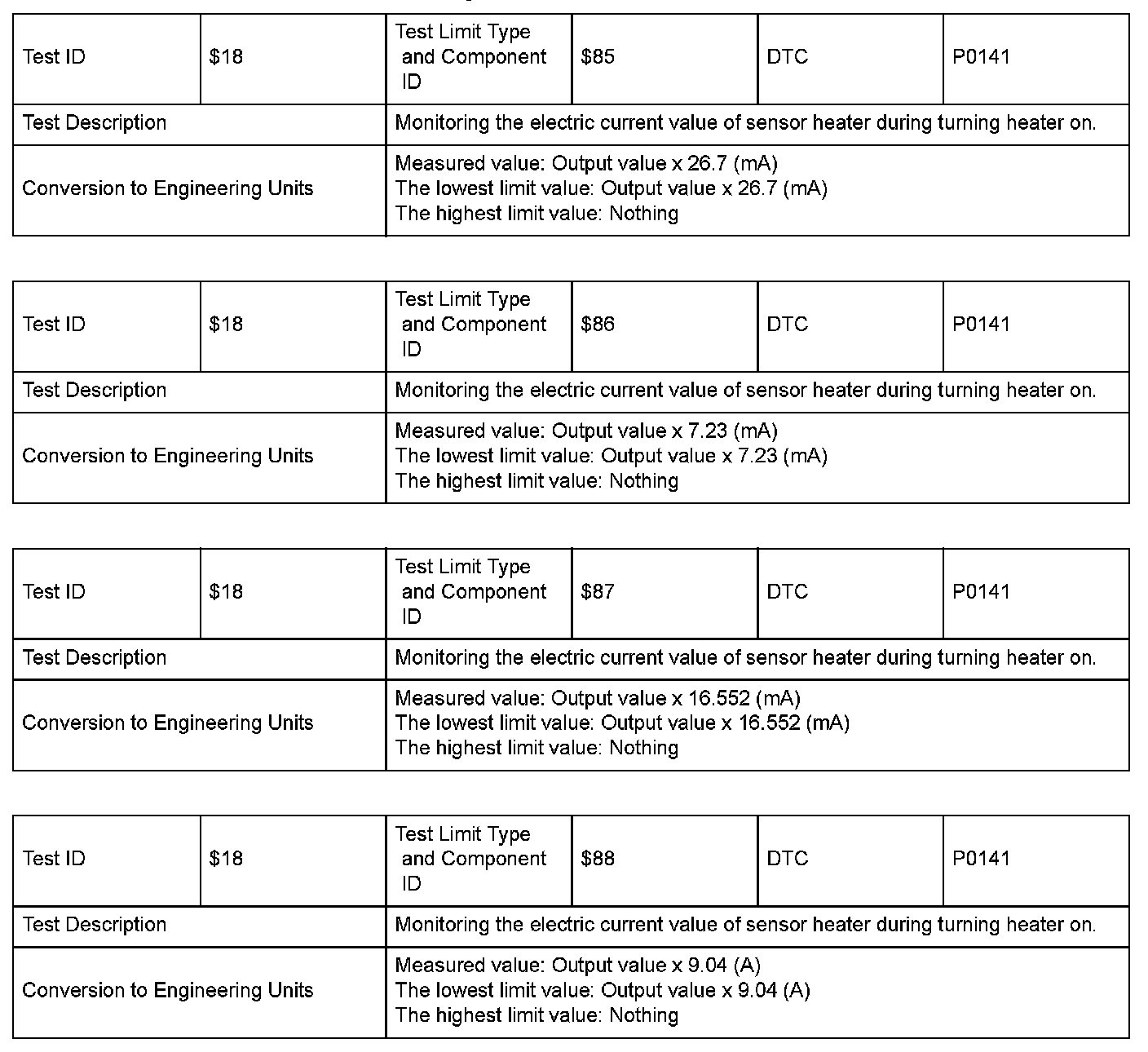

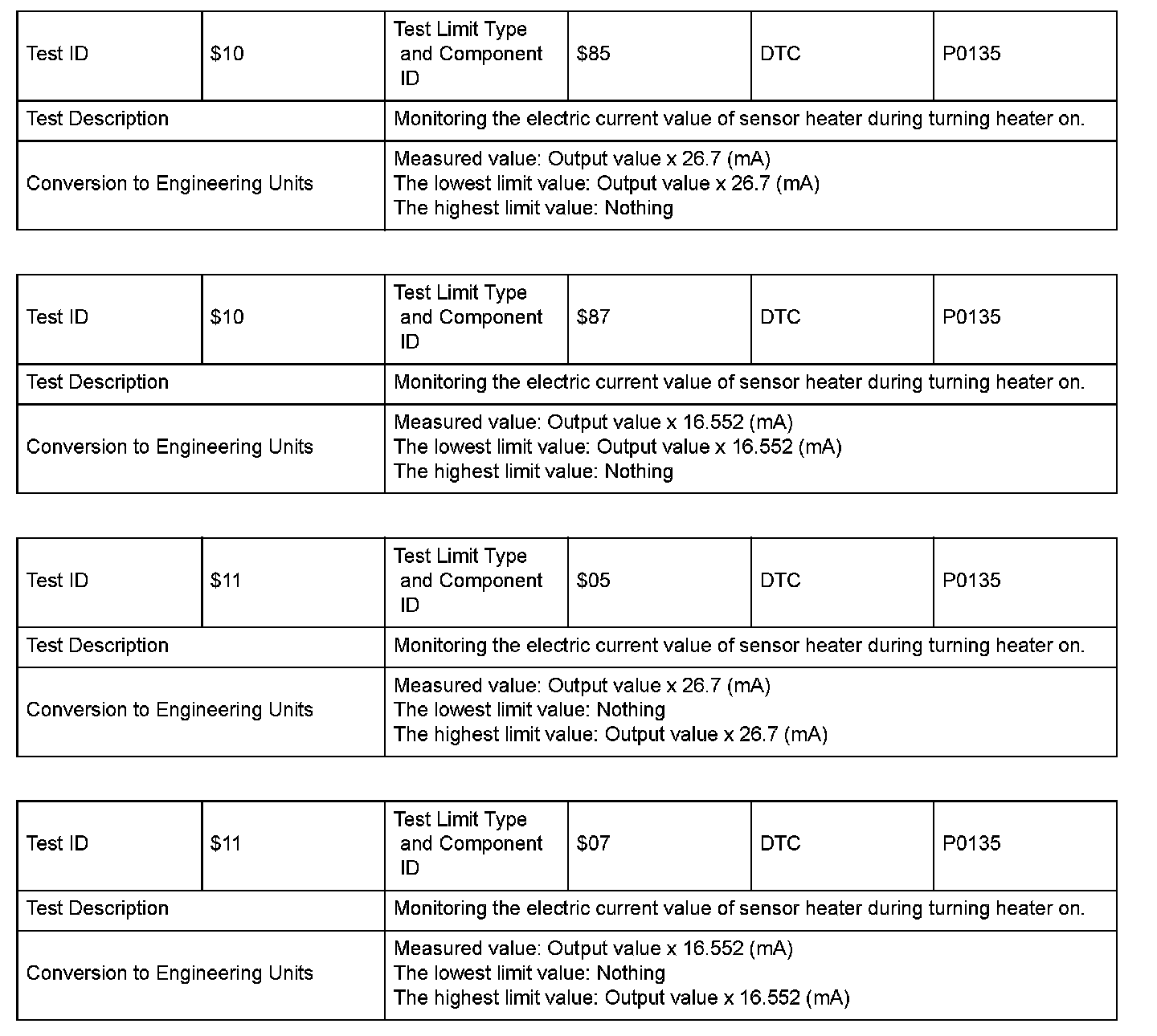

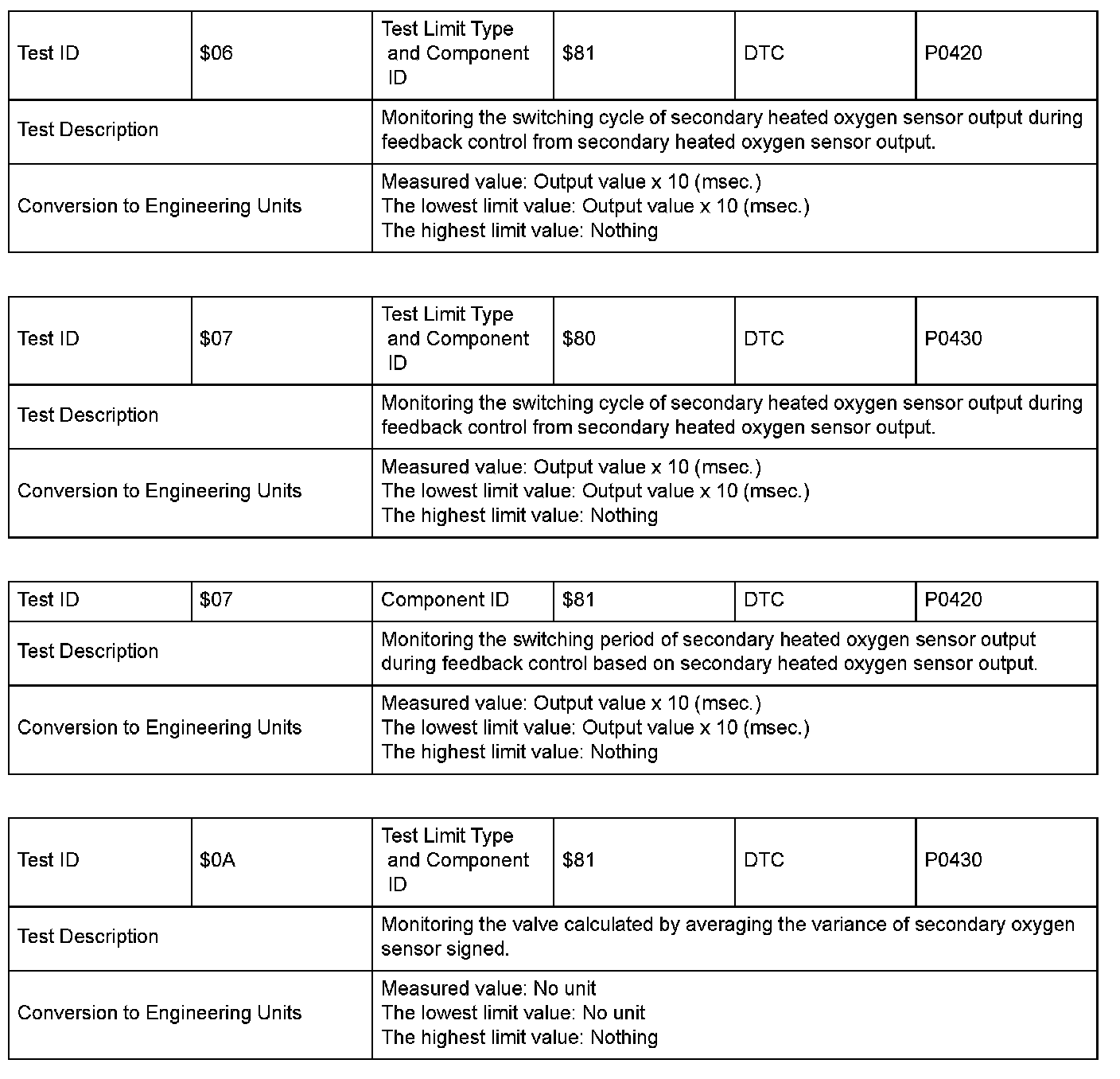

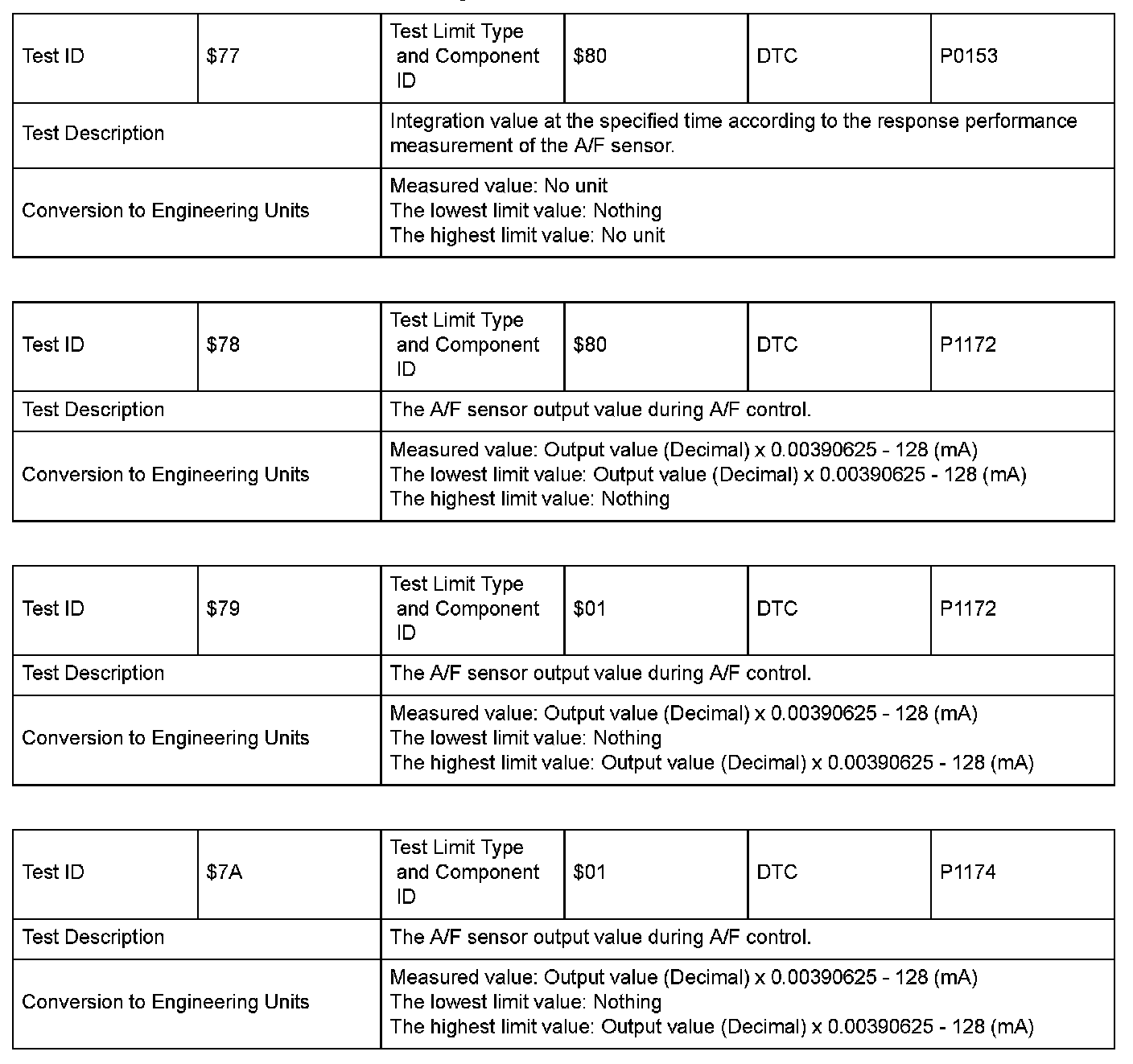

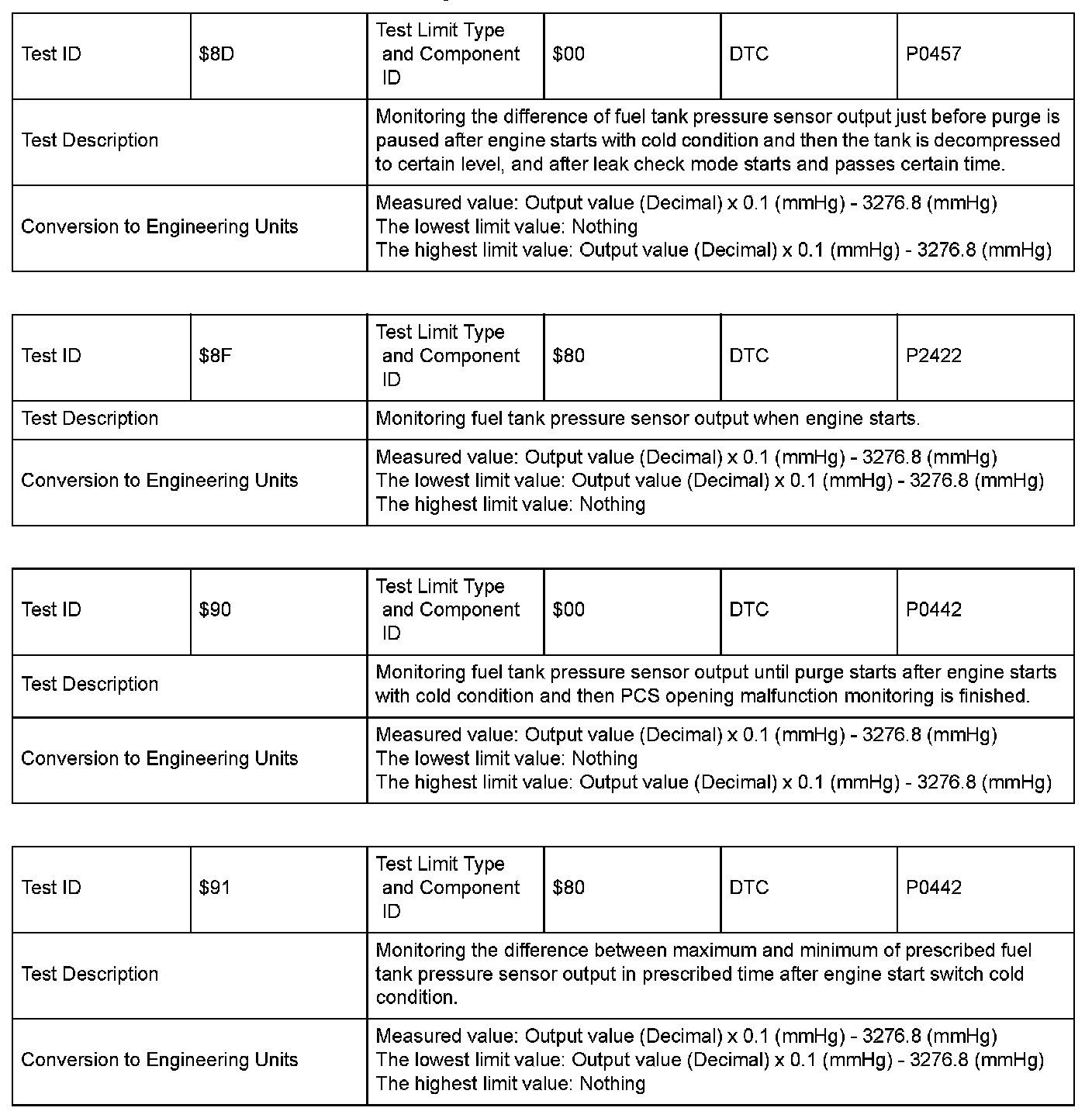

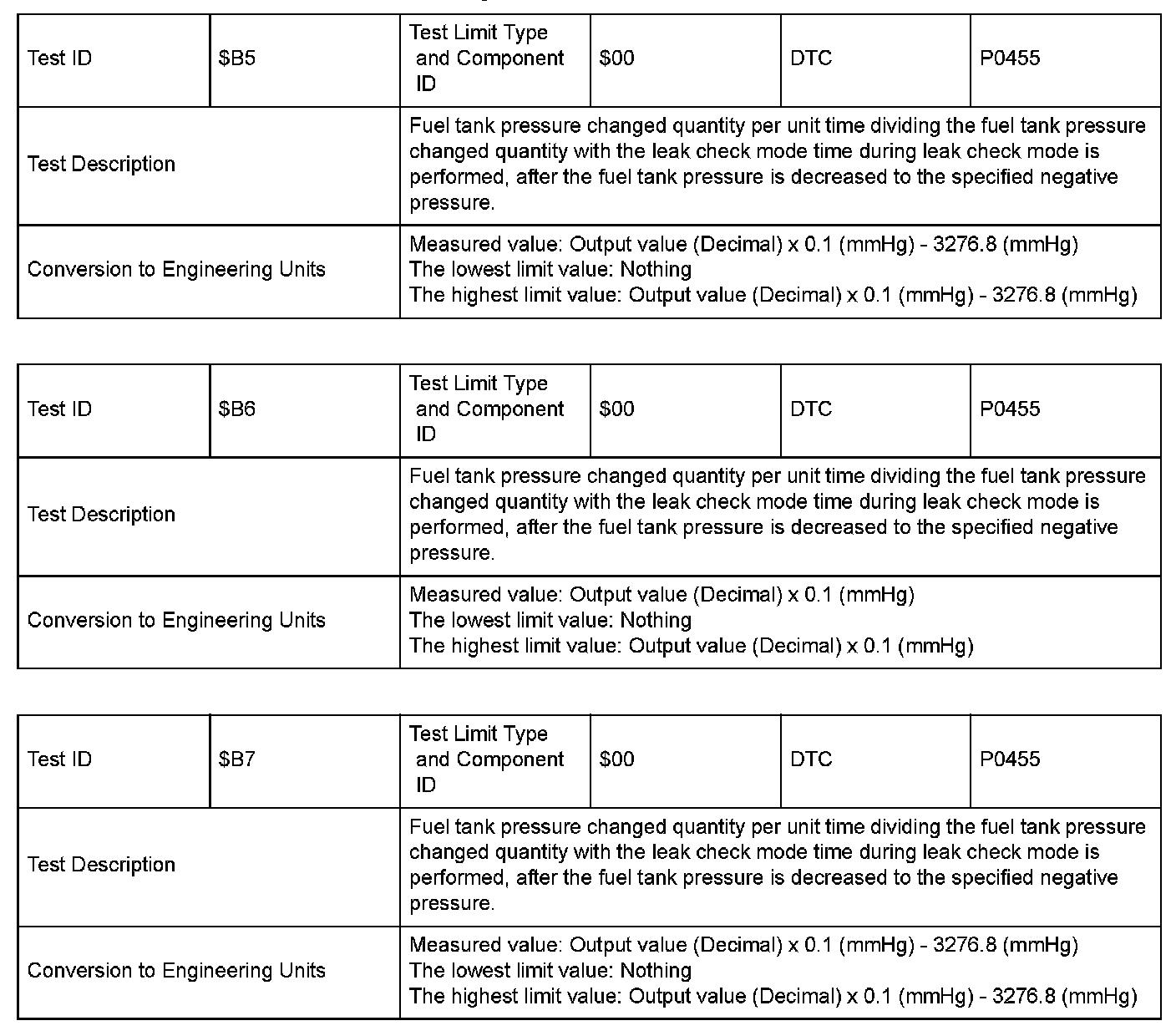

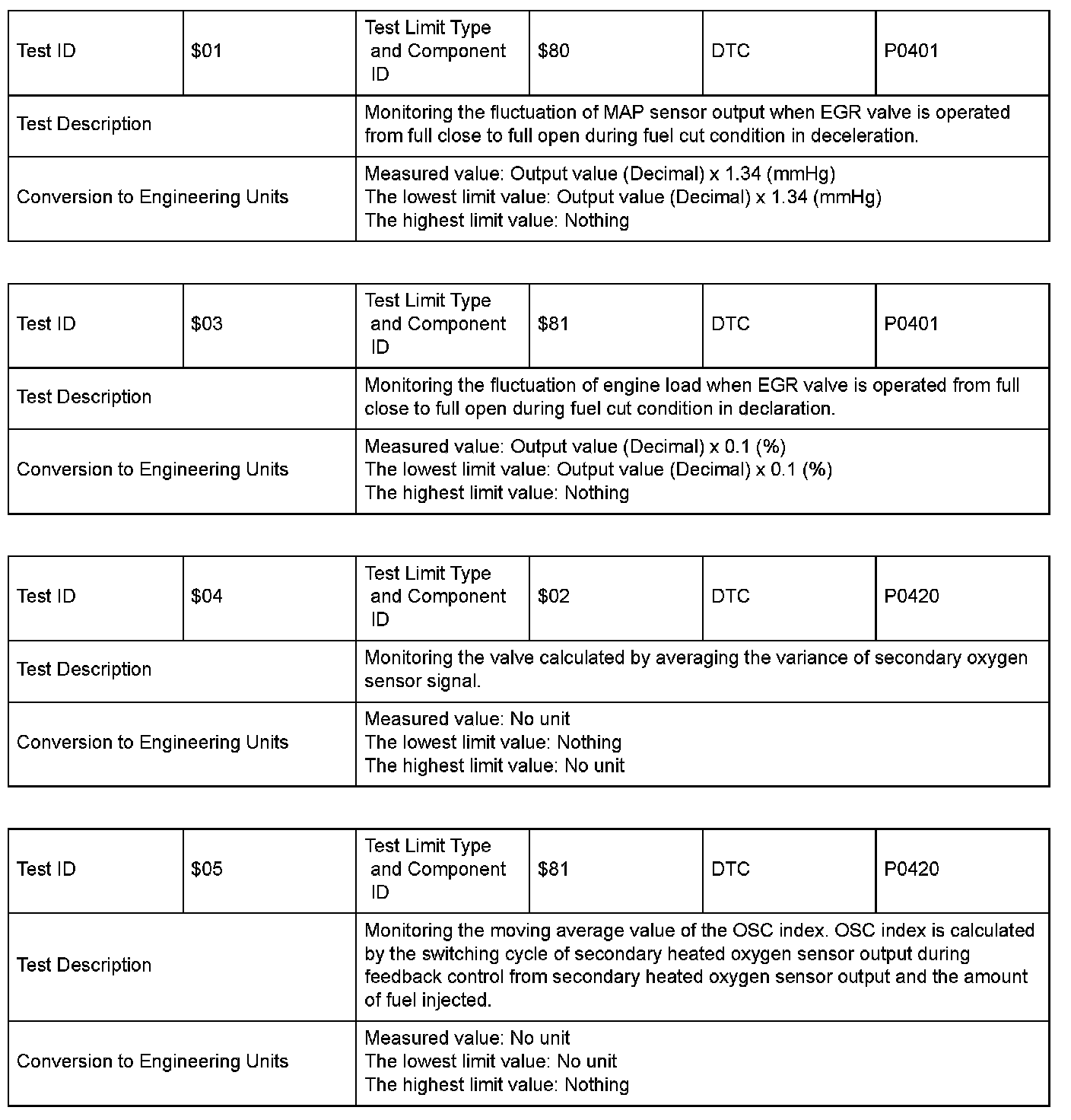

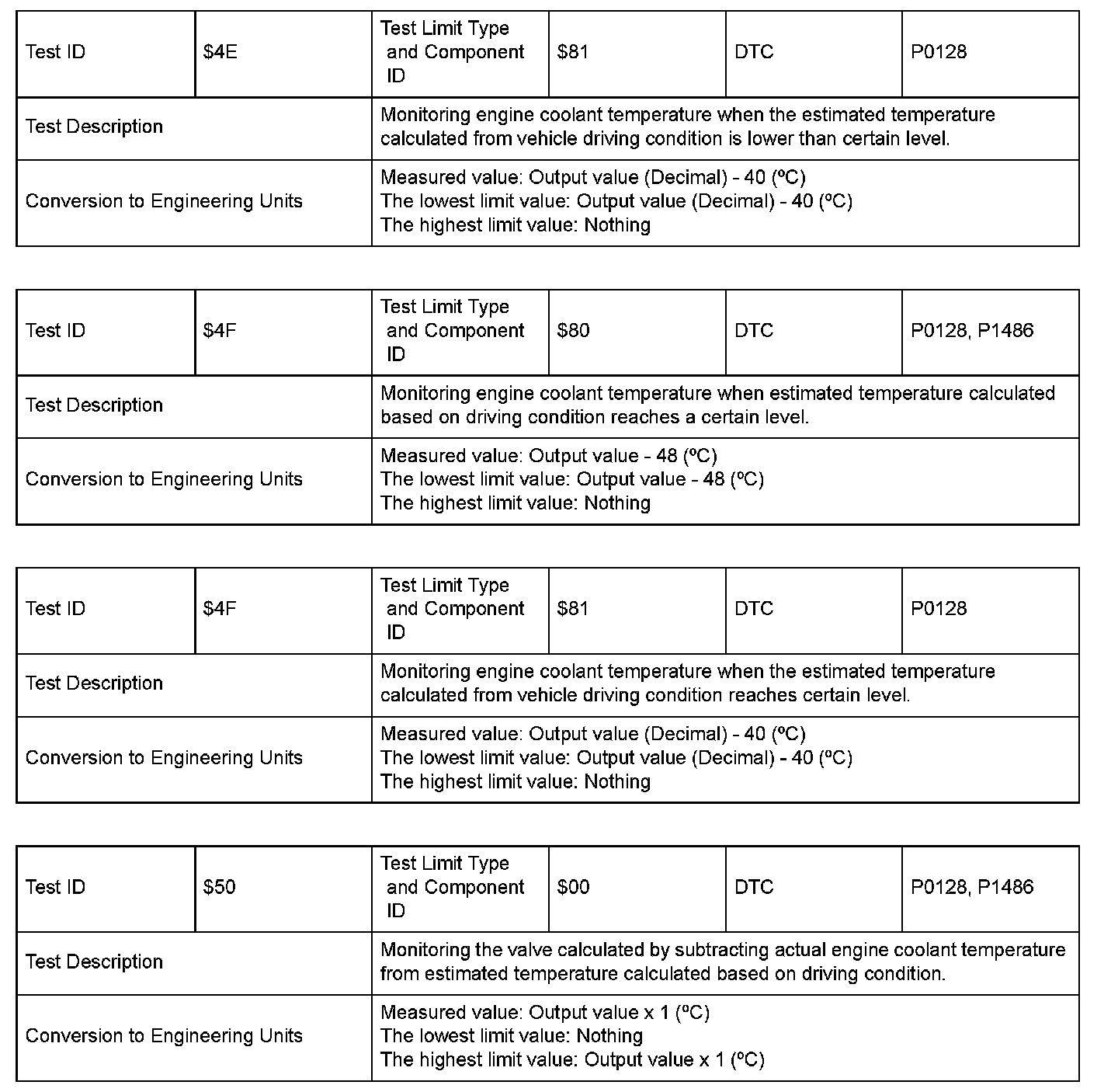

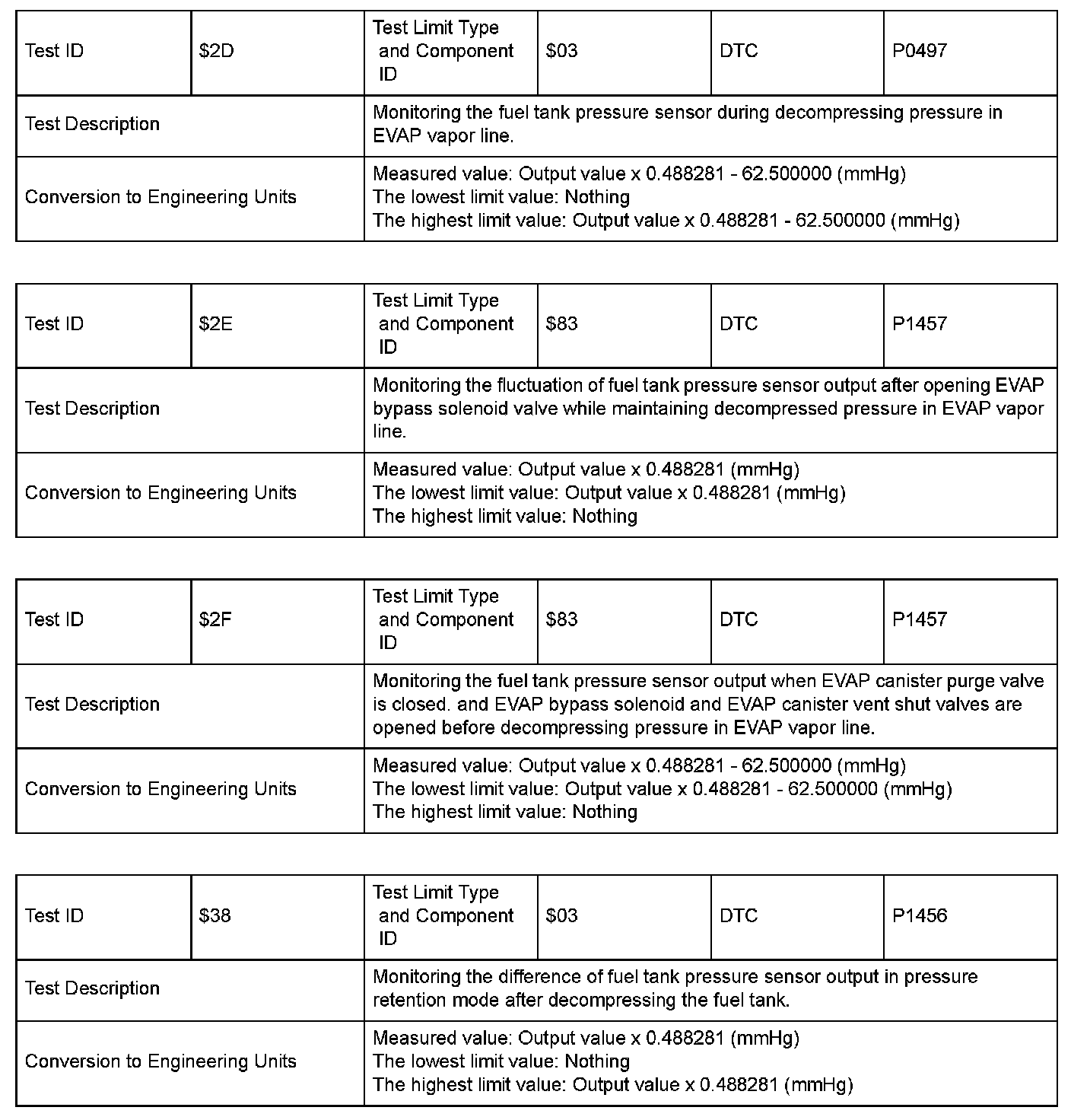

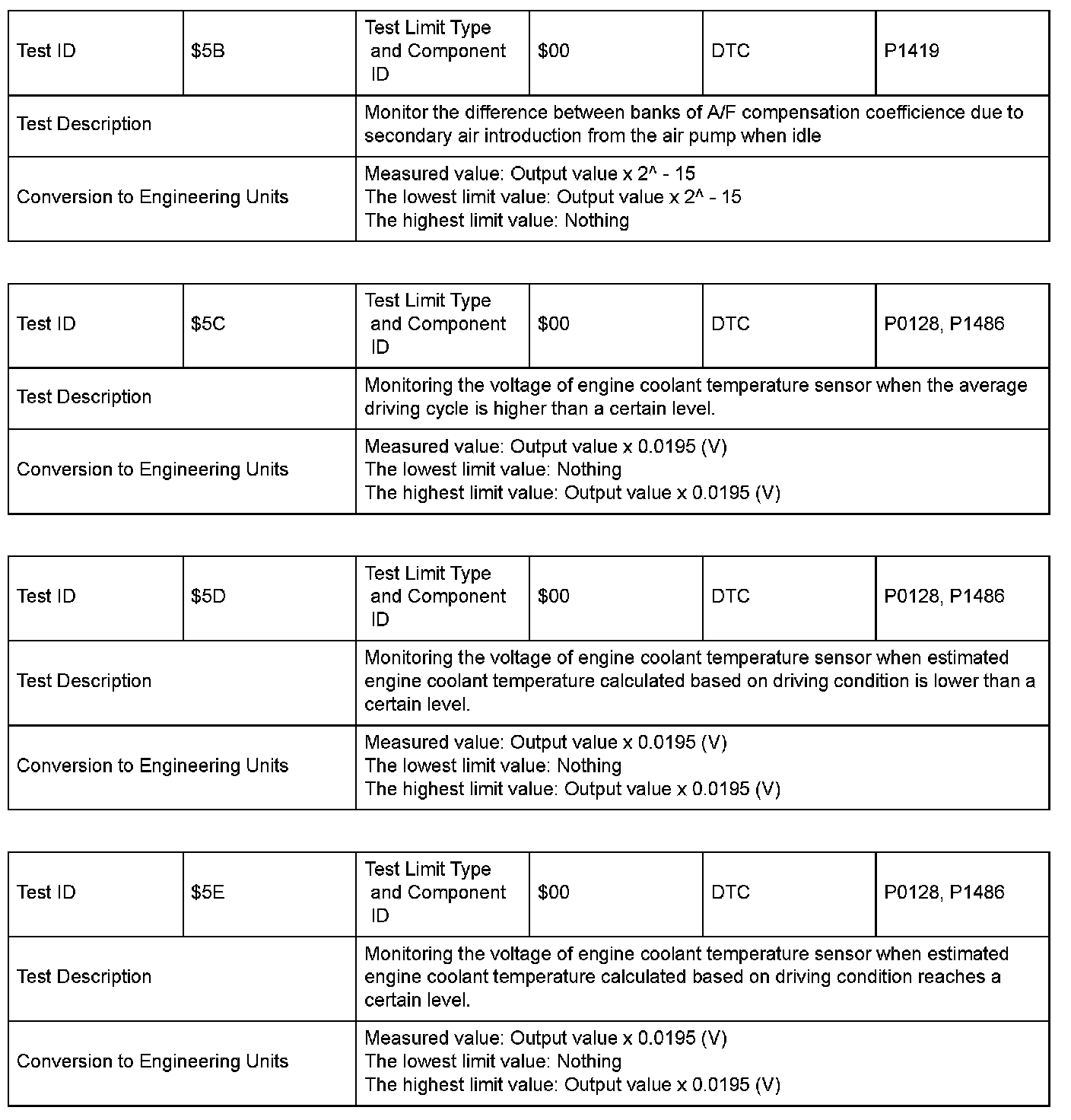

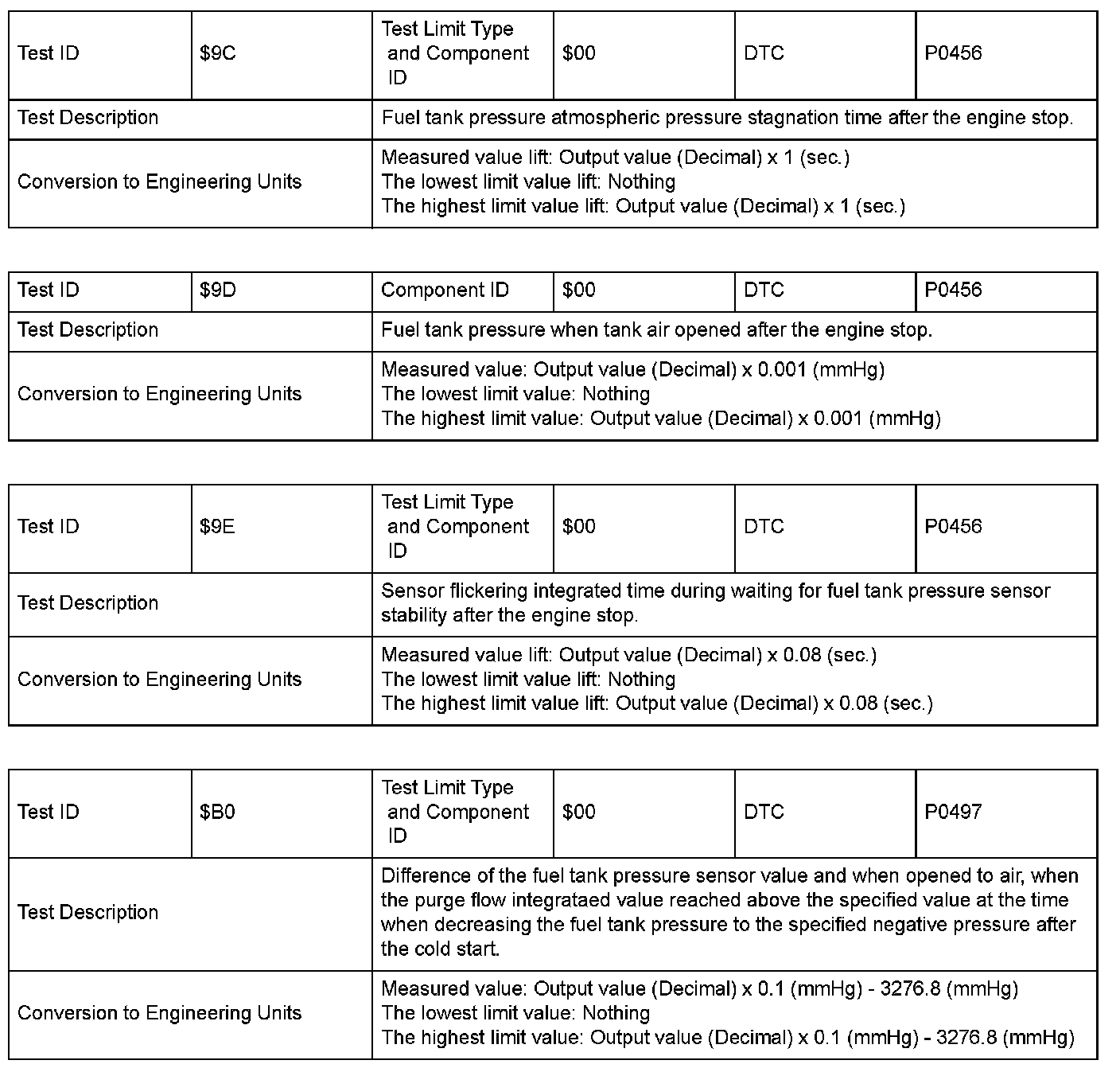

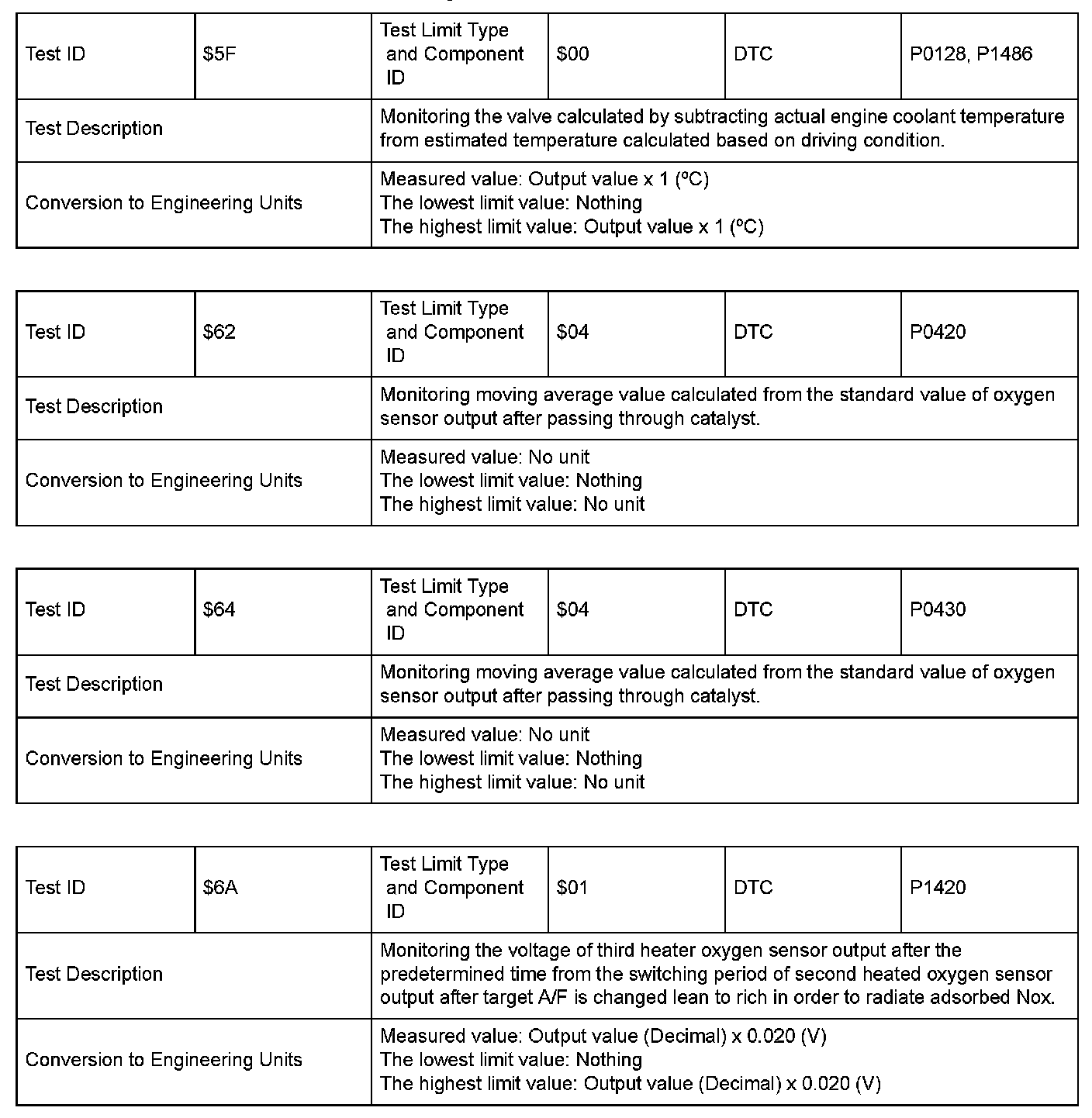

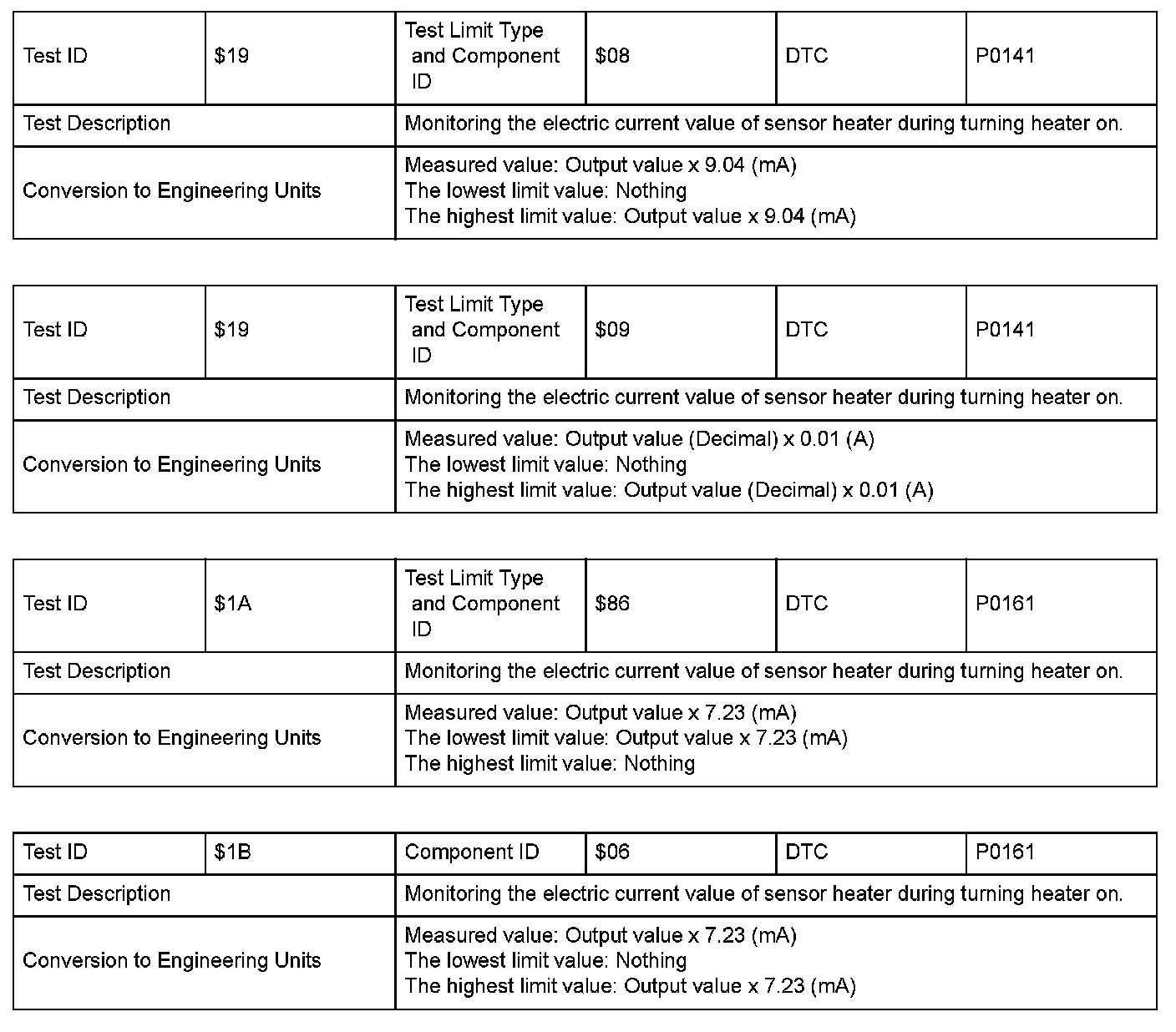

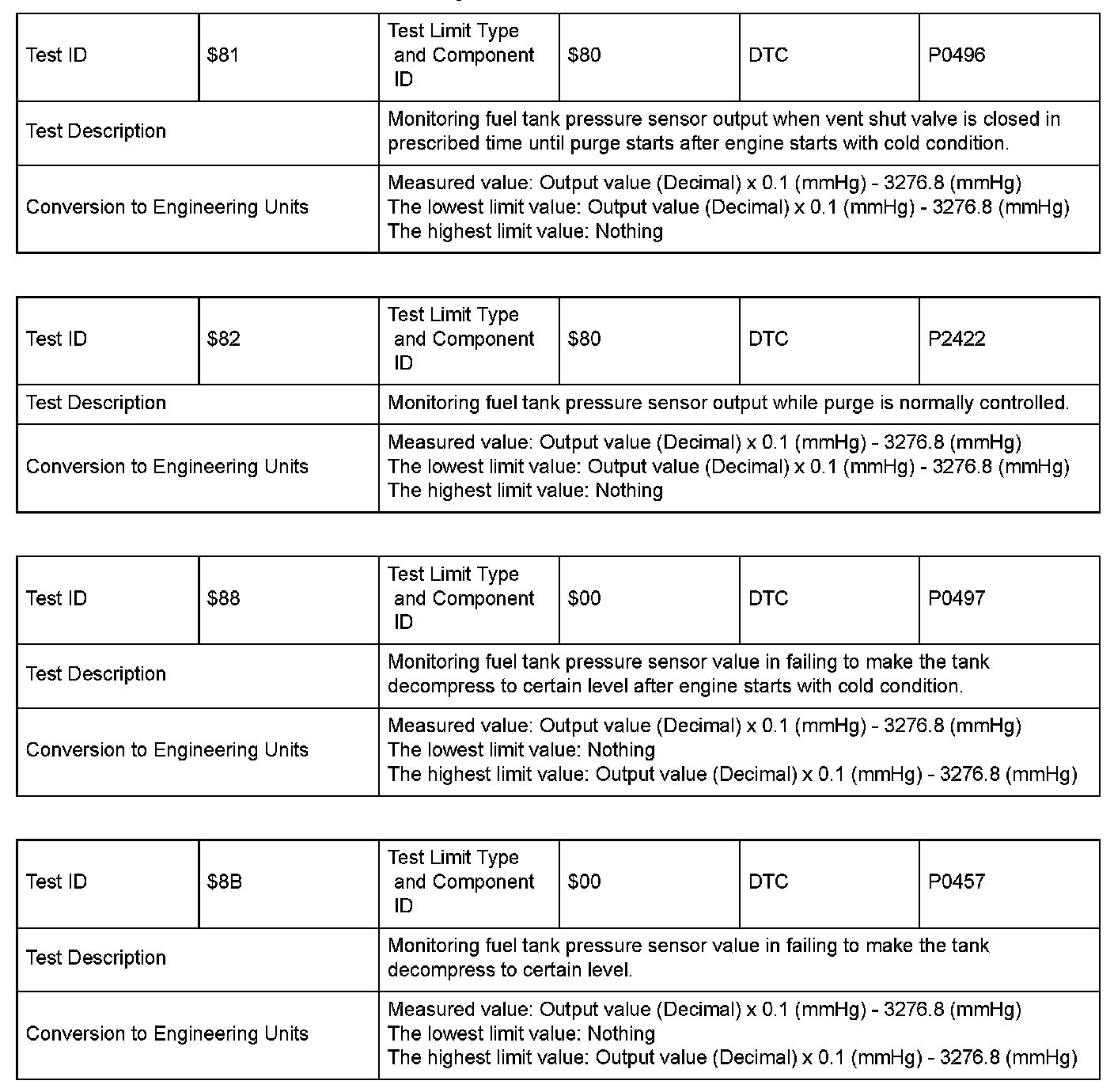

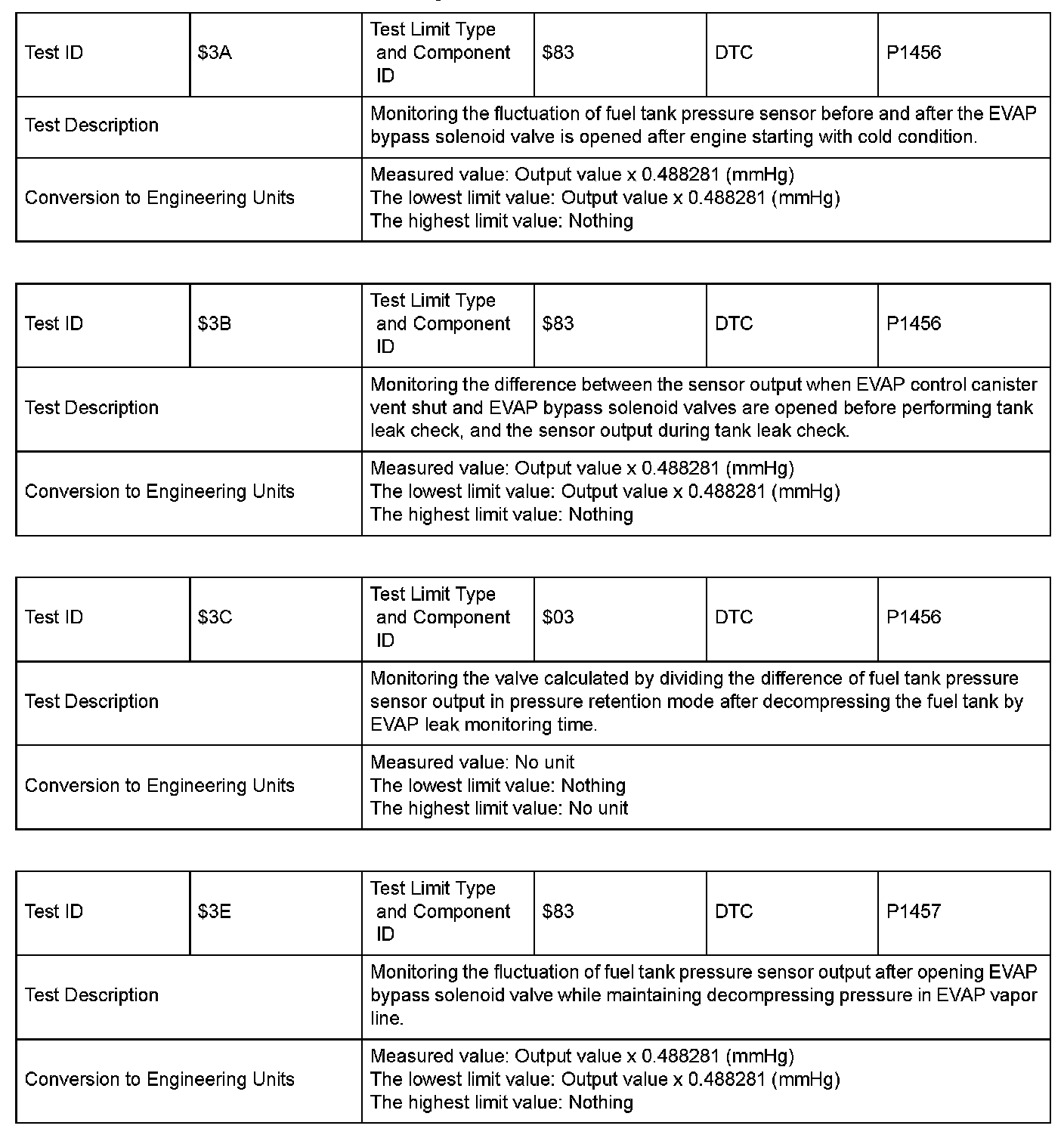

SAE J1979 Mode $06 Information by Test ID
