System Specifications

Crankshaft Pulley





Install the crankshaft pulley, and tighten the bolt to 245 Nm (25.0 kgf-m, 181 ft. lbs.). Do not use an impact wrench.

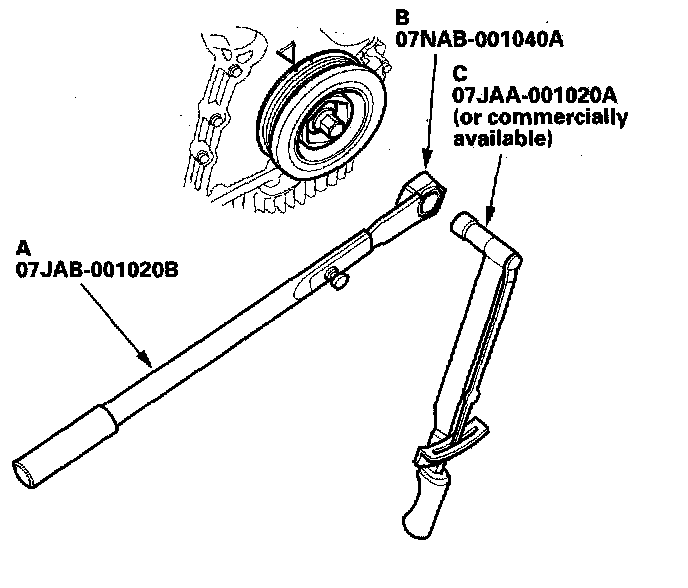

1 Hold the Pulley with the holder handle (A) and holder attachment (B).
2 Tighten the bolt with a torque wrench and heavy duty 19 mm socket (C).

Timing Chain

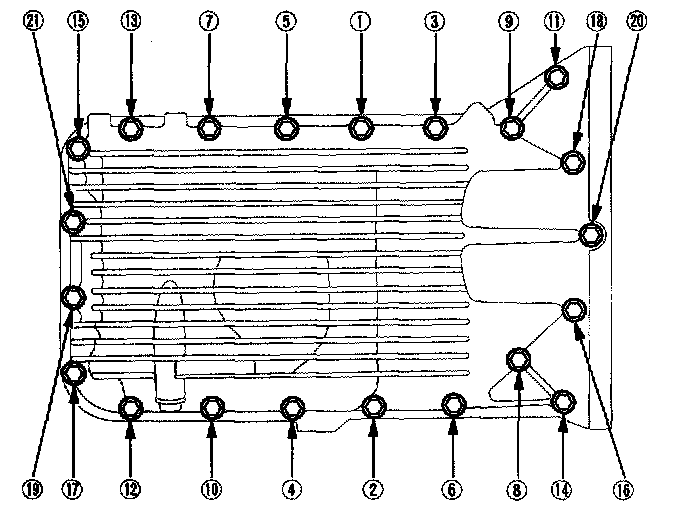

Tighten the bolts in two or three steps. In the final step, tighten all bolts, in sequence, to 12 Nm (1.2 kgf-m, 8.7 ft. lbs.).
