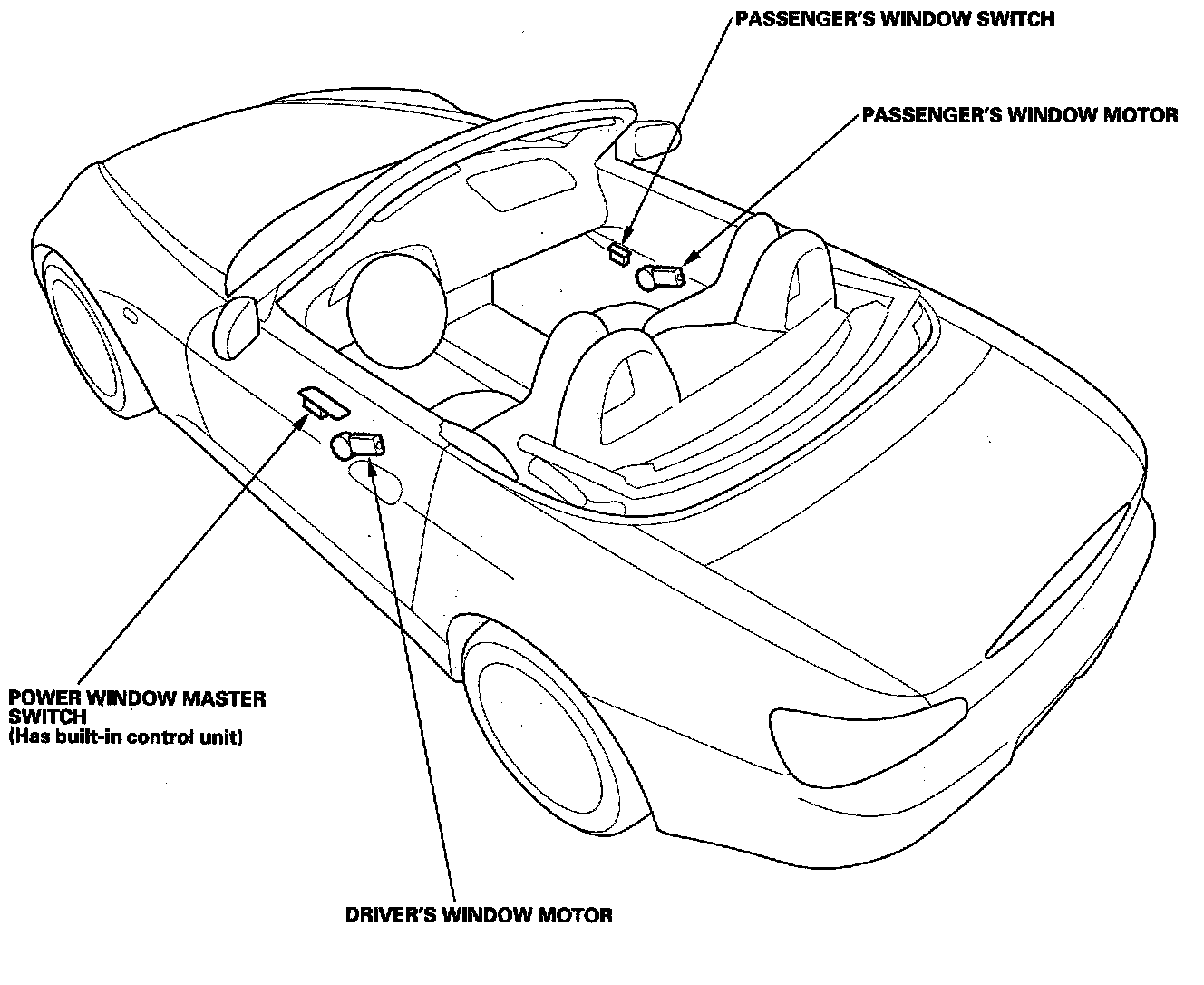

Power Window Switch: Locations

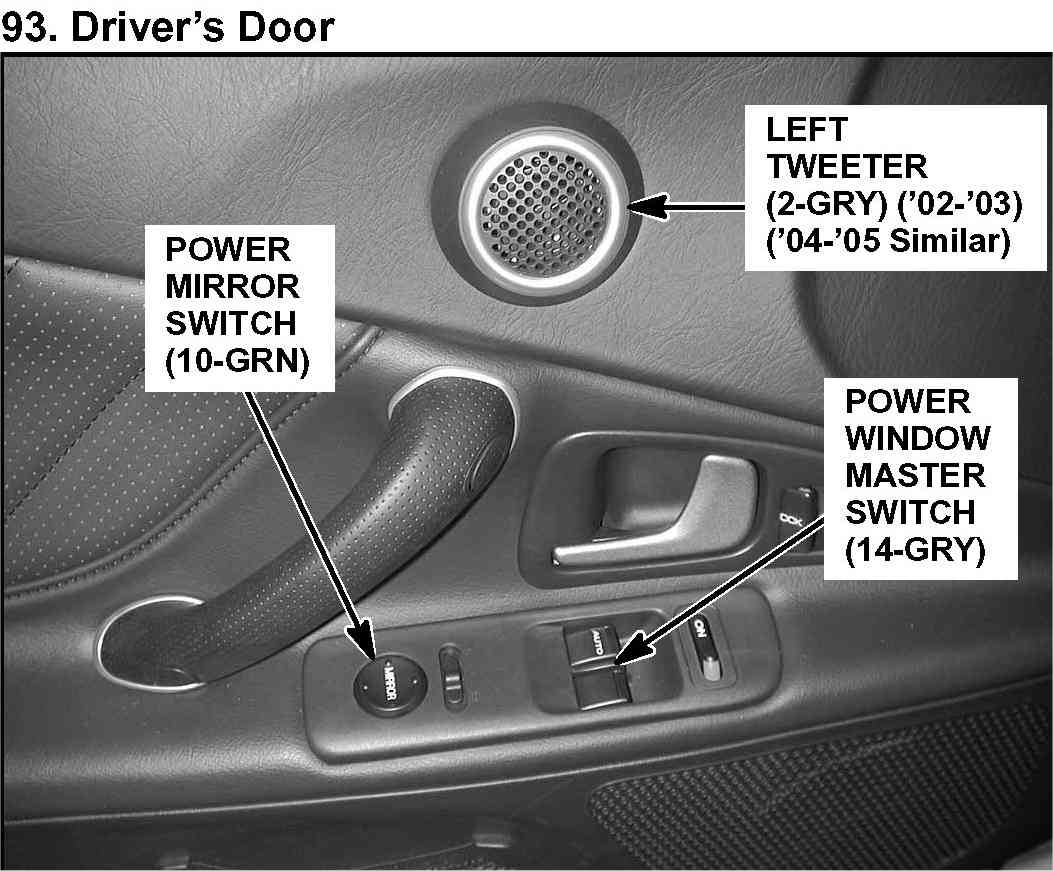

93. Driver's Door:

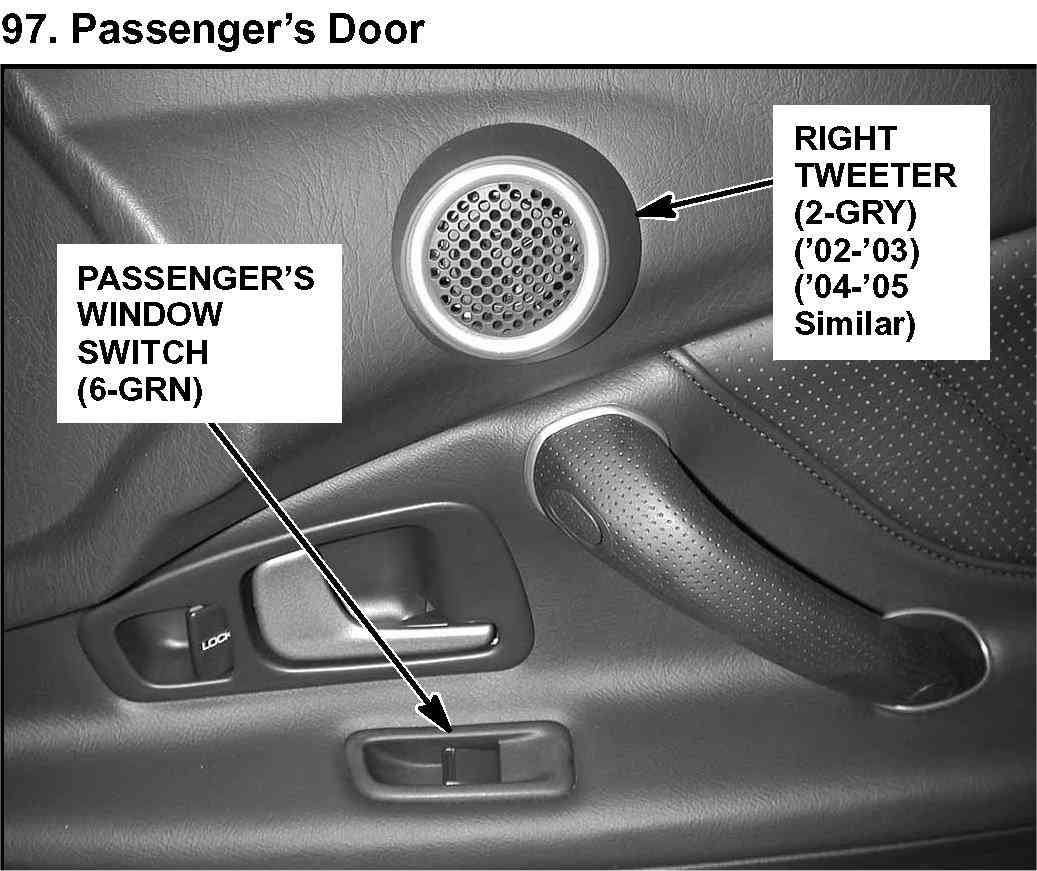

97. Passenger's Door:

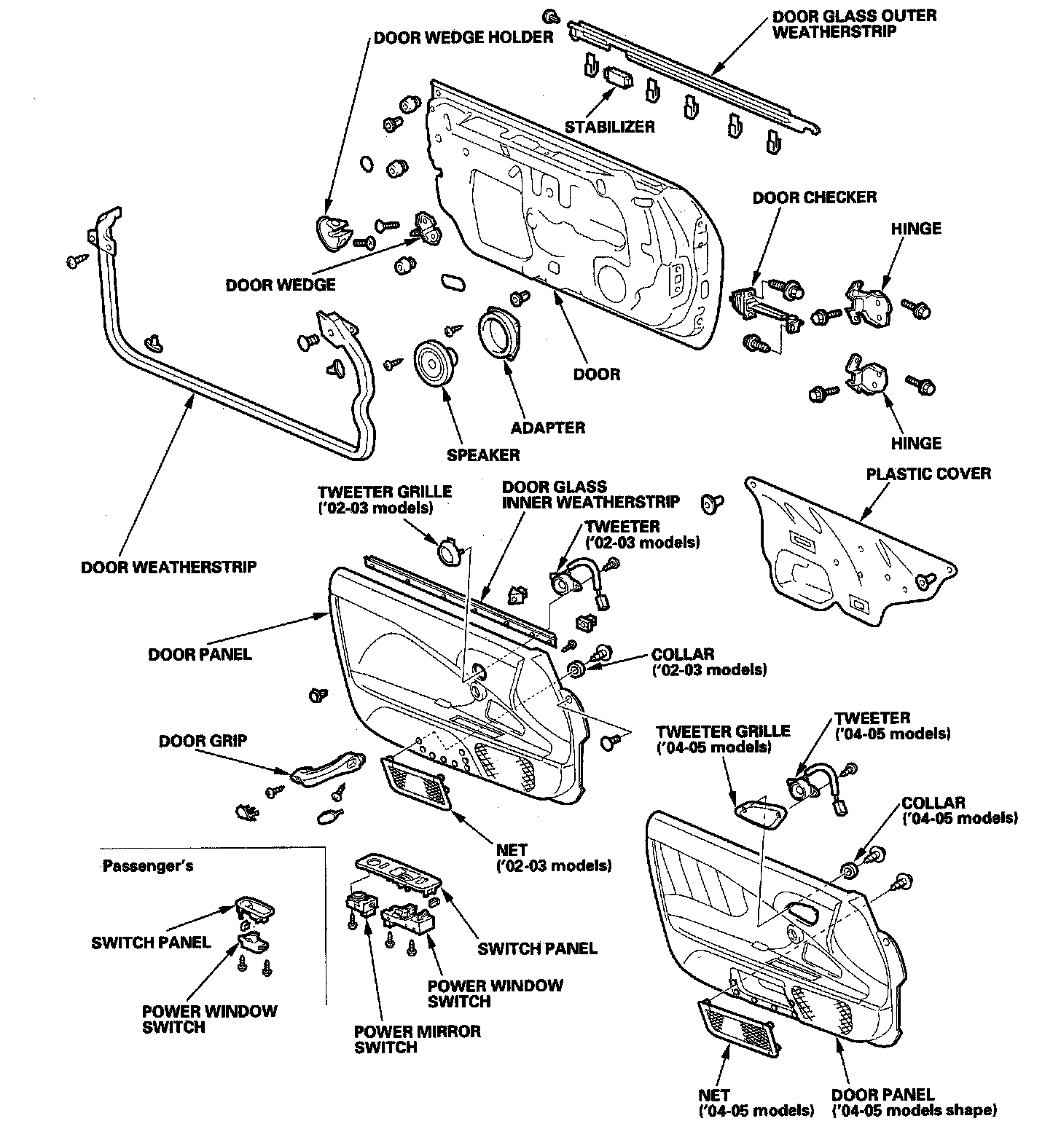

Doors - Component Location Index:



Relay And Control Unit Locations - Dashboard And Door:



Power Windows - Component Location Index:
