Power Locks: Adjustments
Rear Door Unlock Synchronization Adjustment1. Remove these items:
- Door panel
- Plastic cover
2. Install the inner handle by securing the screws.
3. Close the door securely.

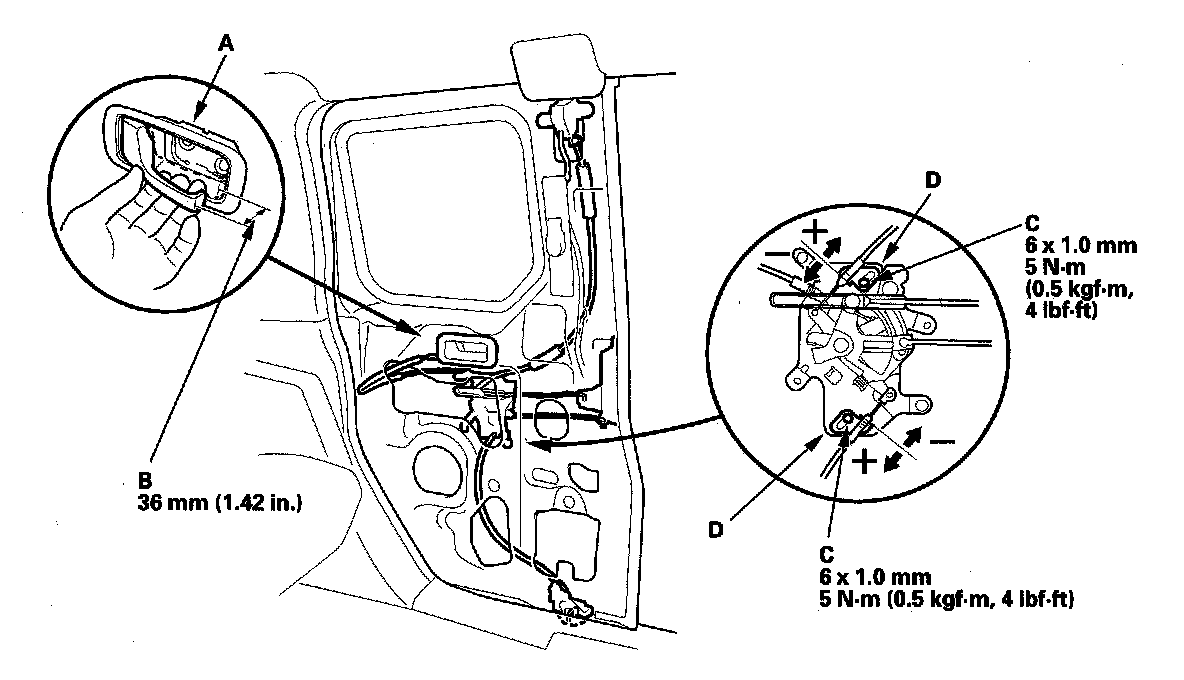

4. Pull the inner handle (A), and measure the inner handle stroke (B) when unlocking the door.
Inner handle stroke: 36 mm (1.42 in.)
- If the inner handle stroke is less than the specification, loosen the bolts (C) slightly, and move the plates (D) in the direction shown by the minus arrow.
- If the inner handle stroke is more than the specification, loosen the bolts (C) slightly, and move the plates (D) in the direction shown by the plus arrow.
5. Tighten the bolts, and recheck the inner handle stroke.
6. Remove the inner handle, and reinstall the plastic cover and door panel.
