Engine Oil: Service and Repair

Engine Oil Replacement
1. Warm up the engine.

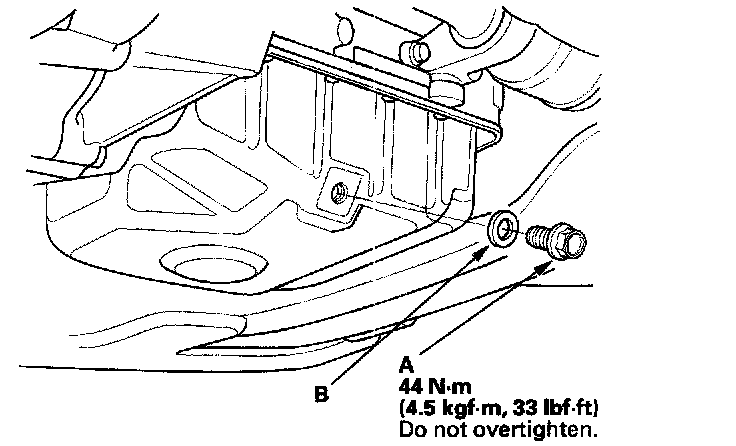

2. Remove the drain bolt (A), and drain the engine oil.
3. Reinstall the drain bolt with a new washer (B).
4. Refill with the recommended oil.

Capacity
At Oil Change: 4.0 Liters (4.2 US quarts)
At Oil Change including Filter: 4.2 Liters (4.4 US quarts)
After Engine Overhaul: 5.3 Liters (5.6 US quarts)

5. Run the engine for more than 3 minutes, then check for oil leakage.
