Repair and Diagnosis: Testing and Inspection

Power Relay Test
Use this chart to identify the type of relay, then do the test listed for it.

NOTE: The turn signal/hazard relay input test.

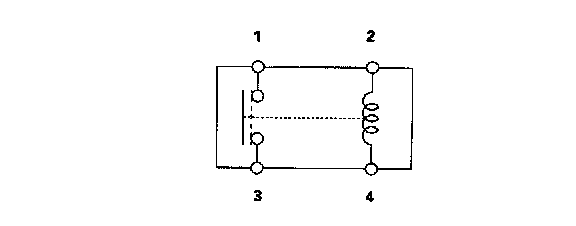

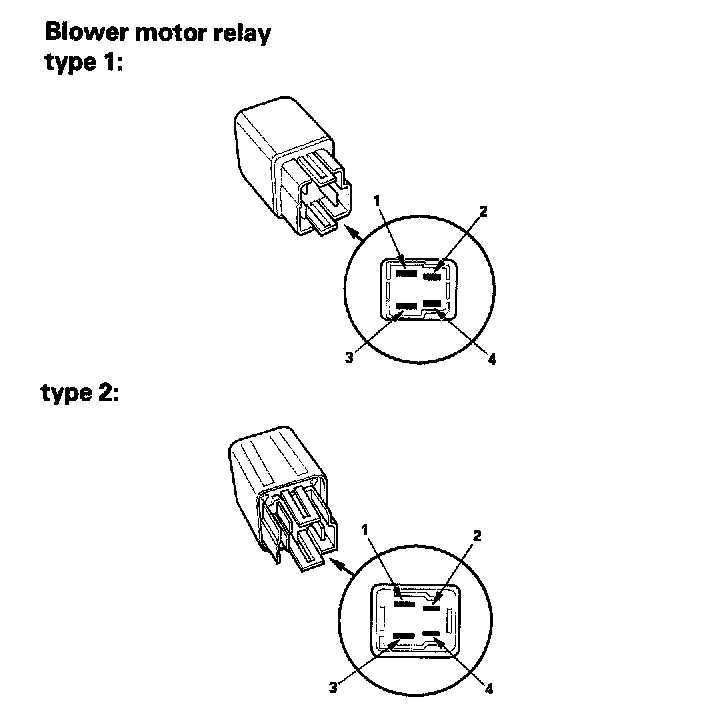

Normally-open type A
Check for continuity between the terminals.

- There should be continuity between the No. 1 and No. 2 terminals when power and ground are connected to the No. 3 and No. 4 terminals.
- There should be no continuity between the No. 1 and No. 2 terminals when power is disconnected.










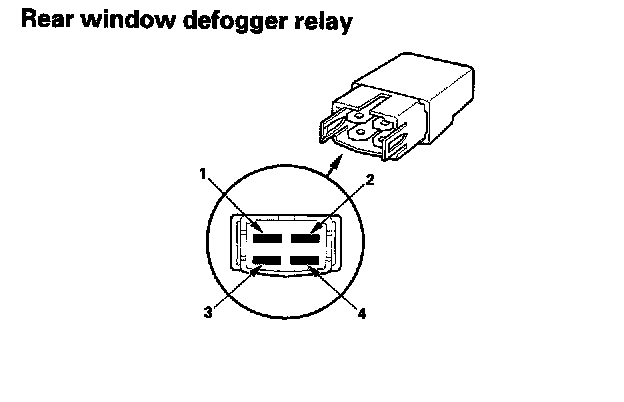

Normally-open type B
Check for continuity between the terminals.

- There should be continuity between the No. 1 and No. 3 terminals when power and ground are connected to the No. 2 and No. 4 terminals.
- There should be no continuity between the No. 1 and No. 3 terminals when power is disconnected.










Five-terminal type
Check for continuity between the terminals.

- There should be continuity between the No. 1 and No. 2 terminals when power and ground are connected to the No. 3 and No. 4 terminals.
- There should be no continuity between the No. 1 and No. 4 terminals when power is disconnected.
