Cylinder Block Assembly

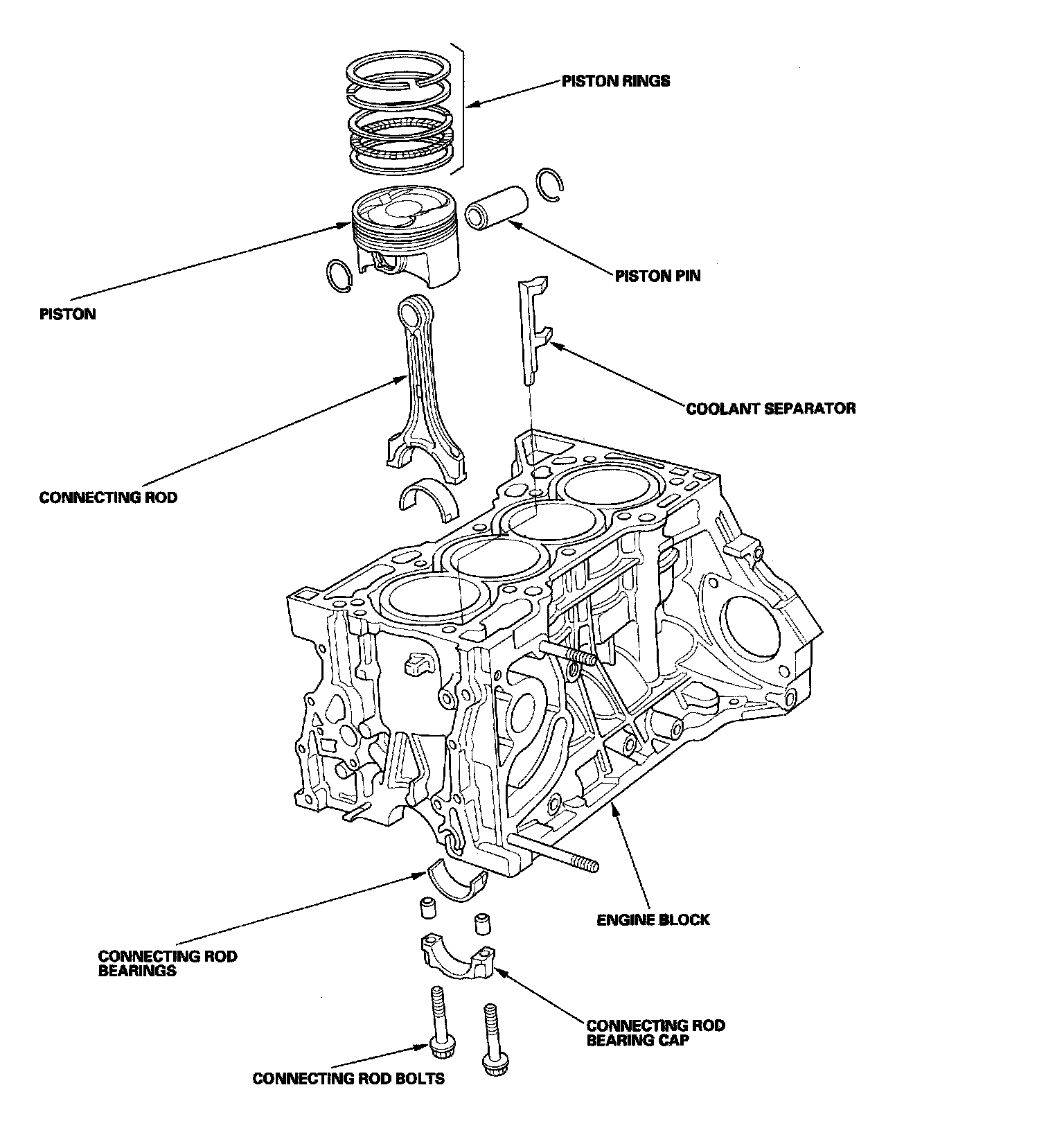

Engine Block Component Location Index (part 1):

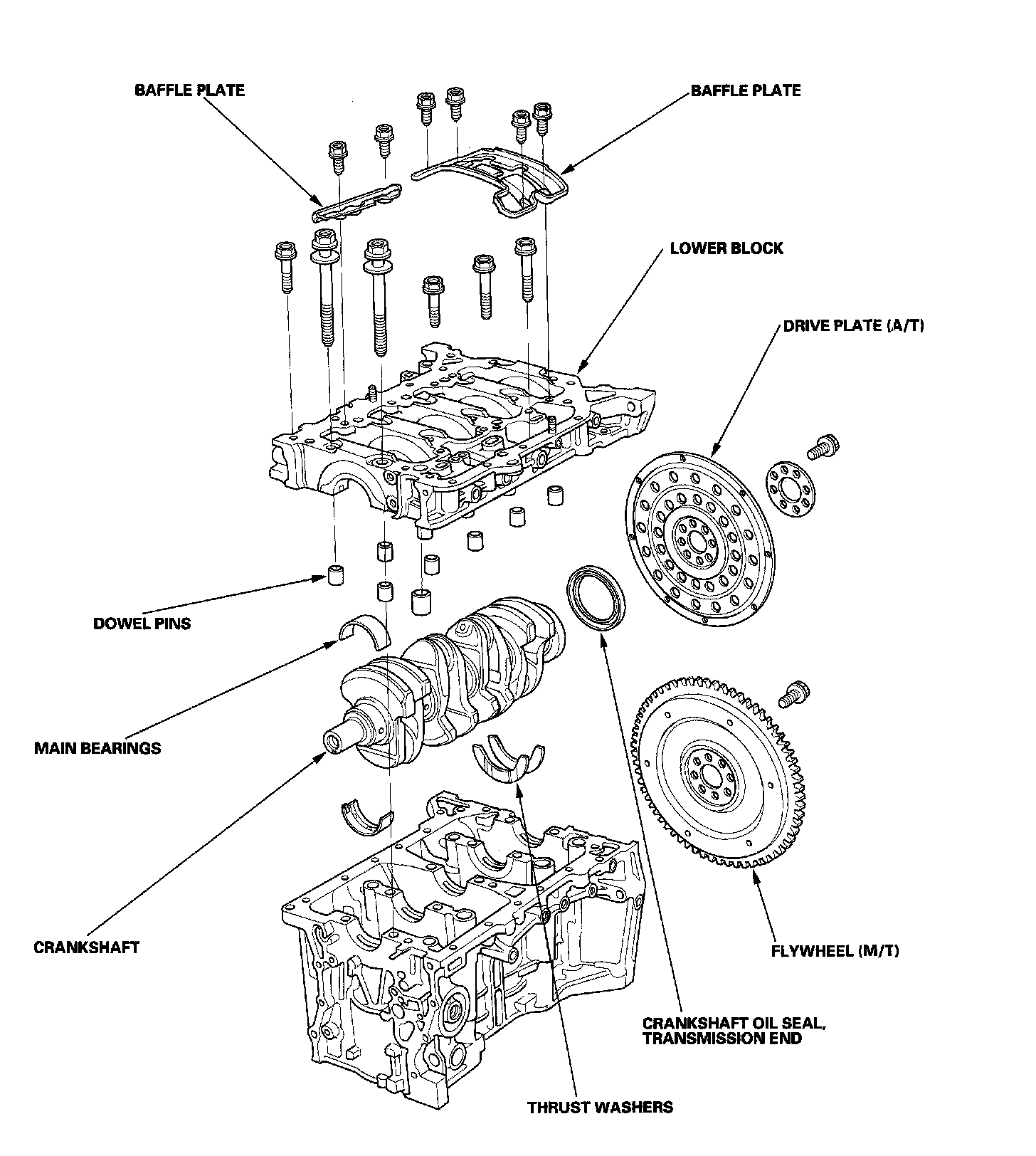

Engine Block Component Location Index (part 2):
