Control Module: Service and Repair
How to Remove and Install the PCM1. Connect the HDS to the DLC.
2. Jump the SCS line with the HDS.
3. Remove the glove box stops, then open the glove box.
4. Remove the 20P harness connector (A) from its bracket, and disconnect PCM connectors.
5. Disconnect all PCM connectors.
6. Remove the relays from the glove box frame.

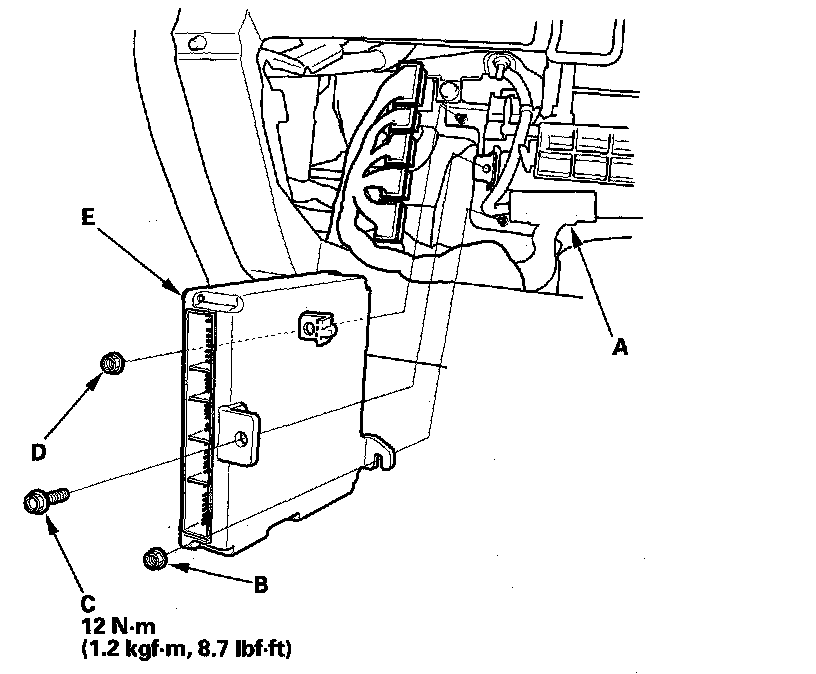

7. Loosen the PCM mounting nut (B) on the lower right of the PCM, and remove the mounting bolt (C) and nut (D) on the left of the PCM.
8. Lift the PCM up to clear the mounting nut on the lower right of the PCM, then pull out the PCM.
9. Install the PCM in the reverse order of the removal.
