DTC P1440 (57): IMA System Problem: Notes

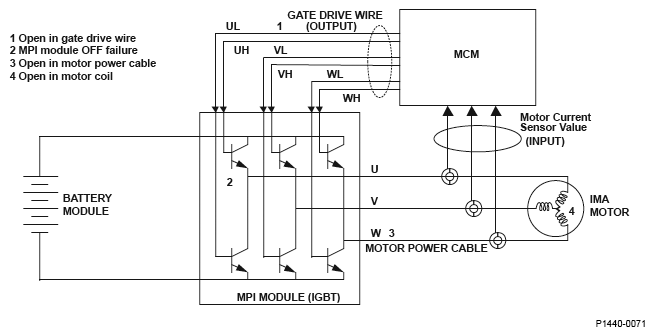

Fig 1: IMA System - Circuit Diagram
G04817863

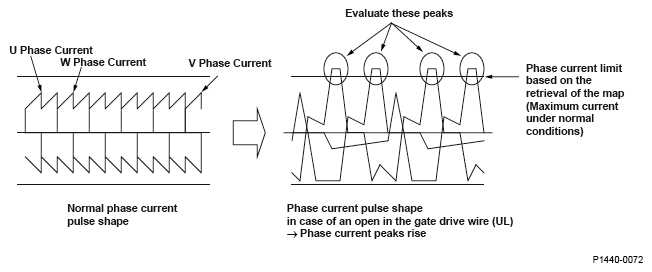

Fig 2: IMA System Pulse Pattern (1 Of 2)
G04817864
Fig 3: IMA System Pulse Pattern (2 Of 2)
G04817865
