Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Side Of Engine Compartment

G00288317

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Right Front Side Of Engine Compartment

G00288318

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Right Front Of Engine Compartment

G00288319

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Behind Right Side Of Front Bumper

G00288320

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Front Of Engine

G00288323

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Front Of Engine

G00288324

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Front Of Engine

G00288325

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Middle Of Engine

G00288326

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Middle Of Engine

G00288327

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Middle Of Engine

G00288328

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Top Of Transmission

G00288329

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Top Front Of Transmission

G00288330

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Rear Of Engine

G00288332

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Middle Rear Of Engine

G00288333

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 15: Rear Of Transmission (M/T)

G00288334

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 16: Right Rear Of Engine Compartment

G00288335

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 17: Middle Rear Of Engine Compartment

G00288336

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 18: Left Rear Of Engine Compartment

G00288337

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 19: Left Rear Of Engine Compartment

G00288338

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 20: Left Rear Of Engine Compartment

G00288339

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 21: Left Front Of Engine Compartment

G00288340

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 22: Left Side Of Engine Compartment (M/T)

G00288341

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 23: Left Front Side Of Engine Compartment

G00288342

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 24: Left Front Side Of Engine Compartment

G00288343

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 25: Left Front Side Of Engine Compartment

G00288344

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 26: Left Front Side Of Engine Compartment

G00288345

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 27: Left Front Side Of Engine Compartment

G00288346

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 28: Left Side Of Engine Compartment

G00288347

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 29: Left Rear Of Engine Compartment

G00288348

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 30: Left Side Of Dash

G00288350

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 31: Under Left Side Of Dash

G00288351

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 32: Upper Left Kick Panel Area

G00288352

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 33: Under Left Side Of Dash

G00288353

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 34: Under Left Side Of Dash

G00288354

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 35: Under Left Side Of Dash (Honda Accessory)

G00288355

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 36: Under Left Side Of Dash

G00288356

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 37: Left Side Of Dash

G00288357

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 38: Steering Wheel (Airbag Removed)

G00288358

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 39: Right Side Of Steering Column

G00288360

Courtesy of AMERICAN HONDA MOTOR CO., INC.

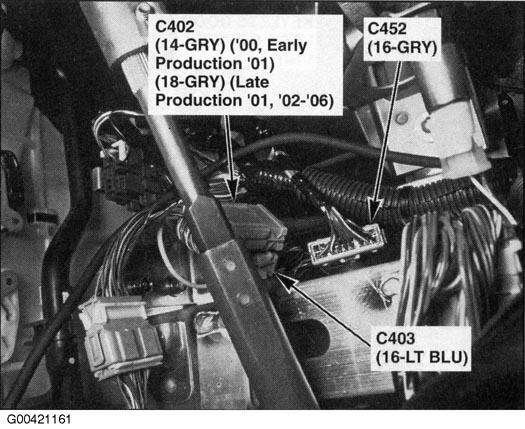

Fig 40: Under Left Side Of Dash

G00421161

Courtesy of AMERICAN HONDA MOTOR CO., INC.

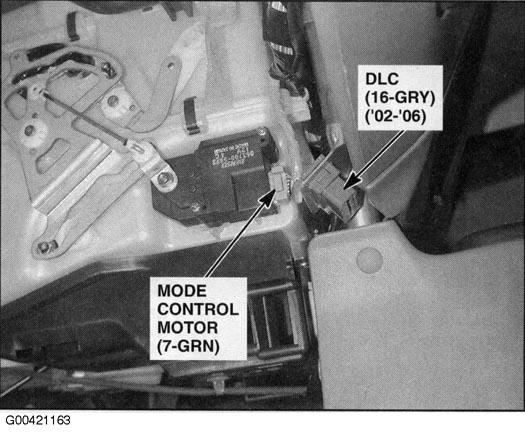

Fig 41: Under Middle Of Dash

G00421163

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 42: Under Middle Of Dash

G00288364

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 43: Under Middle Of Dash

G00288365

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: Middle Of Dash

G00291988

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 45: Middle Of Dash

G00288366

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 46: Behind Center Lower Cover

G00288368

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 47: Behind Glove Box

G00288369

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 48: Behind Glove Box

G00288370

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 49: Right Side Of Dash

G00288371

Courtesy of AMERICAN HONDA MOTOR CO., INC.

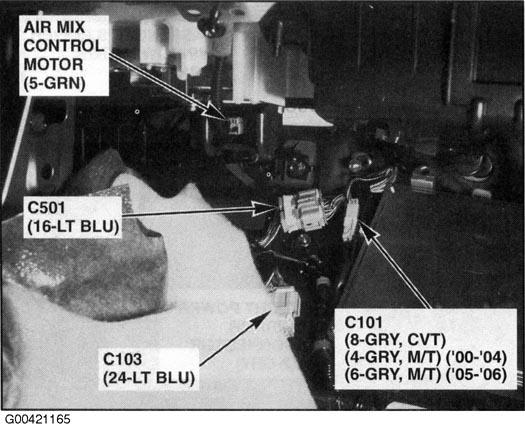

Fig 50: Under Middle Of Dash

G00421165

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 51: Right Side Of Floor

G00288374

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 52: Right Side Of Floor

G00288375

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 53: Under Right Side Of Dash

G00288376

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 54: Under Right Side Of Kick Panel (M/T)

G00288377

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 55: Under Right Side Of Kick Panel

G00288378

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 56: Rear Of Driver's Door

G00291989

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 57: Rear Of Passenger's Door

G00291990

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 58: Middle Rear Of Roof

G00288380

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 59: Under Driver's Seat

G00288381

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 60: Middle Of Floor

G00288382

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 61: Left "B" Pillar

G00288383

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 62: Behind Seat, Middle Of Floor

G00288384

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 63: Behind Seat, Middle Of Floor

G00288385

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 64: Behind Seat, Middle Of Floor

G00288386

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 65: Behind Passenger's Seat

G00288387

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 66: Right "B" Pillar

G00288388

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 67: Left Rear Side Of Floor

G00288389

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 68: Left Side Of PCU (PCU Removed)

G00288390

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 69: Left Side Of PCU (PCU Removed)

G00288391

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 70: Left Side Of PCU (PCU Removed)

G00288392

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 71: Left Rear Side Of PCU

G00288393

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 72: Left Rear Side Of PCU

G00288394

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 73: Left Rear Side Of PCU

G00288395

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 74: Left Front Side Of Battery Module

G00288396

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 75: Left Front Side Of Battery Module

G00288397

Courtesy of AMERICAN HONDA MOTOR CO., INC.

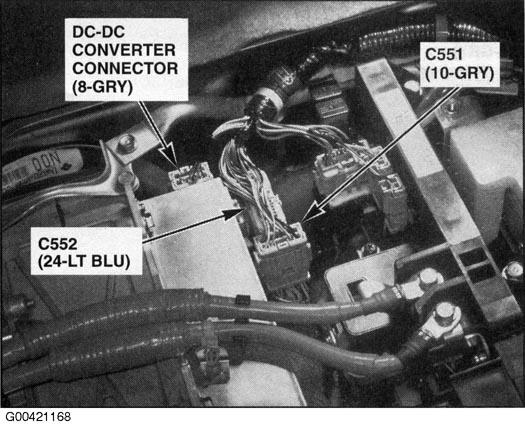

Fig 76: Right Front Side Of PCU

G00421168

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 77: Below Left Side Of Battery Module

G00288401

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 78: Top Front Of Battery Module

G00288402

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 79: Top Rear Of Battery Module

G00421169

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 80: Top Rear Of Battery Module

G00288406

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 81: Middle Of Cargo Area

G00288407

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 82: Left Side Of Hatch

G00288409

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 83: Above Right Front Wheelwell

G00288410

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 84: Below Right Front Wheelwell

G00288411

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 85: Above Left Front Wheelwell

G00288412

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 86: Below Right Front Of Engine Compartment

G00288413

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 87: Below Front Of Engine

G00288414

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 88: Below Right Side Of Engine

G00288415

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 89: Below Rear Of Engine

G00288416

Courtesy of AMERICAN HONDA MOTOR CO., INC.

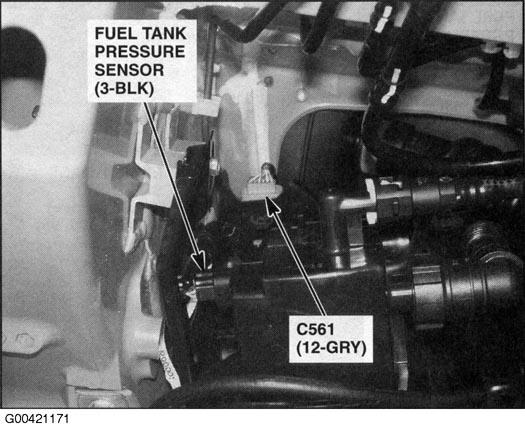

Fig 90: Under Right Rear Side Of Vehicle

G00421171

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 91: Right Rear Underside Of Vehicle (Left Similar)

G00288418

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 92: Transmission Housing (CVT)

G00288419

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 93: Valve Body (CVT)

G00288420

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 94: Middle Of Floor (CVT)

G00288421

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 95: Under Right Side Of Kick Panel (CVT)

G00288422

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 96: Under Right Side Of Kick Panel (CVT)

G00288423

Courtesy of AMERICAN HONDA MOTOR CO., INC.

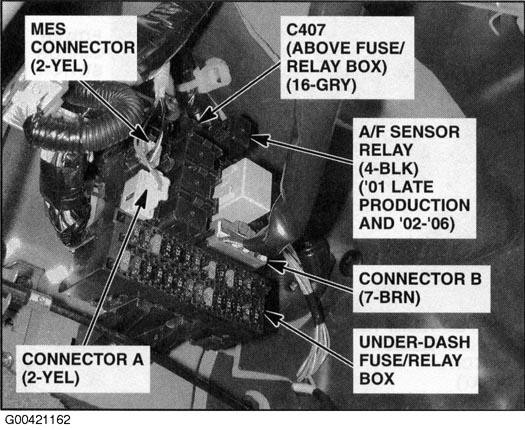

Fig 97: Upper Left Kick Panel Area

G00421162

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 98: Right Of Steering Column

G00291987

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 99: Left Rear Side Of PCU

G00291991

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 100: Left Front Side Of Battery Module (Connectors Disconnected)

G00291992

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 101: Left Front Of Battery Module (Connectors Disconnected)

G00291993

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 102: Below Left Side Of Cargo Area

G00291994

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 103: Left Side Of Engine Compartment (CVT)

G00291995

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 104: Behind Center Lower Cover

G00288367

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 105: Right Side Of Engine Compartment (M/T)

G00363846

Courtesy of AMERICAN HONDA MOTOR CO., INC.

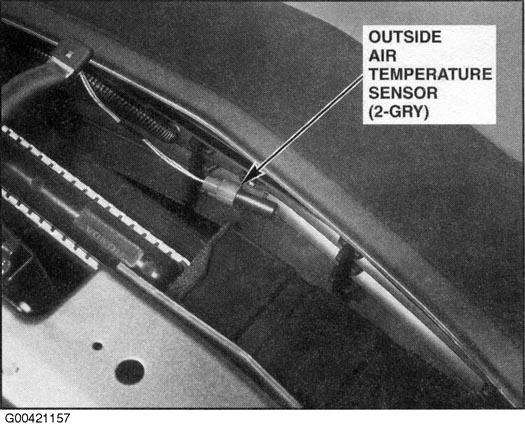

Fig 106: Behind Middle Of Bumper

G00421157

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 107: Front Of Engine

G00421158

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 108: Rear Of Engine

G00421159

Courtesy of AMERICAN HONDA MOTOR CO., INC.

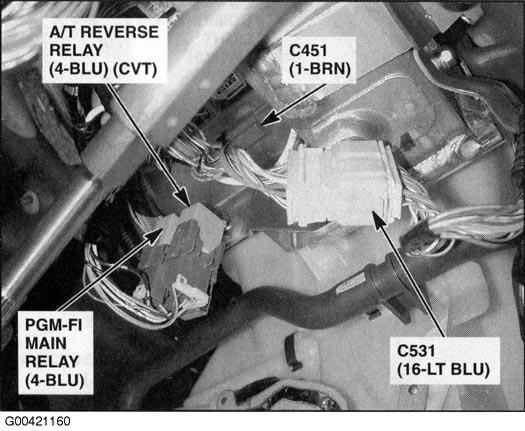

Fig 109: Under Left Side Of Dash

G00421160

Courtesy of AMERICAN HONDA MOTOR CO., INC.

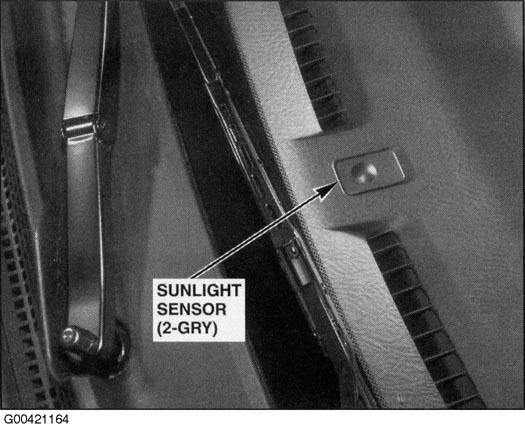

Fig 110: Top Middle Of Dash

G00421164

Courtesy of AMERICAN HONDA MOTOR CO., INC.

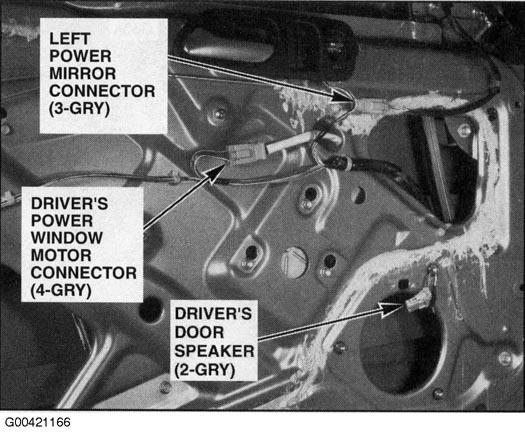

Fig 111: Front Of Driver's Door

G00421166

Courtesy of AMERICAN HONDA MOTOR CO., INC.

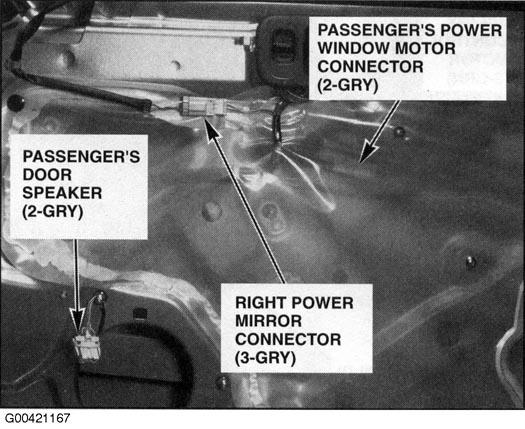

Fig 112: Front Of Passenger's Door

G00421167

Courtesy of AMERICAN HONDA MOTOR CO., INC.

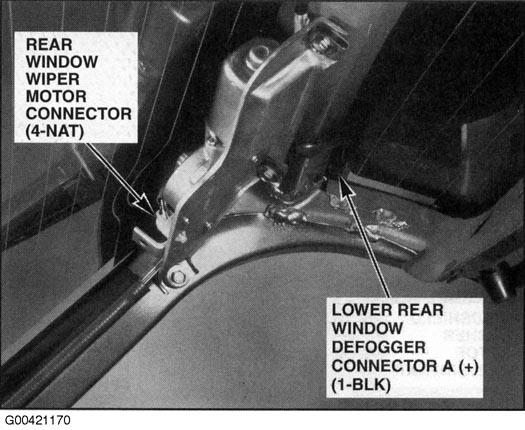

Fig 113: Right Side Of Hatch

G00421170

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 114: Under Right Rear Side Of Vehicle

G00421172

Courtesy of AMERICAN HONDA MOTOR CO., INC.

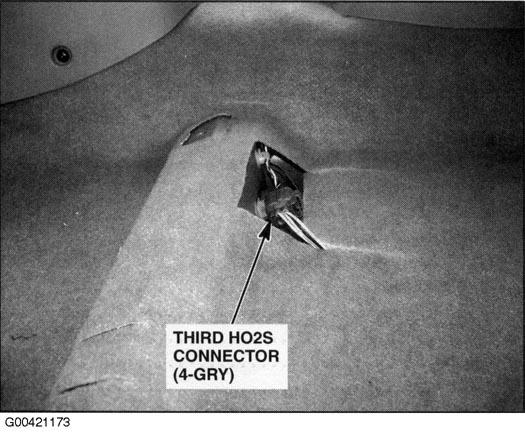

Fig 115: Under Driver's Seat

G00421173

Courtesy of AMERICAN HONDA MOTOR CO., INC.
