DTC P0501: Range/Performance Problem in Vehicle Speed Sensor Circuit: Notes

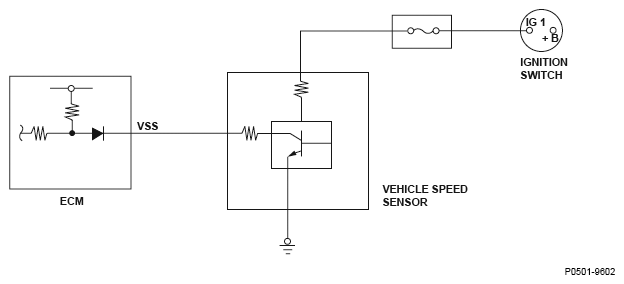

Fig 1: Range/Performance Problem In Vehicle Speed Sensor Circuit - Circuit Diagram
G04817796
