DTC P0706: Open in Transmission Range Switch Circuit: Notes

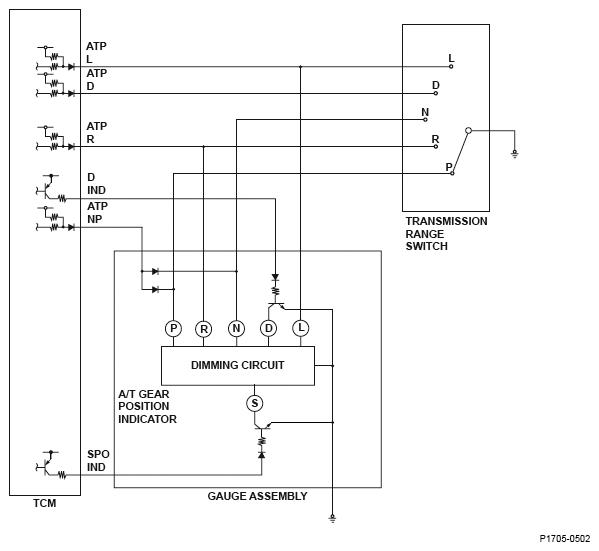

Fig 1: Short In Transmission Range Switch Circuit (Multiple Shift-Position Input) - Circuit Diagram

TRANSMISSION RANGE SWITCH SPECIFICATION

Shift lever position	Input per switch
	P	R	N	D	L
P	O	X	X	X	X
R	X	O	X	X	X
N	X	X	O	X	X
D	X	X	X	O	X
L	X	X	X	X	O
O: Closed X: Open
