DTC P0780: Problem in Shift Control System: Notes

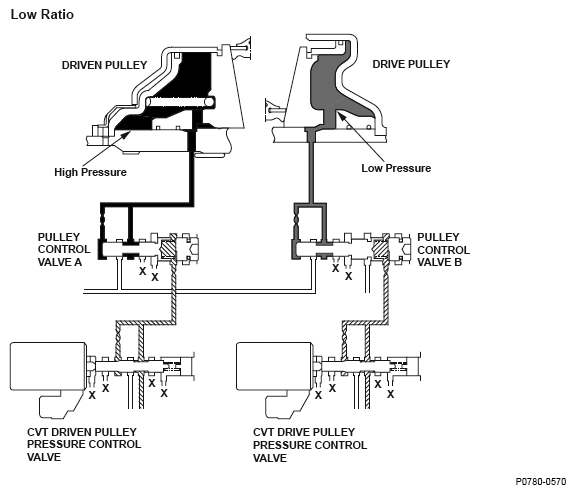

Fig 1: Shift Control System Diagram - Low Ratio
G04817817

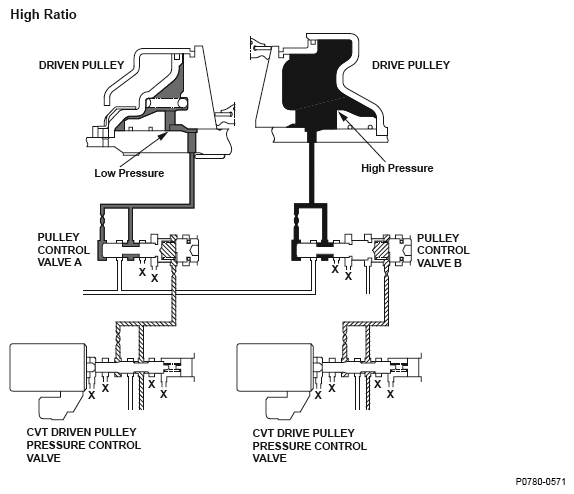

Fig 2: Shift Control System Diagram - High Ratio
G04817818
