DTC P15A1 (33): Motor Drive Module (MDM) Temperature Signal Circuit High Input: Notes

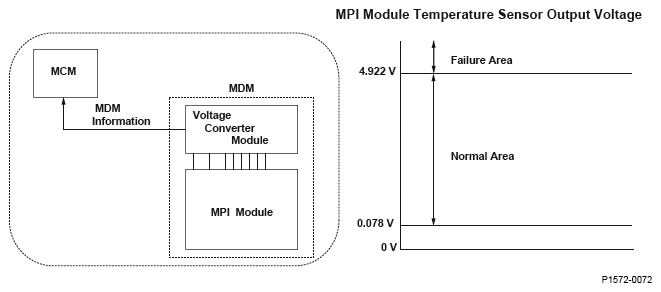

Fig 1: Motor Drive Module (MDM) Temperature Signal Circuit High Input - Communication Diagram
G04817889
