2006 model

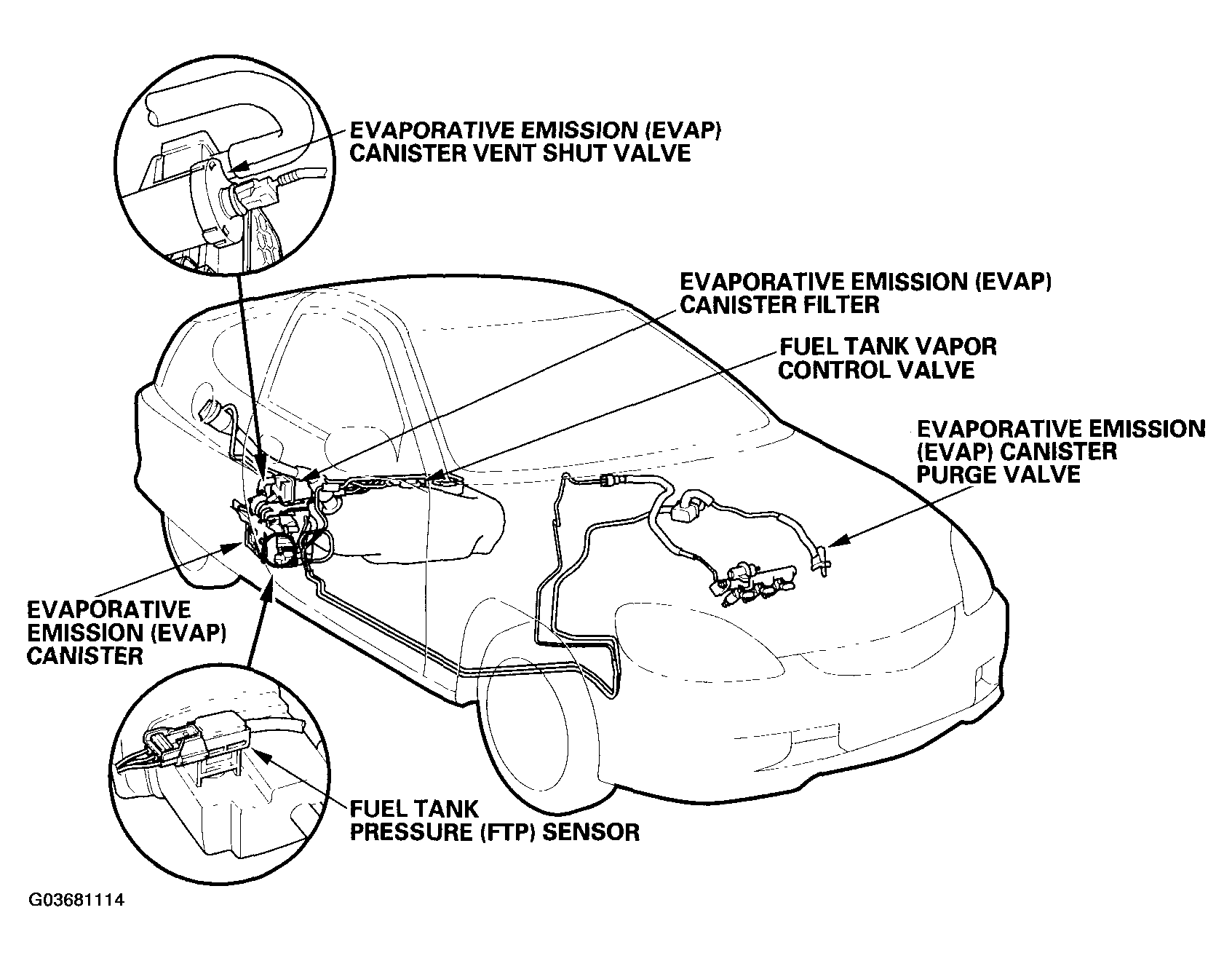

Fig 1: Identifying EVAP System Component Location Index (2006 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
