Engine Oil Replacement
- Warm up the engine.

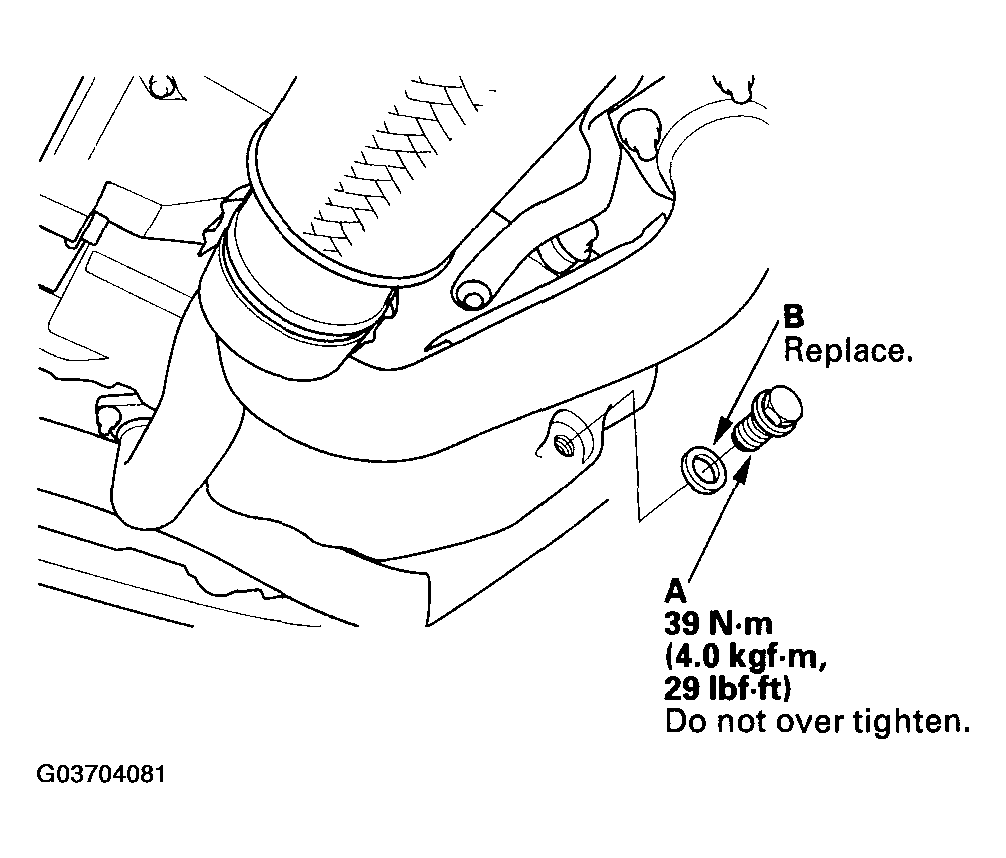

- Remove the drain bolt (A), and drain the engine oil
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Reinstall the drain bolt with a new washer (B).
- Refill with the recommended oil (see LUBRICANTS & FLUIDS
).
- Capacity
- At Oil Change: 4.0 L (4.2 US qt)
- At Oil Change including Filter: 4.3 L (4.5 US qt)
- After Engine Overhaul: 5.0 L (5.3 US qt)
- Run the engine for more than 3 minutes, then check for oil leakage.
- Reset the maintenance minder or multi-information display (see RESETTING THE ENGINE OIL LIFE INDICATOR
).
