Air Cleaner Removal/Installation

  1. Remove the bolts (A).

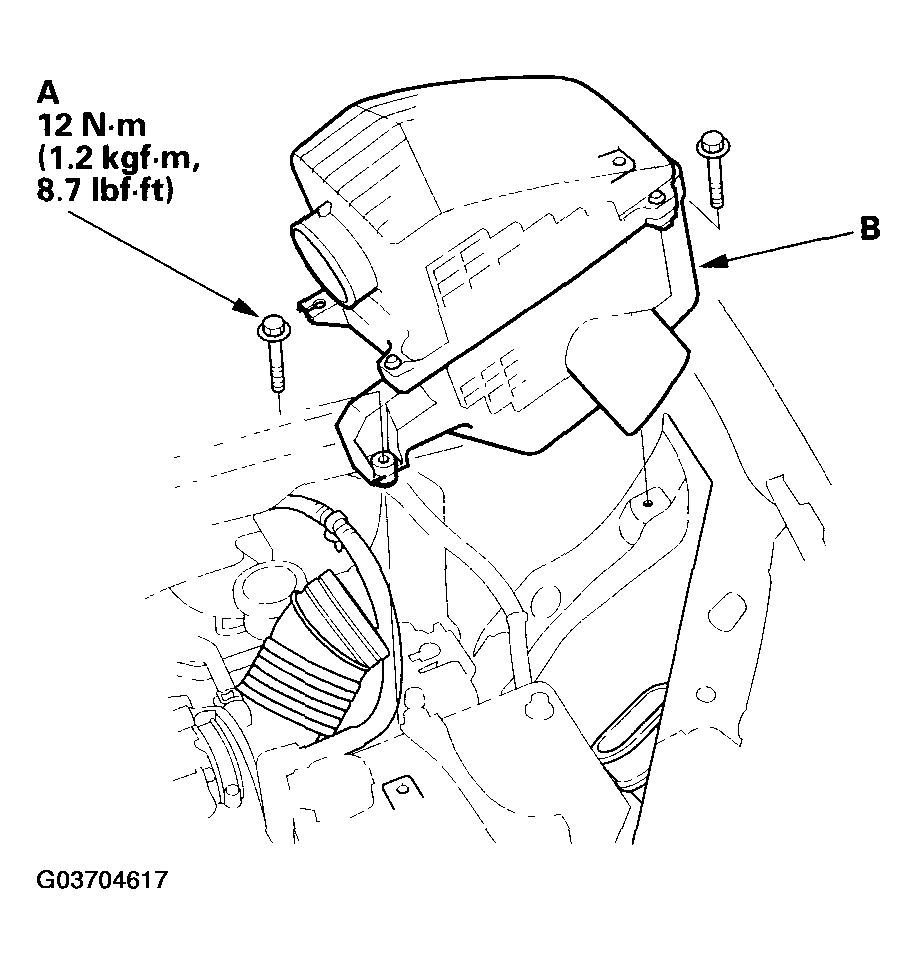

    Fig 1: Removing Air Cleaner Bolts
    G03704617Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner housing (B).
  3. Install the parts in the reverse order of removal.
