Fuel Pressure Regulator Replacement

  1. Remove the fuel tank unit (see FUEL PUMP/FUEL GAUGE SENDING UNIT REPLACEMENT  ).
  2. Remove the bracket (A).

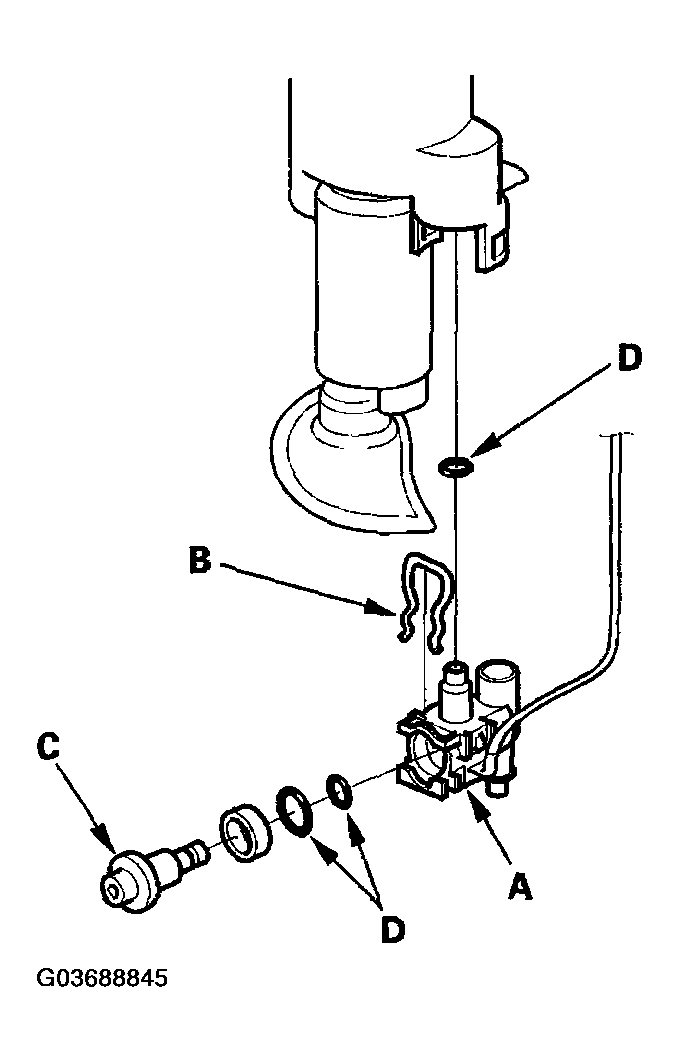

    Fig 1: Removing Bracket
    G03688845Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the clip (B).
  4. Remove the fuel pressure regulator (C).
  5. Install the regulator in the reverse order of removal with new O-rings (D).
    NOTE: Coat the O-rings with clean engine oil. Do not pinch the O-rings during installation. Never apply brake fluid, vegetable oil, or alcohol-based oil to the O-rings.
