EVAP Canister Replacement

  1. Remove the fuel tank guard (A).

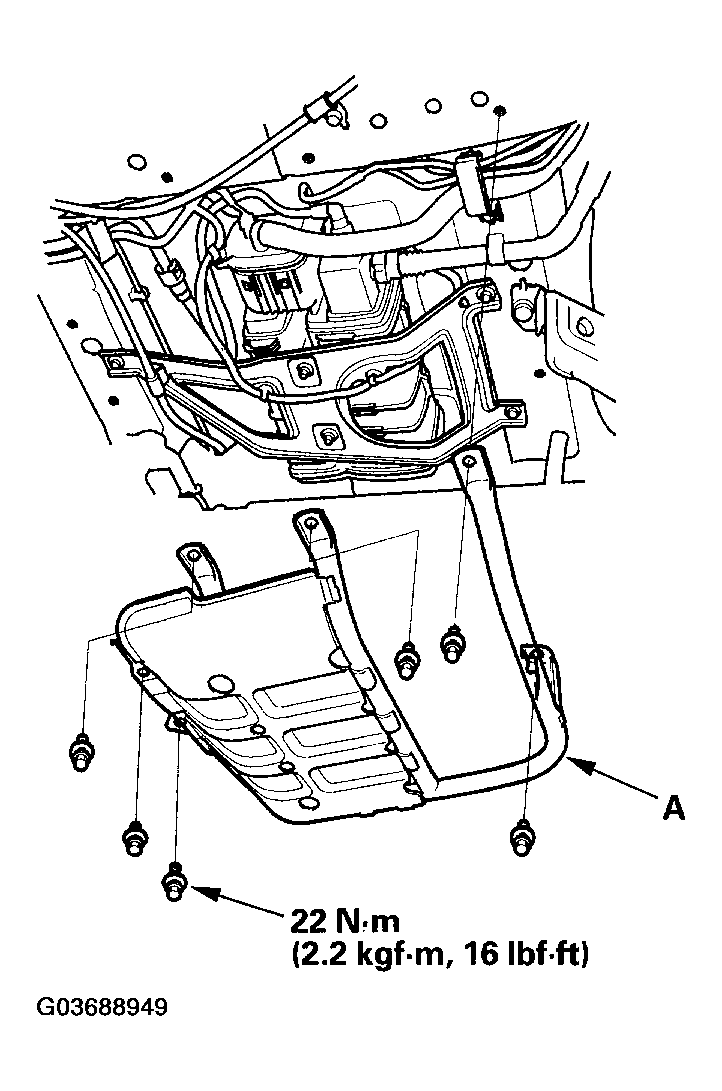

    Fig 1: Removing Fuel Tank Guard With Torque Specifications
    G03688949Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the hoses (A), the FTP sensor 3P connector (B), and the EVAP canister vent shut valve 2P connector (C).

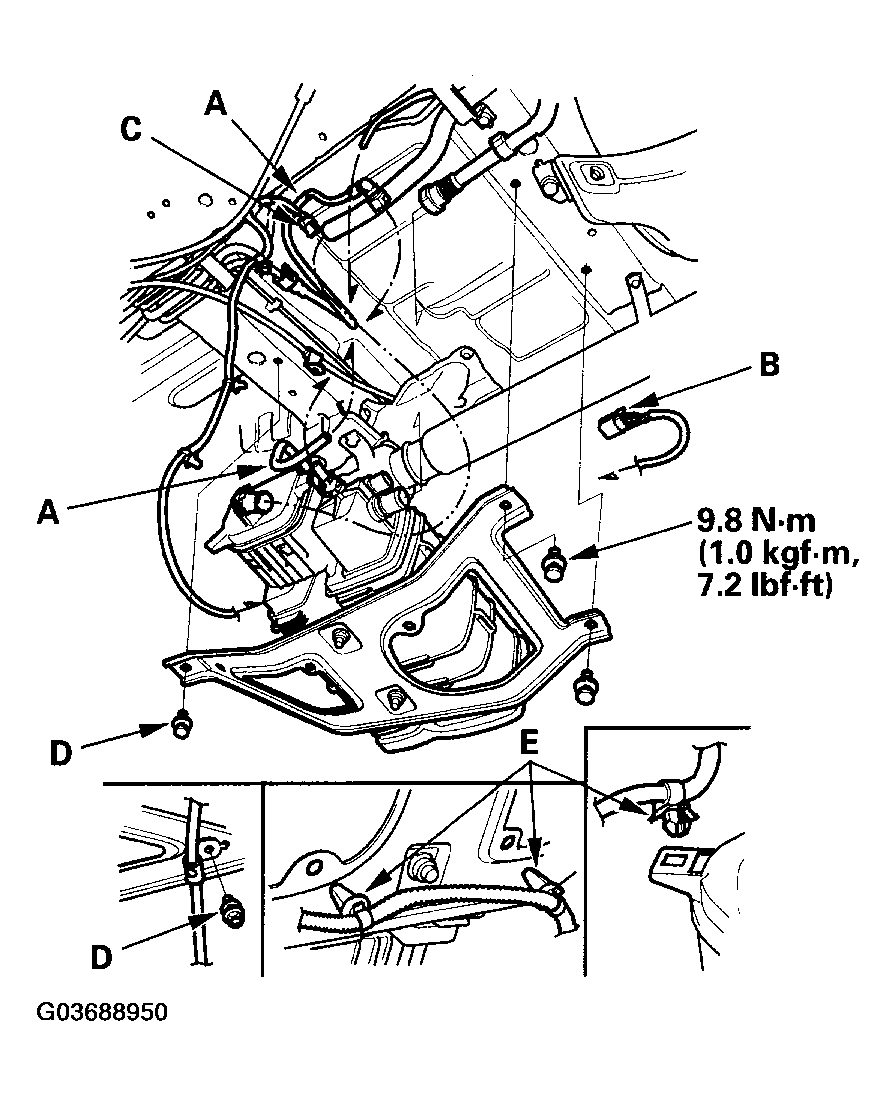

    Fig 2: Removing Hoses FTP Sensor 3P Connector With Torque Specifications
    G03688950Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (D) and clips (E).
  4. Remove the EVAP canister assembly (E).
  5. Remove the EVAP canister bracket (A).
    NOTE: The canister filter remains on the bracket.

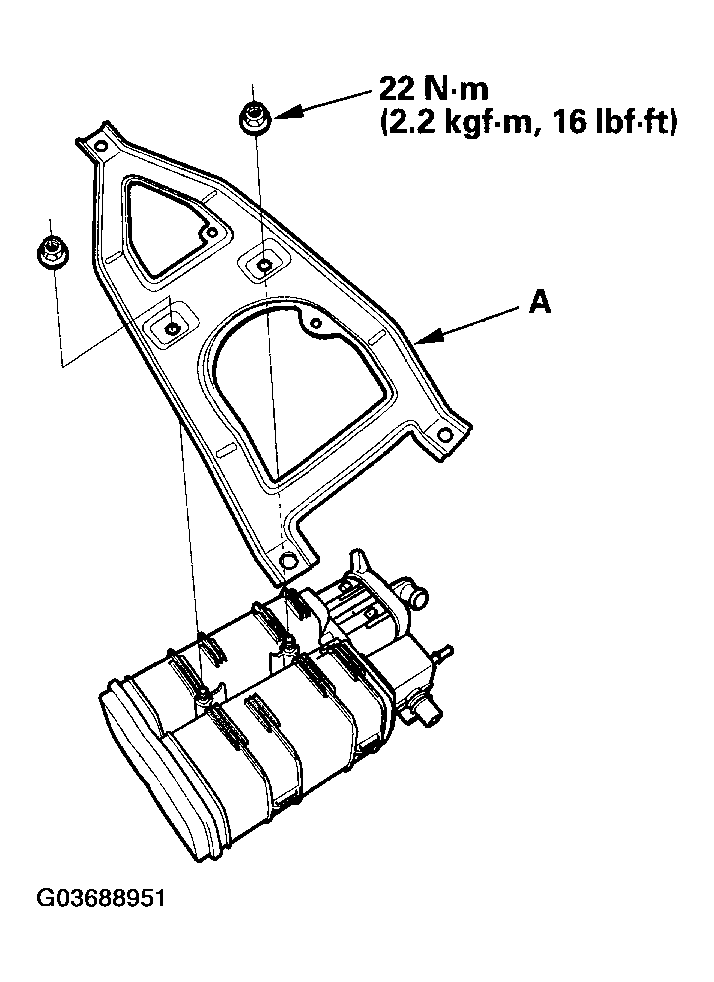

    Fig 3: Removing EVAP Canister Bracket With Torque Specifications
    G03688951Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the canister in the reverse order of removal.
