APP Sensor Replacement

APP Sensor Replacement

1. Remove the throttle cable cover.
2. Remove the throttle cable.

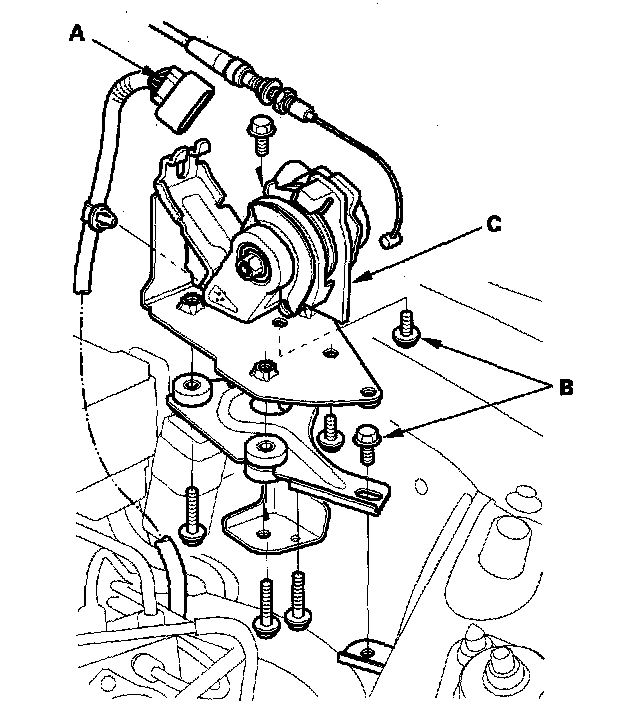

3. Disconnect the accelerator pedal position (APP) sensor 6P connector (A).
4. Remove the bolts (B), and the APP sensor (C).
5. Install the sensor in the reverse order of removal.
