A/F Sensor Replacement

A/F Sensor Replacement

Special Tools Required
O2 sensor socket wrench. Snap-on YA8875, SP Tools 93750, or equivalent, commercially available

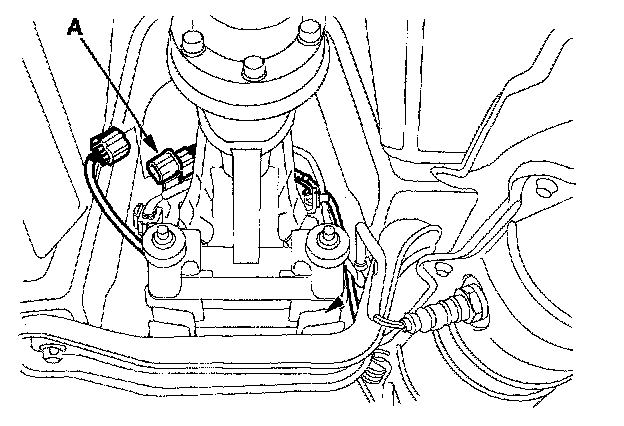

1. Disconnect the A/F sensor (Sensor 1) 4P connector (A).

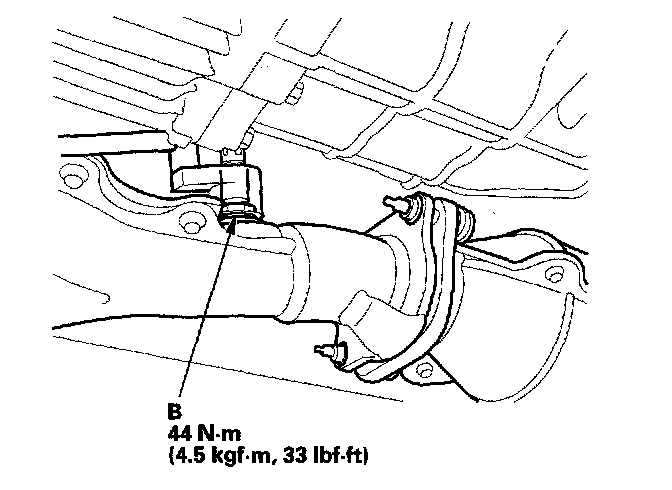

2. Remove the A/F sensor (Sensor 1) (B).
3. Install the A/F sensor (Sensor Din the reverse order of removal.
