Service Specifications

Clutch Specifications

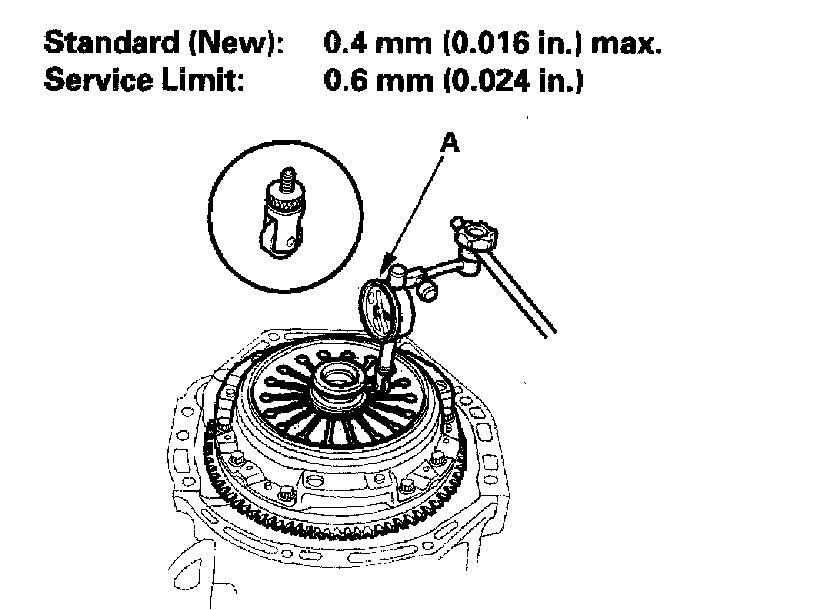

Height-variation of the diaphragm spring fingers

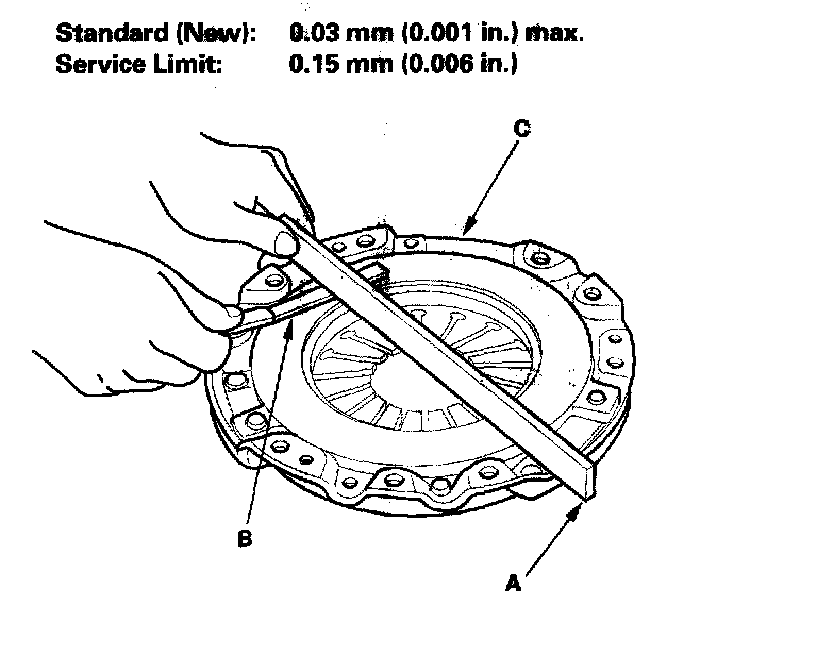

Pressure plate warpage

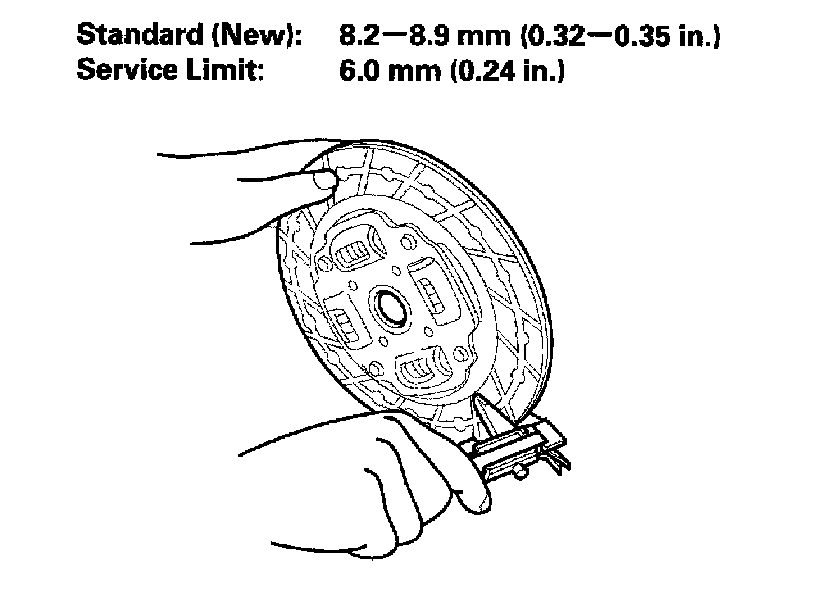

Clutch disc thickness

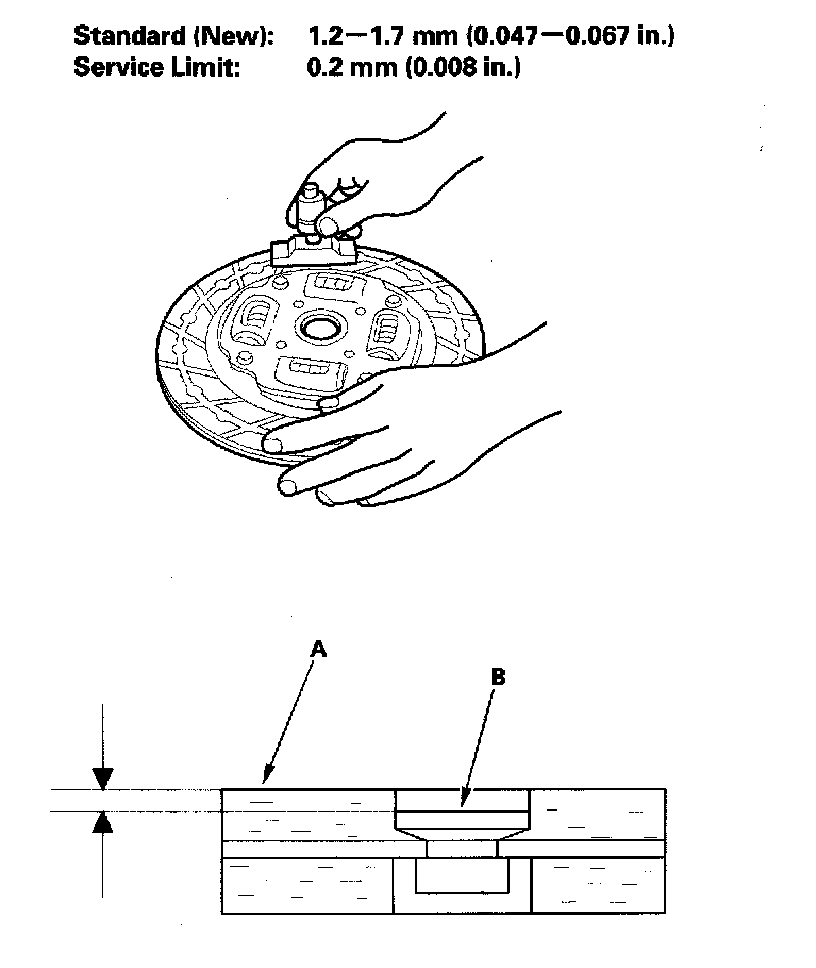

Clutch disc rivet depth

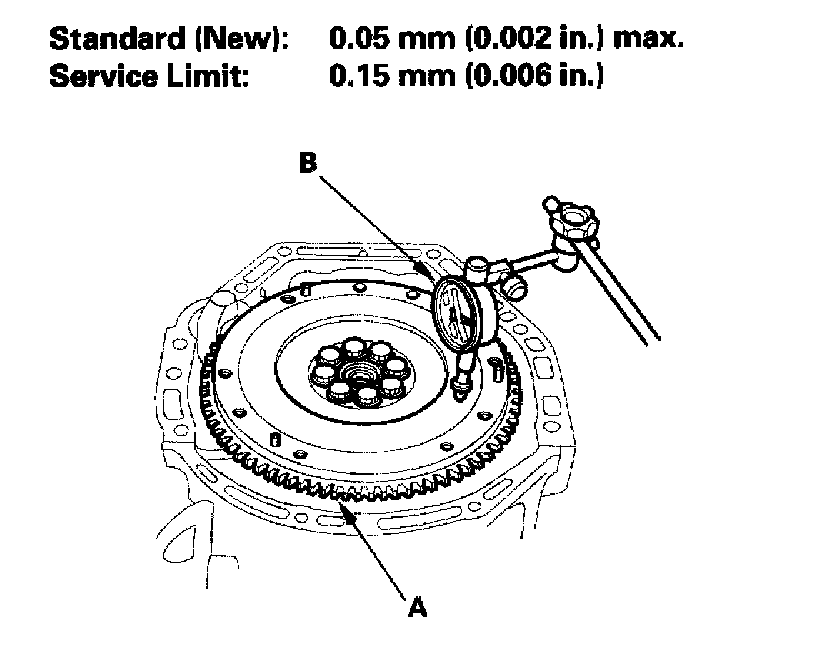

Flywheel runout

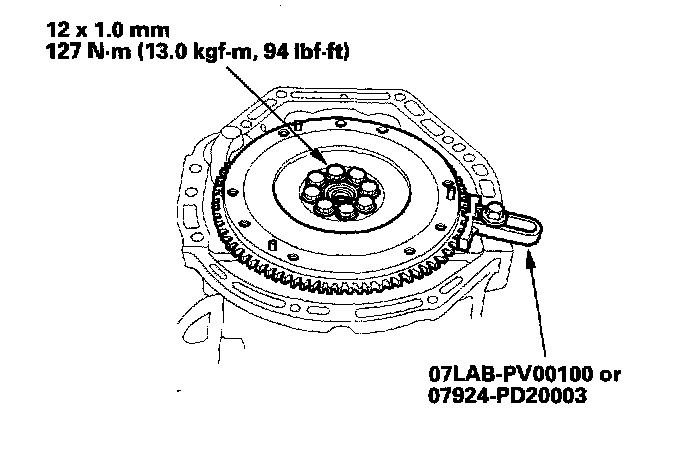

Torque the flywheel mounting bolts in a crisscross pattern in several steps

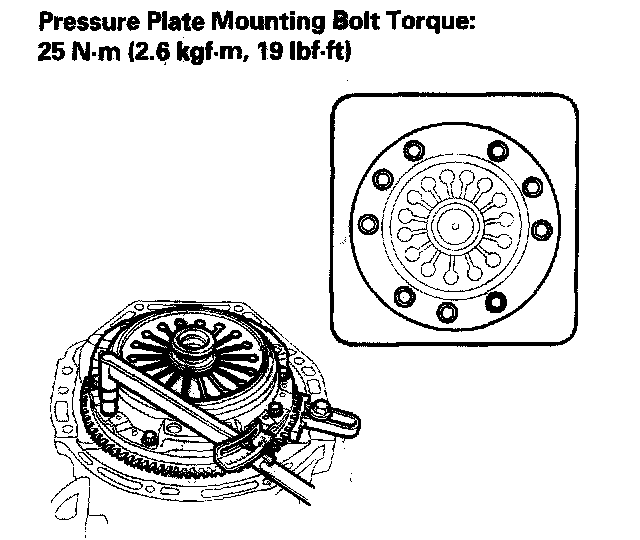

Torque the mounting bolts in a crisscross pattern, tighten the bolts in several steps to prevent warping the diaphragm spring.
