Intake Manifold

Intake Manifold

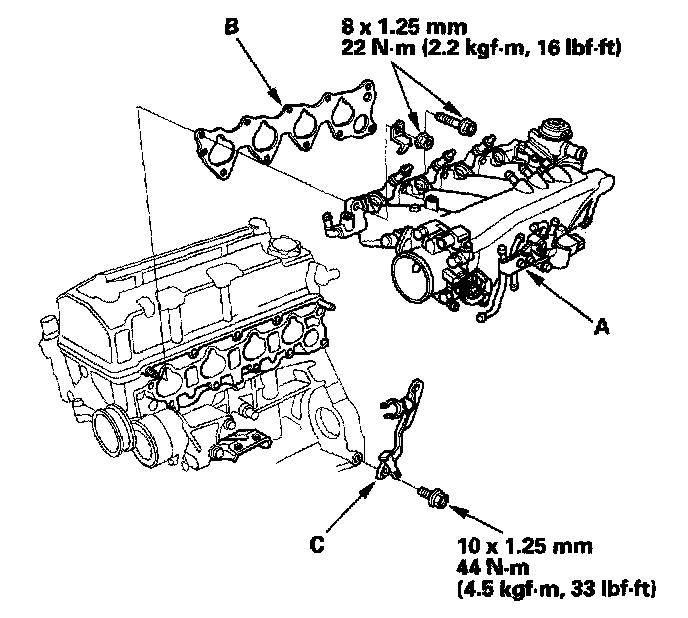

Install the intake manifold (A) with a new gasket (B), then install the intake manifold stay.
