Component Location Index

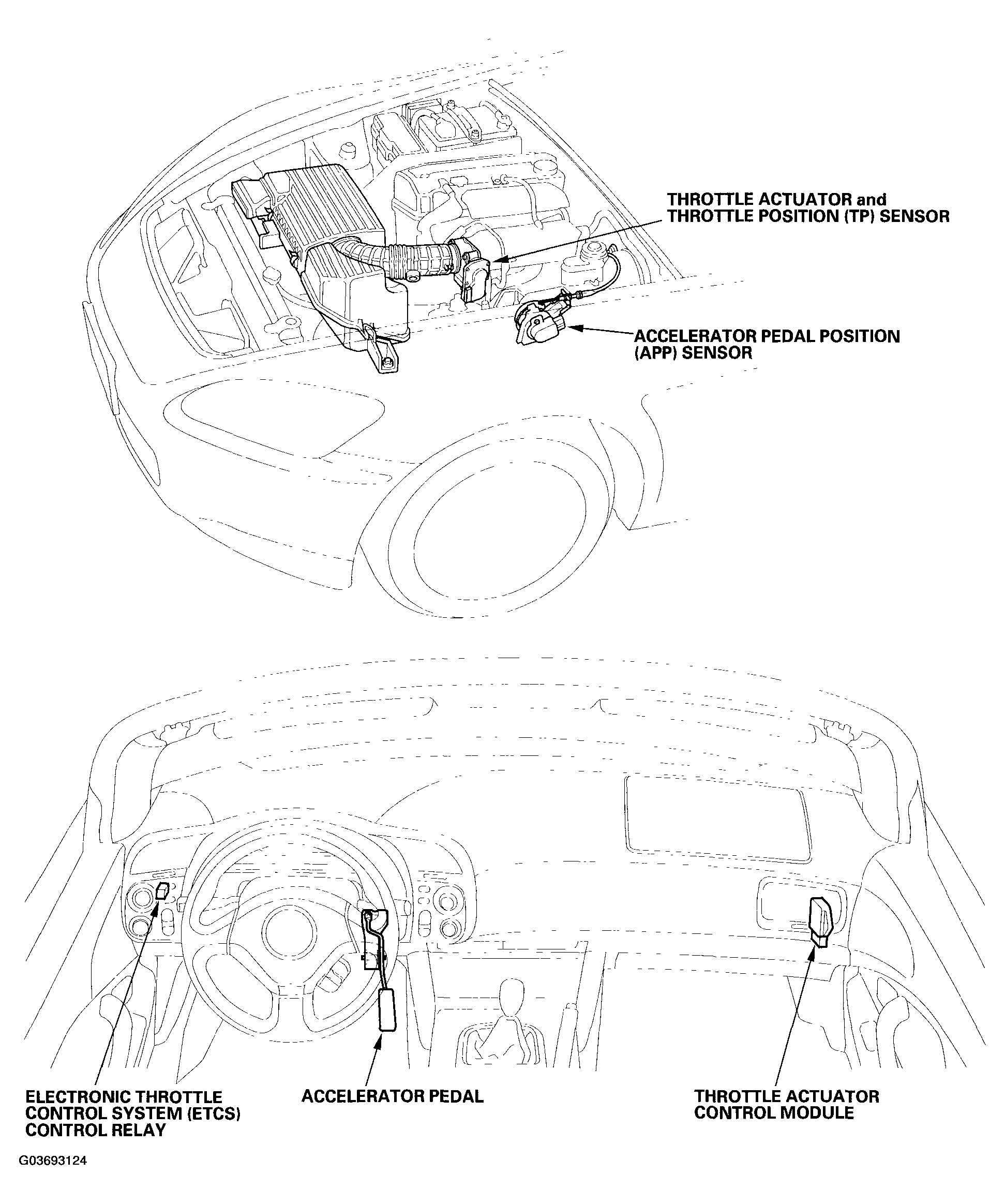

Fig 1: Identifying Electronic Throttle Control System Replacement Components
G03693124Courtesy of AMERICAN HONDA MOTOR CO., INC.
