Throttle Actuator Control Module Replacement

  1. Remove the passenger's dashboard lower cover (see PASSENGER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Push the tab (A), and disconnect the throttle actuator control module 16P connector (B).

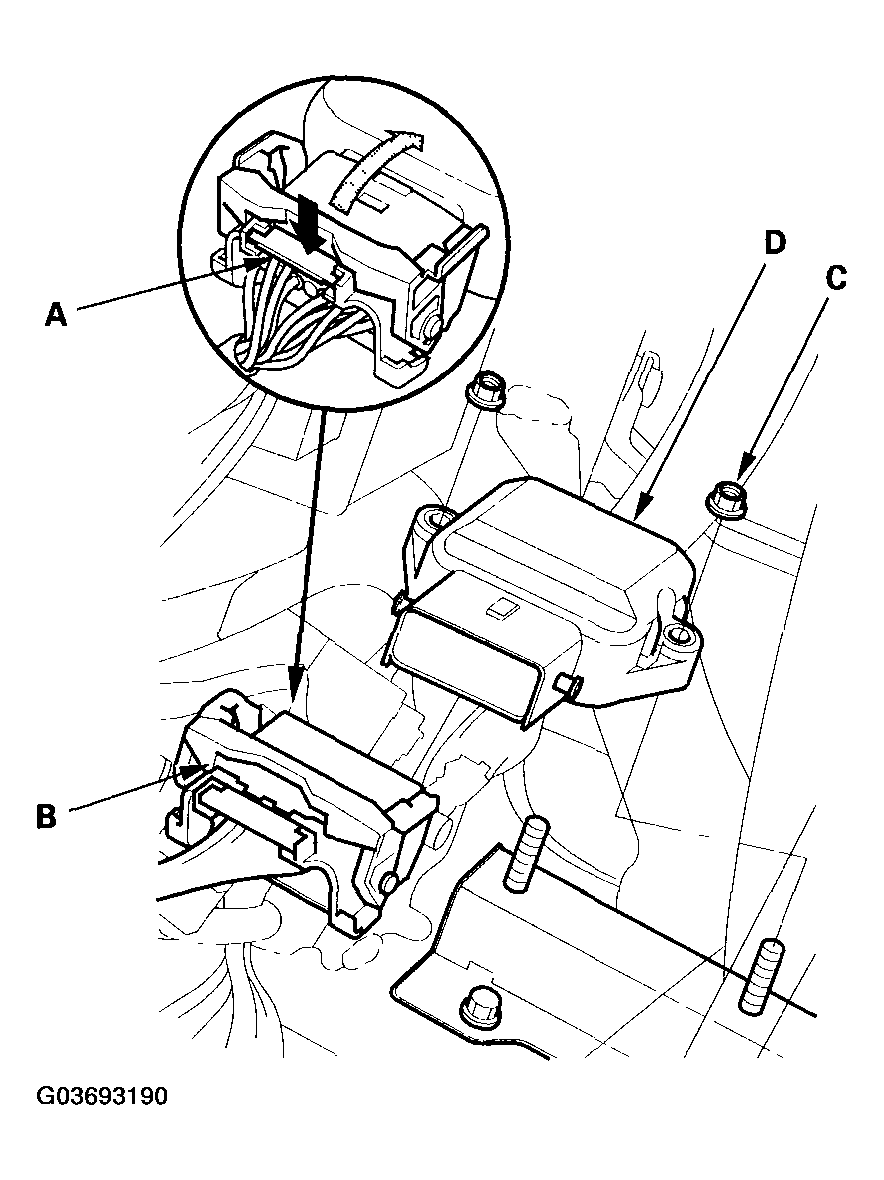

    Fig 1: Removing Nuts & Throttle Actuator Control Module
    G03693190Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the nuts (C), and the throttle actuator control module (D).
  4. Install the control module in the reverse order of removal.
