Rocker Arm Oil Pressure Switch (VTEC Oil Pressure Switch) Removal/Installation

Disconnect the rocker arm oil pressure switch (VTEC oil pressure switch) 2P connector (A).

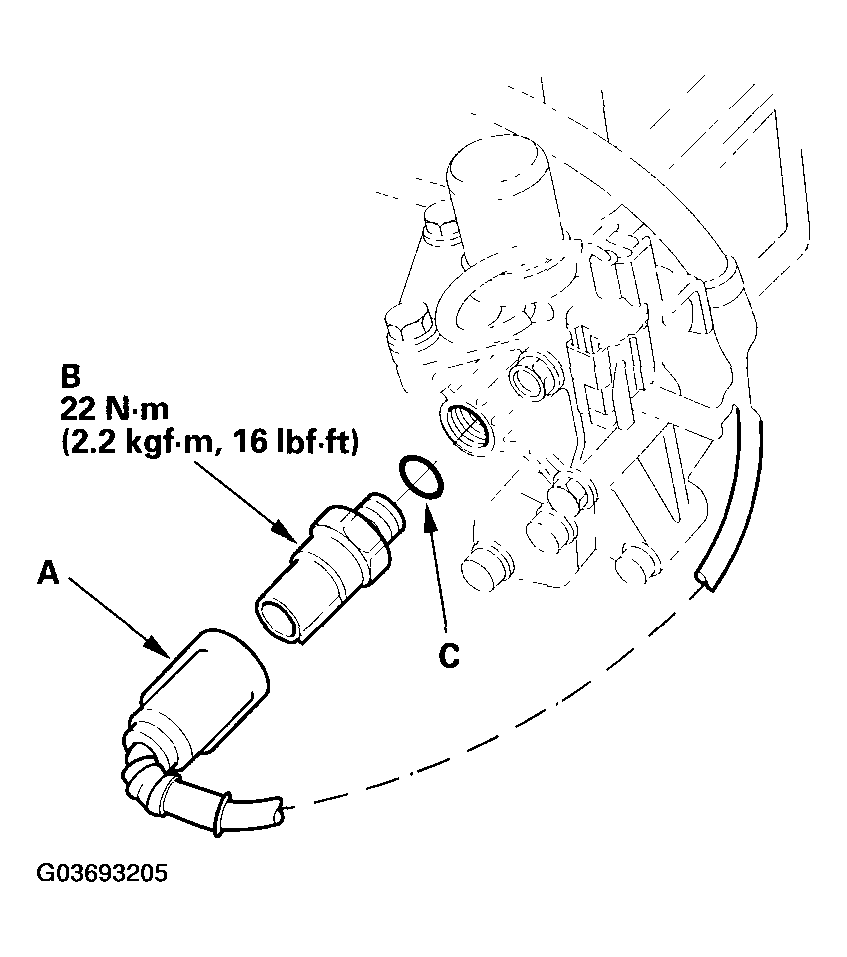

Fig 1: Disconnecting Rocker Arm Oil Pressure Switch 2P Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rocker arm oil pressure switch (VTEC oil pressure switch) (B).
Install the rocker arm oil pressure switch (VTEC oil pressure switch) in the reverse order of removal with a new O-ring (C).
