Splash Shield Replacement

Splash Shield Replacement

NOTE: Take care not to scratch the body.

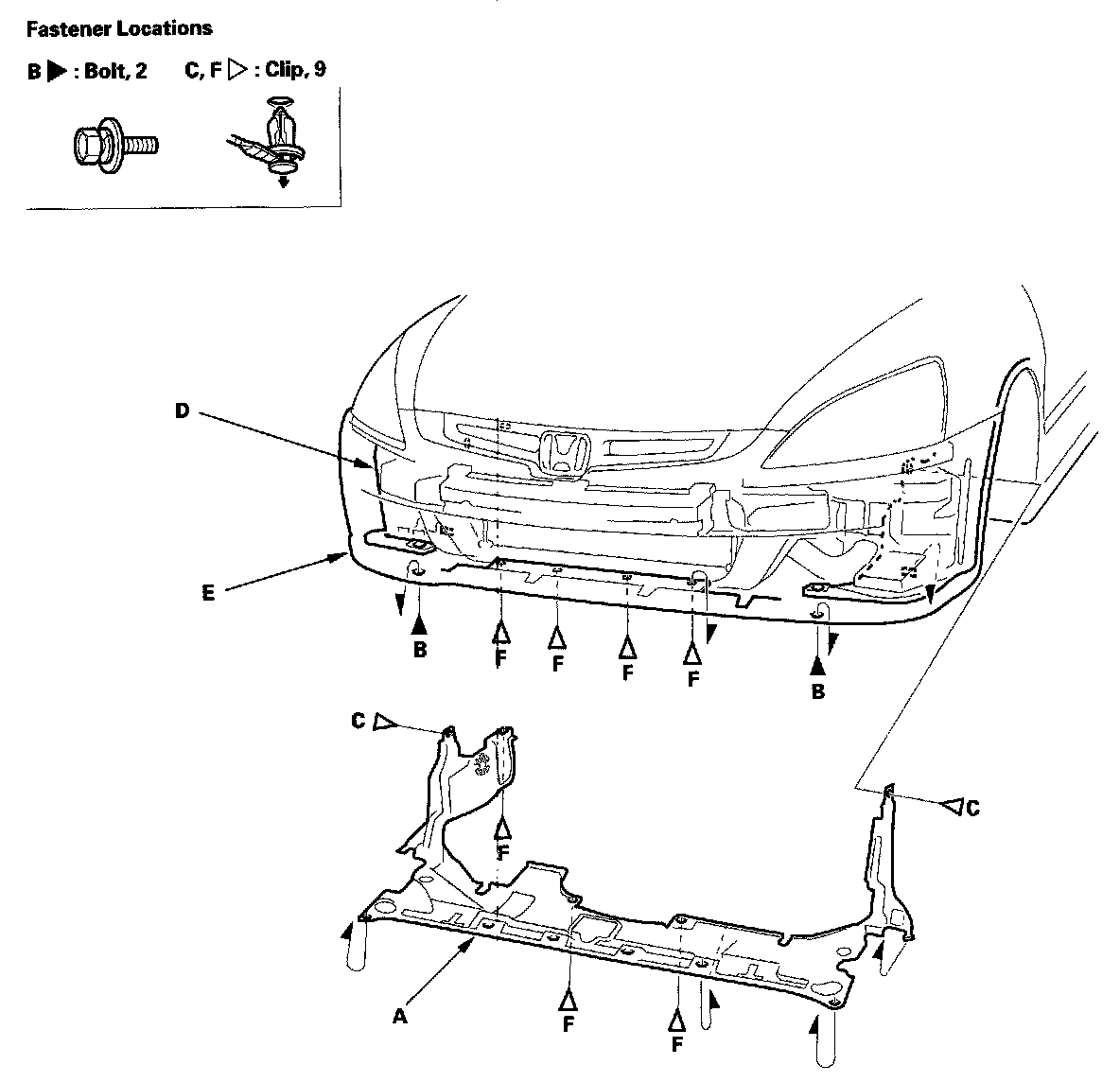

1. Remove the splash shield (A).
1. From both wheel arches, remove the bolts (B) and clips (C) securing the front inner fender (D) and splash shield to the body.
2.. From under the front bumper (E), remove the clips (F).
3. Pull the splash shield out.

2. Install the splash shield in the reverse order of removal, and check if the clip is damaged or stress-whitened, and if necessary, replace it with new one.
