Hatch Lock Actuator Test

Hatch Lock Actuator Test

1. Remove the hatch trim panel.

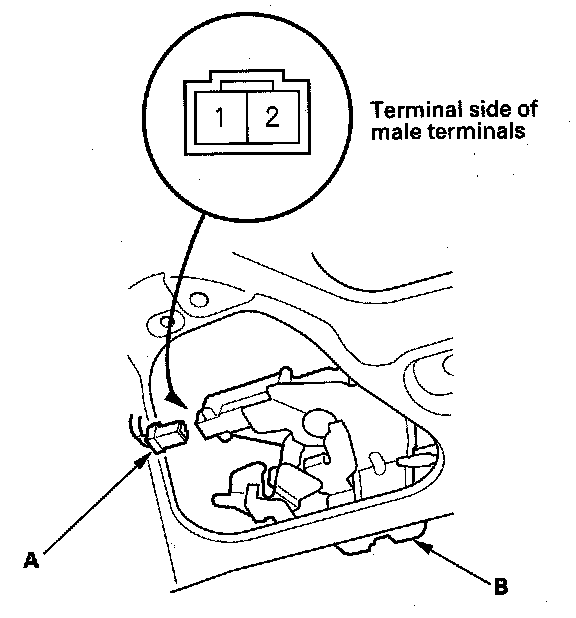

2. Disconnect the 2P connector (A) from the actuator (B).

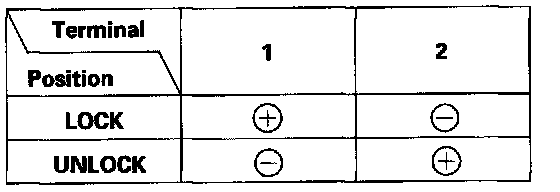

3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
4. If the actuator does not operate as specified, replace it.
