Alarm Module, (Vehicle Antitheft)

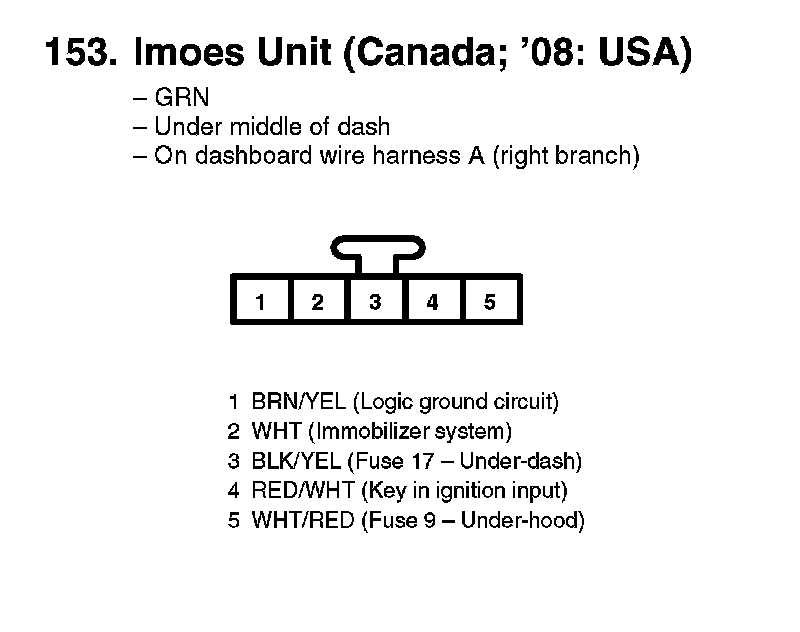

153. Imoes Unit (Canada; '08: USA):

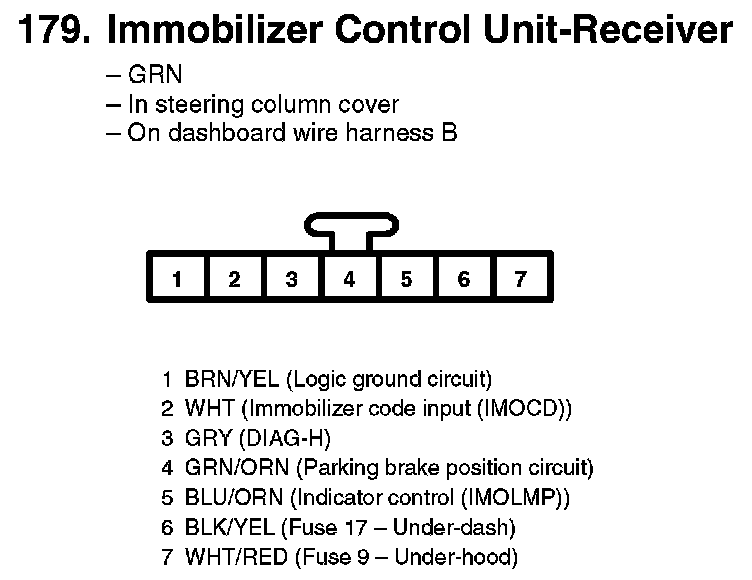

179. Immobilizer Control Unit-Receiver:

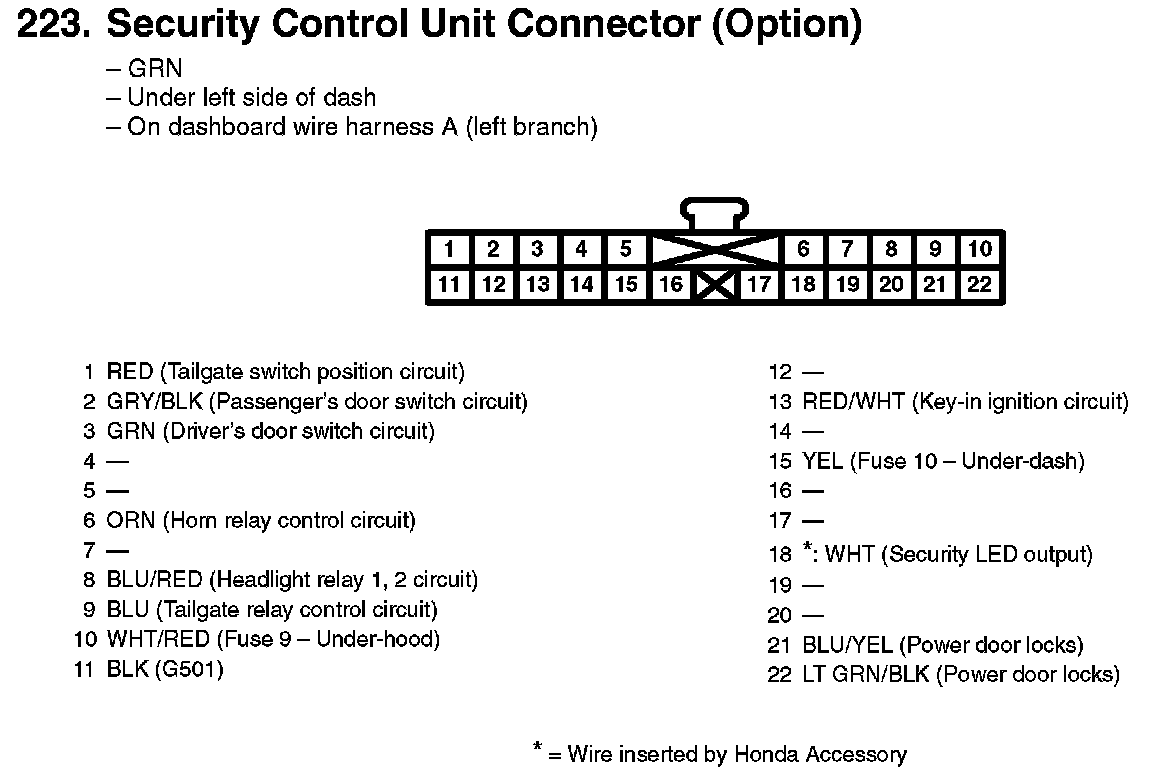

223. Security Control Unit Connector (Option):
