Impact Sensor

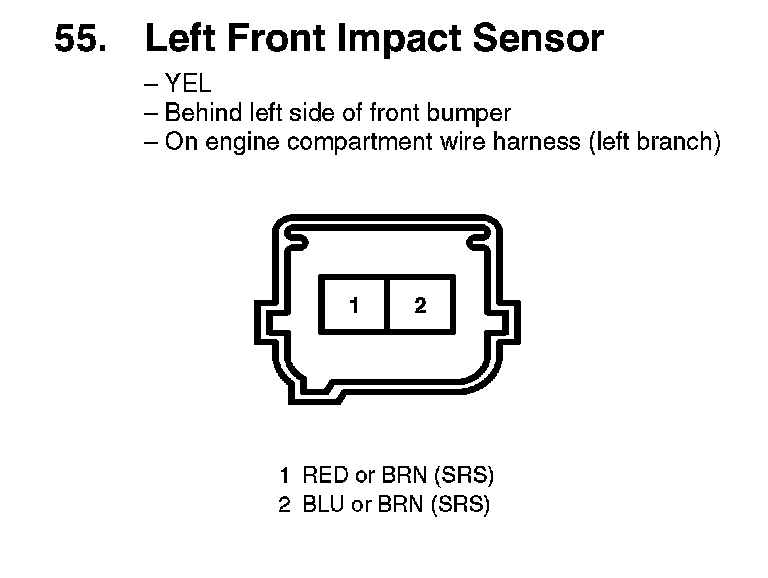

55. Left Front Impact Sensor:

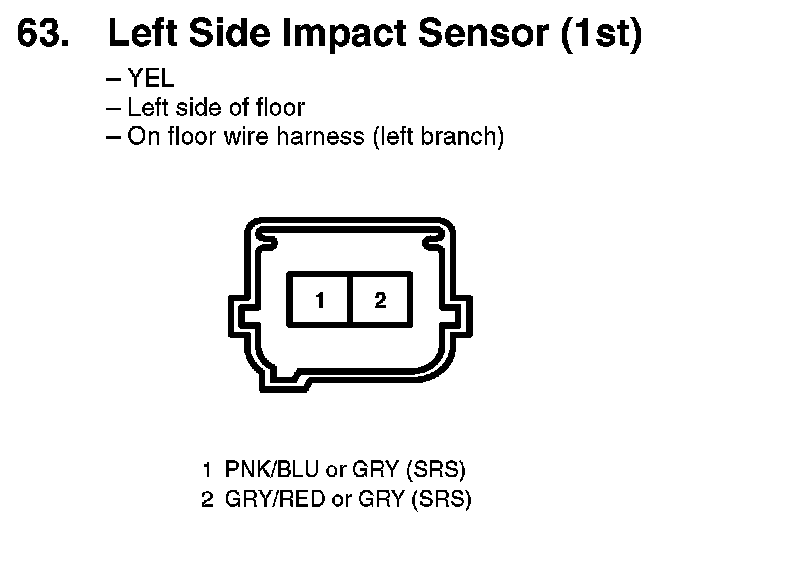

63. Left Side Impact Sensor (1st):

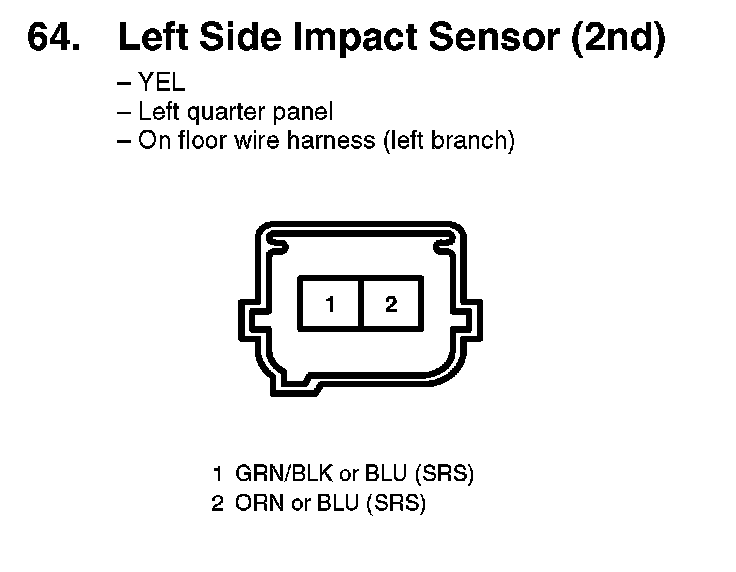

64. Left Side Impact Sensor (2nd):

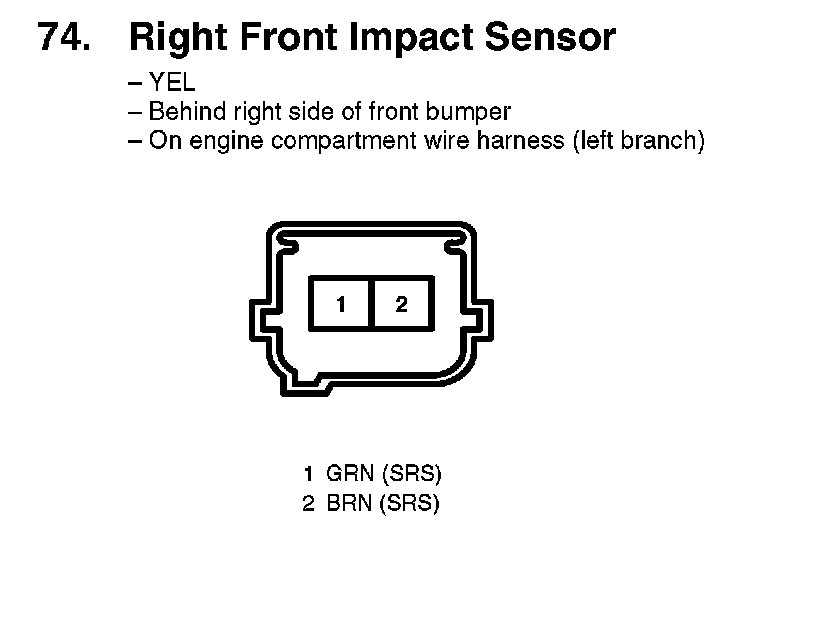

74. Right Front Impact Sensor:

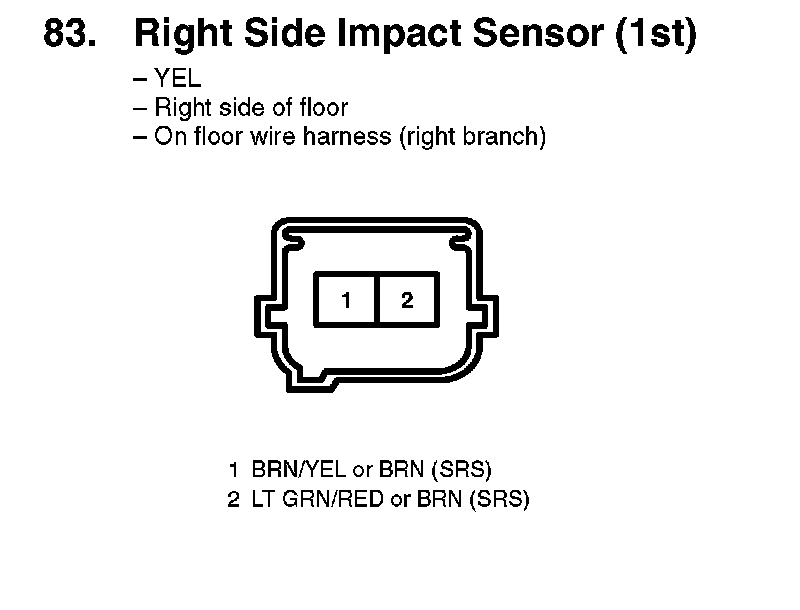

83. Right Side Impact Sensor (1st):

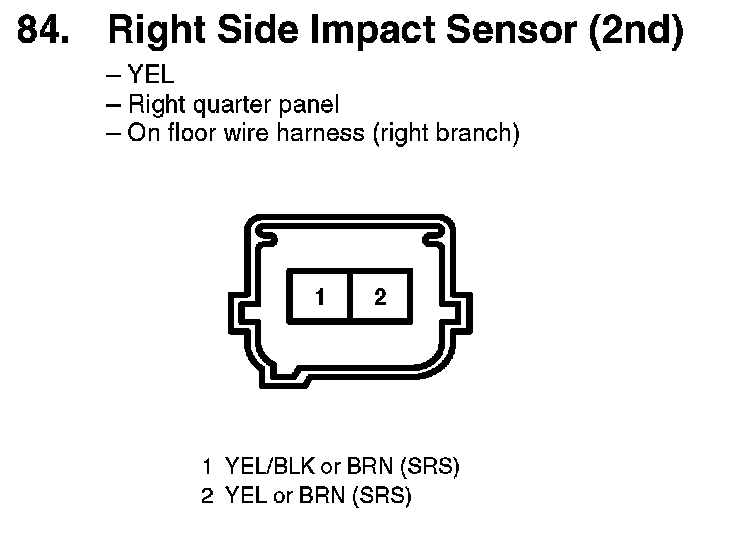

84. Right Side Impact Sensor (2nd):
