Seat Occupant Sensor

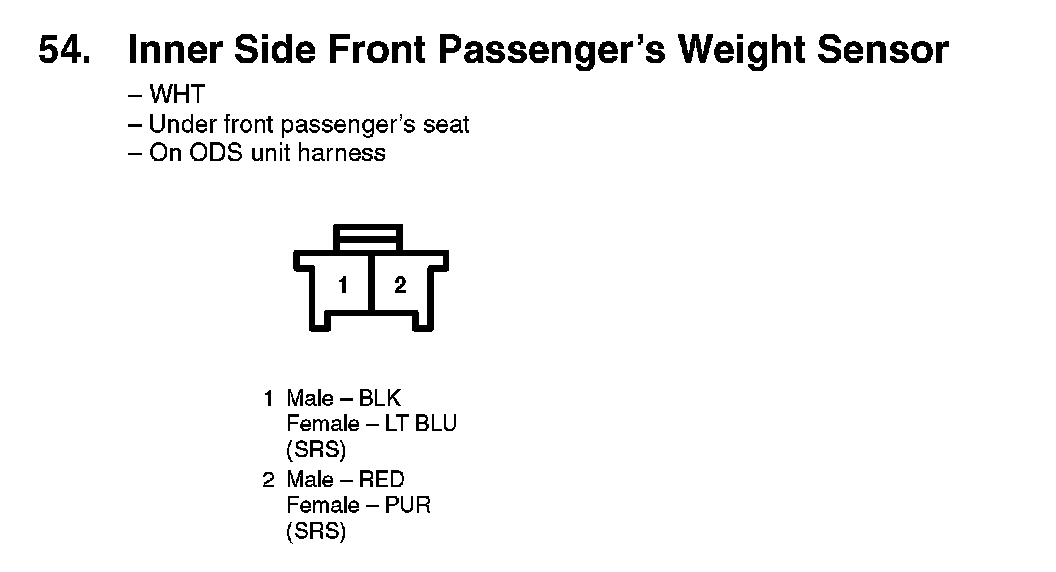

54. Inner Side Front Passenger's Weight Sensor:

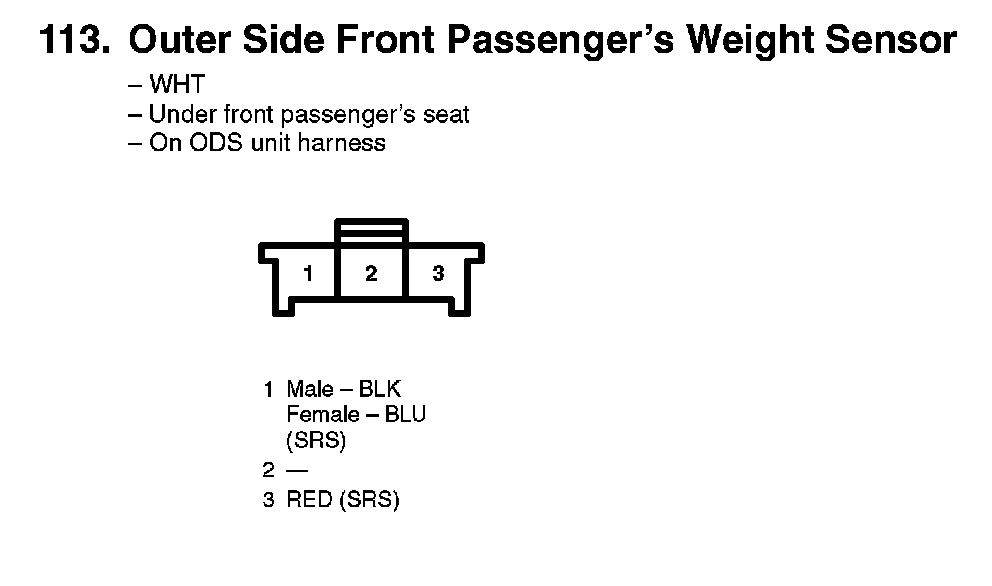

113. Outer Side Front Passenger's Weight Sensor:
